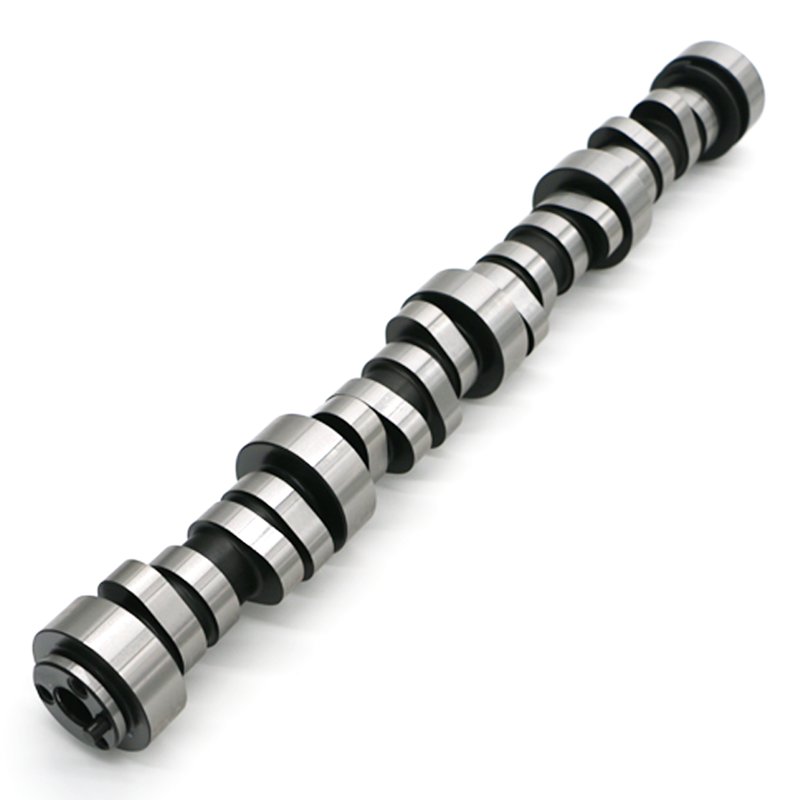

The Texas Speed Cleetus McFarland Bald Eagle LS3 Boost Camshaft is the rectangular-port version of the grind Cleetus McFarland runs in Leroy, his C5 Corvette. Texas Speed recommends it for supercharged 6.0L and 6.2L LS engines with rectangular-port heads, and notes it can also be ordered for naturally aspirated setups where a little more chop is wanted.
At 229/242 duration, .600" lift, a 115 degree lobe separation angle and 111 degree intake centerline, Texas Speed describes the Bald Eagle as easy to tune with a nice lope at idle and estimates a gain of 80 or more horsepower. Upgraded valve springs are required, with the TSP dual spring kit recommended, and automatics need a 2,800 rpm or higher stall converter. The cam is supplied only on a 3-bolt core, so single-bolt engines need a 3-bolt upper timing sprocket and ARP cam bolt kit, and any factory DOD/AFM and VVT must be removed.
Specifications
- Duration at .050": 229/242
- Valve lift: .600"/.600"
- Lobe separation angle: 115 degrees
- Intake centerline: 111 degrees
- Engines: 6.0L and 6.2L LS with rectangular-port cylinder heads
- Application: Supercharged (can also be ordered for naturally aspirated use)
- Recommended compression ratio: 10.5:1 or higher
- Recommended valve springs: TSP/PAC .660" dual valve springs (upgraded springs required)
- Aftermarket stall converter required: Yes, 2,800 rpm or higher
- Upgraded rear gear required: No
- Operating range: 2,000 to 6,800 rpm
- Estimated power increase: 80+ horsepower
- Cam core: 3-bolt only
- Vehicle usage: Street performance, mid-range
- Chop level: Mild chop
Note: This camshaft is only supplied on a 3-bolt cam core. Engines that came with a single-bolt camshaft need a 3-bolt upper timing sprocket and ARP cam bolt kit, which Texas Speed offers separately.
Note: Factory DOD/AFM and VVT must be removed to run this camshaft.
Vehicle Applications
Engine families covered per Texas Speed: 6.0L and 6.2L LS with rectangular-port cylinder heads (LS3, L99, L92 and related 6.0L rectangular-port engines).
Chevrolet Camaro
- 2010 Chevrolet Camaro
- 2011 Chevrolet Camaro
- 2012 Chevrolet Camaro
- 2013 Chevrolet Camaro
- 2014 Chevrolet Camaro
- 2015 Chevrolet Camaro
Chevrolet Corvette
- 2008 Chevrolet Corvette
- 2009 Chevrolet Corvette
- 2010 Chevrolet Corvette
- 2011 Chevrolet Corvette
- 2012 Chevrolet Corvette
- 2013 Chevrolet Corvette
Cadillac CTS
- 2009 Cadillac CTS
- 2010 Cadillac CTS
- 2011 Cadillac CTS
- 2012 Cadillac CTS
- 2013 Cadillac CTS
- 2014 Cadillac CTS
- 2015 Cadillac CTS
Cadillac CTS-V
- 2009 Cadillac CTS-V
- 2010 Cadillac CTS-V
- 2011 Cadillac CTS-V
- 2012 Cadillac CTS-V
- 2013 Cadillac CTS-V
- 2014 Cadillac CTS-V
- 2015 Cadillac CTS-V
Cadillac Escalade
- 2008 Cadillac Escalade
- 2009 Cadillac Escalade
- 2010 Cadillac Escalade
- 2011 Cadillac Escalade
- 2012 Cadillac Escalade
- 2013 Cadillac Escalade
- 2014 Cadillac Escalade
Pontiac G8
- 2008 Pontiac G8
- 2009 Pontiac G8
GMC Sierra 1500
- 2007 GMC Sierra 1500
- 2008 GMC Sierra 1500
- 2009 GMC Sierra 1500
- 2010 GMC Sierra 1500
- 2011 GMC Sierra 1500
- 2012 GMC Sierra 1500
- 2013 GMC Sierra 1500
GMC Sierra 2500
- 2007 GMC Sierra 2500
- 2009 GMC Sierra 2500
- 2010 GMC Sierra 2500
- 2011 GMC Sierra 2500
- 2012 GMC Sierra 2500
- 2013 GMC Sierra 2500
- 2014 GMC Sierra 2500
- 2015 GMC Sierra 2500
- 2016 GMC Sierra 2500
- 2017 GMC Sierra 2500
- 2018 GMC Sierra 2500
- 2019 GMC Sierra 2500
GMC Sierra 3500
- 2009 GMC Sierra 3500
- 2010 GMC Sierra 3500
- 2011 GMC Sierra 3500
- 2012 GMC Sierra 3500
- 2013 GMC Sierra 3500
- 2014 GMC Sierra 3500
- 2015 GMC Sierra 3500
- 2016 GMC Sierra 3500
- 2017 GMC Sierra 3500
- 2018 GMC Sierra 3500
- 2019 GMC Sierra 3500
Chevrolet Silverado 1500
- 2007 Chevrolet Silverado 1500
- 2008 Chevrolet Silverado 1500
- 2009 Chevrolet Silverado 1500
- 2010 Chevrolet Silverado 1500
- 2011 Chevrolet Silverado 1500
- 2012 Chevrolet Silverado 1500
- 2013 Chevrolet Silverado 1500
Chevrolet Silverado 2500
- 2007 Chevrolet Silverado 2500
- 2008 Chevrolet Silverado 2500
- 2009 Chevrolet Silverado 2500
- 2010 Chevrolet Silverado 2500
- 2011 Chevrolet Silverado 2500
- 2012 Chevrolet Silverado 2500
- 2013 Chevrolet Silverado 2500
- 2014 Chevrolet Silverado 2500
- 2015 Chevrolet Silverado 2500
- 2016 Chevrolet Silverado 2500
- 2017 Chevrolet Silverado 2500
- 2018 Chevrolet Silverado 2500
- 2019 Chevrolet Silverado 2500
Chevrolet Silverado 3500
- 2007 Chevrolet Silverado 3500
- 2008 Chevrolet Silverado 3500
- 2009 Chevrolet Silverado 3500
- 2010 Chevrolet Silverado 3500
- 2011 Chevrolet Silverado 3500
- 2012 Chevrolet Silverado 3500
- 2013 Chevrolet Silverado 3500
- 2014 Chevrolet Silverado 3500
- 2015 Chevrolet Silverado 3500
- 2016 Chevrolet Silverado 3500
- 2017 Chevrolet Silverado 3500
- 2018 Chevrolet Silverado 3500
- 2019 Chevrolet Silverado 3500
Chevrolet SS
- 2014 Chevrolet SS
- 2015 Chevrolet SS
- 2016 Chevrolet SS
- 2017 Chevrolet SS
Chevrolet Suburban
- 2007 Chevrolet Suburban
- 2008 Chevrolet Suburban
- 2009 Chevrolet Suburban
- 2010 Chevrolet Suburban
- 2011 Chevrolet Suburban
- 2012 Chevrolet Suburban
- 2013 Chevrolet Suburban
- 2014 Chevrolet Suburban
- 2016 Chevrolet Suburban
- 2017 Chevrolet Suburban
- 2018 Chevrolet Suburban
- 2019 Chevrolet Suburban
Chevrolet Suburban 2500
- 2007 Chevrolet Suburban 2500
Chevrolet Tahoe
- 2008 Chevrolet Tahoe
- 2009 Chevrolet Tahoe
- 2010 Chevrolet Tahoe
- 2011 Chevrolet Tahoe
- 2012 Chevrolet Tahoe
- 2013 Chevrolet Tahoe
- 2014 Chevrolet Tahoe
GMC Yukon
- 2007 GMC Yukon
- 2008 GMC Yukon
- 2009 GMC Yukon
- 2010 GMC Yukon
- 2011 GMC Yukon
- 2012 GMC Yukon
- 2013 GMC Yukon
- 2014 GMC Yukon
Vehicle applications reflect the fitment published by Texas Speed & Performance for this part number. Confirm your engine and cylinder head configuration before ordering.
FAQ
What engines does the Texas Speed Bald Eagle LS3 Boost Cam fit?
It is ground for 6.0L and 6.2L LS engines with rectangular-port cylinder heads, such as the LS3, L99 and L92, in supercharged applications. Texas Speed also sells a cathedral-port Bald Eagle for LS1, LS2 and LS6 engines.
Does the Bald Eagle LS3 cam fit a single-bolt camshaft engine?
Only with a conversion. The Bald Eagle is supplied on a 3-bolt core, so an engine that came with a single-bolt camshaft needs a 3-bolt upper timing sprocket and an ARP cam bolt kit, both of which Texas Speed offers.
Do I need to delete DOD/AFM and VVT to run this cam?
Yes. Texas Speed states that factory DOD/AFM and VVT must be removed before installing the Bald Eagle LS3 Boost Camshaft on engines that were equipped with them, such as the L99 and many 6.2L truck engines.
What valve springs and converter does the Bald Eagle LS3 cam require?
Upgraded springs are required, and Texas Speed recommends its TSP dual spring kit with PAC Racing polished dual springs, titanium retainers, seats and seals. Automatic transmission vehicles need at least a 2,800 rpm stall converter.
How much power does the Bald Eagle LS3 Boost Cam add?
Texas Speed estimates a gain of 80 or more horsepower from the Bald Eagle LS3 camshaft. Actual gains depend on the supercharger, boost level, cylinder heads and tuning.
Can the Bald Eagle LS3 cam be daily driven?
Texas Speed says the cam can be daily driven without issue once properly tuned, with a nice lope at idle and an operating range of 2,000 to 6,800 rpm.
