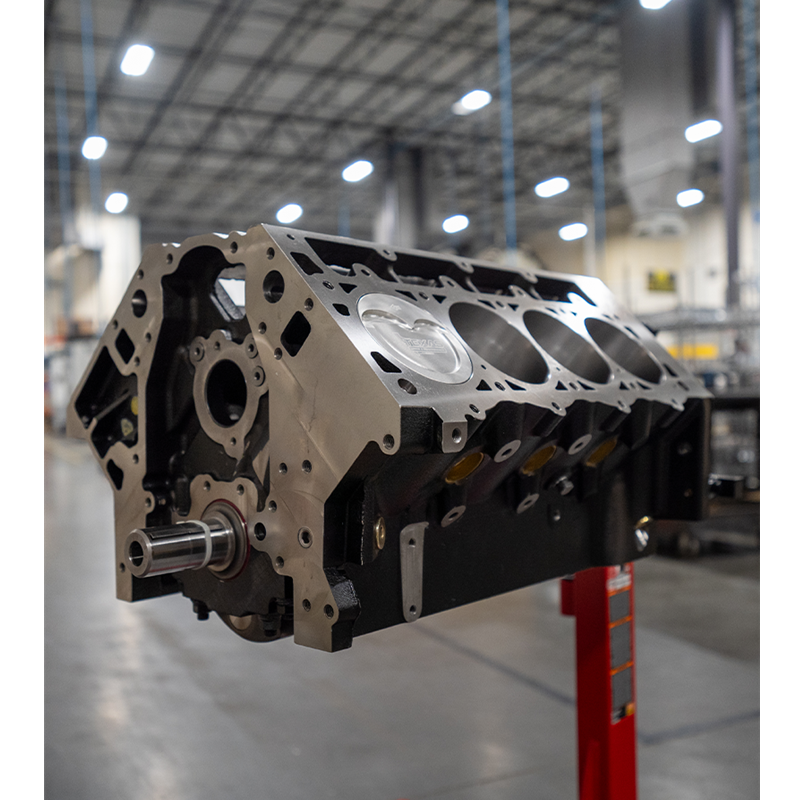

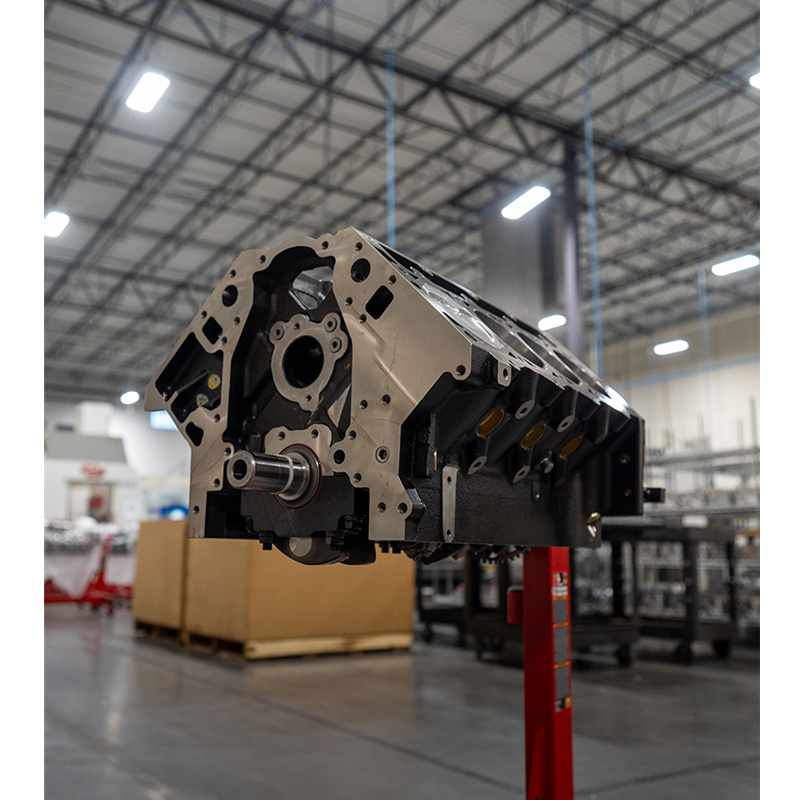

The Texas Speed Reaper 434ci Dart LS Next Iron Short Block is built for racers and enthusiasts who need a large displacement LS foundation rated for 1600 horsepower. It uses a Dart LS Next iron block with a 6-bolt Texas Speed billet 8-counterweight 4.00" stroke crankshaft carrying a 58x reluctor, and the finished short block is assembled by Texas Speed with the same balancing and blueprinting process used on its other Brawler series engines.
The rotating assembly pairs the billet crankshaft with Callies Compstar Extreme forged 4340 steel 6.125" H-beam connecting rods and TSP/Wiseco 4.155" forged pistons with a -11cc dish and upgraded wrist pins, while an ARP main stud kit secures the bottom end. The -11cc dish suits boosted and nitrous combinations as well as high-compression naturally aspirated builds depending on the cylinder heads chosen. The short block ships with 12 quarts of break-in oil on a Texas Speed LS engine stand inside a shipping crate.
Specifications
- Displacement: 434 cubic inches

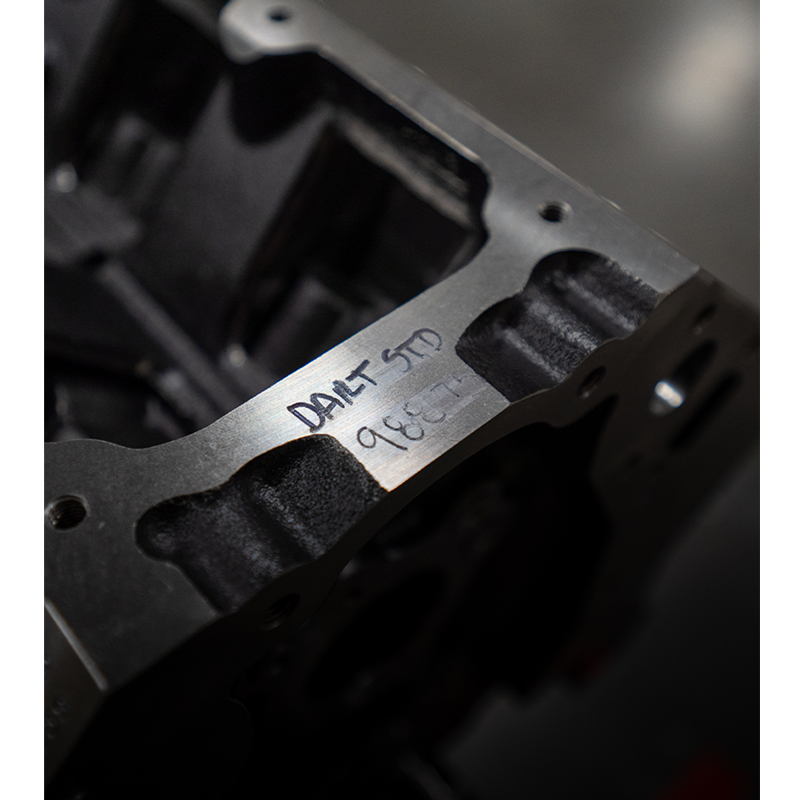

- Block: Dart LS Next iron block
- Crankshaft: Texas Speed billet 8-counterweight 4.00" stroke, 6-bolt, 58x reluctor
- Connecting rods: Callies Compstar Extreme forged 4340 steel 6.125" H-beam

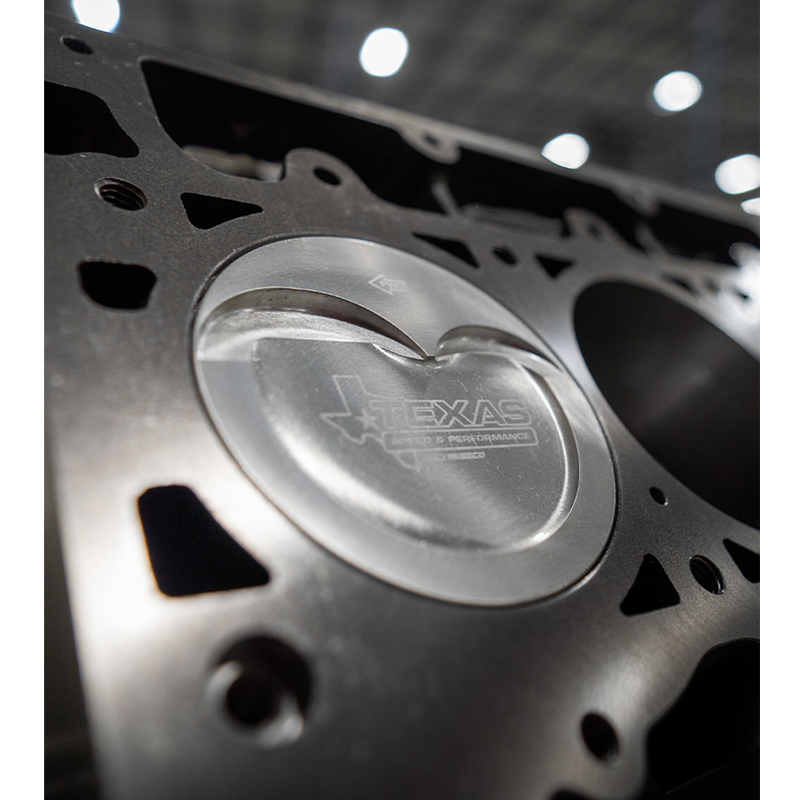

- Pistons: TSP/Wiseco forged 4.155", -11cc dish, upgraded wrist pins
- Main fasteners: ARP main stud kit
- Power rating: 1600 HP capable per Texas Speed
- Assembly: Assembled by Texas Speed
Kit Includes
- Reaper 434ci Dart LS Next short block (TSP-434SB-DART-STD)
- Royal Purple 10W-30 break-in oil, 12 quarts (RYP-11487)
- Texas Speed LS engine stand with 3/8" drilled holes for shipping (TSP-Cradle)
- Shipping crate (TSP-SDCrateSB)
Vehicle Applications
Engine family: Gen III and Gen IV LS architecture on a Dart LS Next iron block. Vehicle list reflects the LS applications published by Texas Speed; the 58x reluctor matches Gen IV engine management.
Chevrolet Camaro
- 1998 Chevrolet Camaro
- 1999 Chevrolet Camaro
- 2000 Chevrolet Camaro
- 2001 Chevrolet Camaro
- 2002 Chevrolet Camaro
- 2010 Chevrolet Camaro
- 2011 Chevrolet Camaro
- 2012 Chevrolet Camaro
- 2013 Chevrolet Camaro
- 2014 Chevrolet Camaro
- 2015 Chevrolet Camaro
Chevrolet Corvette
- 1997 Chevrolet Corvette
- 1998 Chevrolet Corvette
- 1999 Chevrolet Corvette
- 2000 Chevrolet Corvette
- 2001 Chevrolet Corvette
- 2002 Chevrolet Corvette
- 2003 Chevrolet Corvette
- 2004 Chevrolet Corvette
- 2005 Chevrolet Corvette
- 2006 Chevrolet Corvette
- 2007 Chevrolet Corvette
- 2008 Chevrolet Corvette
- 2009 Chevrolet Corvette
- 2010 Chevrolet Corvette
- 2011 Chevrolet Corvette
- 2012 Chevrolet Corvette
- 2013 Chevrolet Corvette
Cadillac CTS-V
- 2004 Cadillac CTS-V
- 2005 Cadillac CTS-V
- 2006 Cadillac CTS-V
- 2007 Cadillac CTS-V
- 2008 Cadillac CTS-V
- 2009 Cadillac CTS-V
- 2010 Cadillac CTS-V
- 2011 Cadillac CTS-V
- 2012 Cadillac CTS-V
- 2013 Cadillac CTS-V
- 2014 Cadillac CTS-V
- 2015 Cadillac CTS-V
Cadillac Escalade
- 2002 Cadillac Escalade
- 2003 Cadillac Escalade
- 2004 Cadillac Escalade
- 2005 Cadillac Escalade
- 2006 Cadillac Escalade
- 2008 Cadillac Escalade
- 2009 Cadillac Escalade
- 2010 Cadillac Escalade
- 2011 Cadillac Escalade
- 2012 Cadillac Escalade
- 2013 Cadillac Escalade
- 2014 Cadillac Escalade
Pontiac Firebird
- 1998 Pontiac Firebird
- 1999 Pontiac Firebird
- 2000 Pontiac Firebird
- 2001 Pontiac Firebird
- 2002 Pontiac Firebird
Pontiac G8
- 2008 Pontiac G8
- 2009 Pontiac G8
Pontiac GTO
- 2004 Pontiac GTO
- 2005 Pontiac GTO
- 2006 Pontiac GTO
GMC Sierra 1500
- 1999 GMC Sierra 1500
- 2000 GMC Sierra 1500
- 2001 GMC Sierra 1500
- 2002 GMC Sierra 1500
- 2003 GMC Sierra 1500
- 2004 GMC Sierra 1500
- 2005 GMC Sierra 1500
- 2006 GMC Sierra 1500
- 2007 GMC Sierra 1500
- 2008 GMC Sierra 1500
- 2009 GMC Sierra 1500
- 2010 GMC Sierra 1500
- 2011 GMC Sierra 1500
- 2012 GMC Sierra 1500
- 2013 GMC Sierra 1500
GMC Sierra 2500
- 2001 GMC Sierra 2500
- 2002 GMC Sierra 2500
- 2003 GMC Sierra 2500
- 2004 GMC Sierra 2500
- 2005 GMC Sierra 2500
- 2006 GMC Sierra 2500
- 2007 GMC Sierra 2500
- 2009 GMC Sierra 2500
- 2010 GMC Sierra 2500
- 2011 GMC Sierra 2500
- 2012 GMC Sierra 2500
- 2013 GMC Sierra 2500
- 2014 GMC Sierra 2500
GMC Sierra 3500
- 2001 GMC Sierra 3500
- 2002 GMC Sierra 3500
- 2003 GMC Sierra 3500
- 2004 GMC Sierra 3500
- 2005 GMC Sierra 3500
- 2006 GMC Sierra 3500
- 2009 GMC Sierra 3500
- 2010 GMC Sierra 3500
- 2011 GMC Sierra 3500
- 2012 GMC Sierra 3500
- 2013 GMC Sierra 3500
- 2014 GMC Sierra 3500
Chevrolet Silverado 1500
- 1999 Chevrolet Silverado 1500
- 2000 Chevrolet Silverado 1500
- 2001 Chevrolet Silverado 1500
- 2002 Chevrolet Silverado 1500
- 2003 Chevrolet Silverado 1500
- 2004 Chevrolet Silverado 1500
- 2005 Chevrolet Silverado 1500
- 2006 Chevrolet Silverado 1500
- 2007 Chevrolet Silverado 1500
- 2008 Chevrolet Silverado 1500
- 2009 Chevrolet Silverado 1500
- 2010 Chevrolet Silverado 1500
- 2011 Chevrolet Silverado 1500
- 2012 Chevrolet Silverado 1500
- 2013 Chevrolet Silverado 1500
Chevrolet Silverado 2500
- 1999 Chevrolet Silverado 2500
- 2000 Chevrolet Silverado 2500
- 2001 Chevrolet Silverado 2500
- 2002 Chevrolet Silverado 2500
- 2003 Chevrolet Silverado 2500
- 2004 Chevrolet Silverado 2500
- 2005 Chevrolet Silverado 2500
- 2006 Chevrolet Silverado 2500
- 2007 Chevrolet Silverado 2500
- 2008 Chevrolet Silverado 2500
- 2009 Chevrolet Silverado 2500
- 2010 Chevrolet Silverado 2500
- 2011 Chevrolet Silverado 2500
- 2012 Chevrolet Silverado 2500
- 2013 Chevrolet Silverado 2500
- 2014 Chevrolet Silverado 2500
Chevrolet Silverado 3500
- 2001 Chevrolet Silverado 3500
- 2002 Chevrolet Silverado 3500
- 2003 Chevrolet Silverado 3500
- 2004 Chevrolet Silverado 3500
- 2005 Chevrolet Silverado 3500
- 2006 Chevrolet Silverado 3500
- 2007 Chevrolet Silverado 3500
- 2008 Chevrolet Silverado 3500
- 2009 Chevrolet Silverado 3500
- 2010 Chevrolet Silverado 3500
- 2011 Chevrolet Silverado 3500
- 2012 Chevrolet Silverado 3500
- 2013 Chevrolet Silverado 3500
- 2014 Chevrolet Silverado 3500
Chevrolet SS
- 2014 Chevrolet SS
- 2015 Chevrolet SS
- 2016 Chevrolet SS
- 2017 Chevrolet SS
Chevrolet Suburban
- 2000 Chevrolet Suburban
- 2001 Chevrolet Suburban
- 2002 Chevrolet Suburban
- 2003 Chevrolet Suburban
- 2004 Chevrolet Suburban
- 2005 Chevrolet Suburban
- 2006 Chevrolet Suburban
- 2007 Chevrolet Suburban
- 2008 Chevrolet Suburban
- 2009 Chevrolet Suburban
- 2010 Chevrolet Suburban
- 2011 Chevrolet Suburban
- 2012 Chevrolet Suburban
- 2013 Chevrolet Suburban
- 2014 Chevrolet Suburban
Chevrolet Tahoe
- 2000 Chevrolet Tahoe
- 2001 Chevrolet Tahoe
- 2002 Chevrolet Tahoe
- 2003 Chevrolet Tahoe
- 2004 Chevrolet Tahoe
- 2005 Chevrolet Tahoe
- 2006 Chevrolet Tahoe
- 2007 Chevrolet Tahoe
- 2008 Chevrolet Tahoe
- 2009 Chevrolet Tahoe
- 2010 Chevrolet Tahoe
- 2011 Chevrolet Tahoe
- 2012 Chevrolet Tahoe
- 2013 Chevrolet Tahoe
- 2014 Chevrolet Tahoe
Chevrolet Trailblazer SS
- 2006 Chevrolet Trailblazer SS
- 2007 Chevrolet Trailblazer SS
- 2008 Chevrolet Trailblazer SS
- 2009 Chevrolet Trailblazer SS
Pontiac Trans Am
- 1998 Pontiac Trans Am
- 1999 Pontiac Trans Am
- 2000 Pontiac Trans Am
- 2001 Pontiac Trans Am
- 2002 Pontiac Trans Am
GMC Yukon
- 2000 GMC Yukon
- 2001 GMC Yukon
- 2002 GMC Yukon
- 2003 GMC Yukon
- 2004 GMC Yukon
- 2005 GMC Yukon
- 2006 GMC Yukon
- 2007 GMC Yukon
- 2008 GMC Yukon
- 2009 GMC Yukon
- 2010 GMC Yukon
- 2011 GMC Yukon
- 2012 GMC Yukon
- 2013 GMC Yukon
- 2014 GMC Yukon
Vehicle applications reflect the fitment published by Texas Speed & Performance for this part number. Confirm your engine and cylinder head configuration before ordering.
FAQ
What is included in the Texas Speed Reaper 434ci short block?
The Reaper includes a Dart LS Next iron block, a Texas Speed billet 8-counterweight 4.00" stroke 6-bolt crankshaft with 58x reluctor, Callies Compstar Extreme 6.125" H-beam rods, TSP/Wiseco 4.155" -11cc forged pistons with upgraded wrist pins and an ARP main stud kit, assembled by Texas Speed, plus 12 quarts of break-in oil, an LS engine stand and a crate.
Which vehicles can use the Reaper 434 Dart LS short block?
It is an LS-architecture short block, so it suits Gen III and Gen IV LS applications such as 1998 to 2015 Camaro, 1997 to 2013 Corvette, GTO, G8, CTS-V, Chevrolet SS and 1999 to 2014 GM trucks and SUVs, as well as LS swap projects. The crankshaft uses a 58x reluctor, so confirm engine management compatibility.
How much power is the Reaper 434 short block rated for?
Texas Speed rates the Reaper 434ci Dart short block as 1600 horsepower capable thanks to the Dart LS Next iron block, billet crankshaft, Callies Compstar Extreme rods, forged Wiseco pistons with upgraded pins and ARP main studs.
What crankshaft does the Reaper 434 use?
The Reaper uses a Texas Speed billet 8-counterweight crankshaft with a 4.00" stroke, a 6-bolt flywheel flange and a 58x reluctor wheel, which with the 4.155" bore produces 434 cubic inches.
Does the Reaper have a 24x or 58x reluctor wheel?
The Texas Speed billet crankshaft in the Reaper 434 is fitted with a 58x reluctor wheel, which matches Gen IV LS engine management. Buyers with 24x Gen III controllers should confirm crank signal compatibility before ordering.
Is the Reaper 434 short block assembled?
Yes. Texas Speed assembles the Reaper short block in-house and ships it with the ARP main studs installed, ready for cylinder heads, camshaft and the remaining top-end components.
