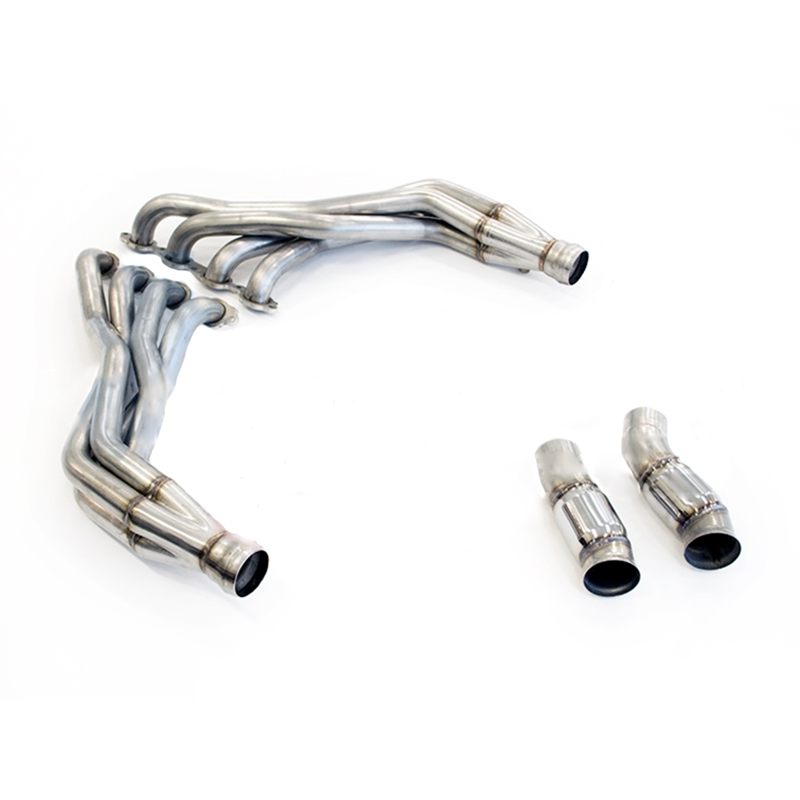

The Texas Speed 1-7/8" Long Tube Headers with Catted Connection Pipes is a header kit for the 2016 and newer Chevrolet Camaro SS that keeps catalytic converters in the system. The headers are 304 stainless steel with 2.0 mm wall tubing, mandrel bent on CNC benders, and finish in 3" merge-style collectors with welded O2 bungs. The catted connection pipes join the collectors to the rest of the exhaust.
Texas Speed supplies new GM exhaust manifold gaskets, exhaust clamps and a front O2 sensor extension harness with the kit, plus a button-head bolt for the third steering shaft bolt from the bottom to open up clearance at the steering shaft. The kit can be ordered with or without the TSP 6 mm tunnel plate spacer. Convertible models require additional modifications, and the connection pipes are not CARB legal.
Specifications
- Fitment: 2016 and newer Chevrolet Camaro SS
- Primary tube diameter: 1-7/8"
- Material: 304 stainless steel
- Tubing wall thickness: 2.0 mm
- Collector: 3" merge style with welded O2 bung
- Connection pipes: Catted connection pipes (not CARB legal)
- Gaskets and clamps: New GM exhaust manifold gaskets and exhaust clamps included
- O2 extensions: Front O2 sensor extension harness included (Texas Speed states only one is required)
- Steering shaft clearance: Button-head bolt included for the third steering shaft bolt from the bottom
- Tunnel plate spacer: TSP 6 mm tunnel plate spacer selected at ordering (with or without)
Kit Includes
- Texas Speed 1-7/8" 304 stainless steel long tube headers, 2016+ Camaro SS (TSP-SSG61782016)
- TSP 2016+ Camaro SS catted connection pipes (TSP-G6SSCATCONN)
- TSP exhaust manifold gaskets for 2014+ 5.3L/6.2L direct injection engines, qty 2 (TSP-7093)
- TSP C7 Corvette / 6th Gen Camaro front O2 extension, qty 2 (TSP-105654)
- 6th Gen Camaro steering shaft button-head bolt, 8x1.25x25 mm (TSP-13359-1)
- Exhaust clamps
- TSP 6 mm tunnel plate spacer (only when selected at ordering)
Ordering Options
Select the Tunnel Plate Spacer option when ordering: None, or With TSP 6 mm Tunnel Plate Spacer, which adds the TSP 6 mm tunnel plate spacer for 2016+ Camaro V8 made for use with Texas Speed headers and X-pipe.
Note: Not CARB legal. Not for sale or use in the state of California.
Note: Additional modifications are needed to fit convertible models.
Vehicle Applications
Texas Speed lists this kit for the 2016 and newer Camaro SS. Convertible models require additional modifications.
Chevrolet Camaro
- 2016 Chevrolet Camaro — SS
- 2017 Chevrolet Camaro — SS
- 2018 Chevrolet Camaro — SS
- 2019 Chevrolet Camaro — SS
- 2020 Chevrolet Camaro — SS
- 2021 Chevrolet Camaro — SS
- 2022 Chevrolet Camaro — SS
- 2023 Chevrolet Camaro — SS
- 2024 Chevrolet Camaro — SS
Vehicle applications reflect the fitment published by Texas Speed & Performance for this part number. Confirm your engine and cylinder head configuration before ordering.
Race Use Only. This product is intended for competition use on vehicles that are never operated on public roads. It is not legal for sale or use on pollution-controlled motor vehicles, and it is not CARB exempt. Installing or using this part on a vehicle driven on public roads may violate the federal Clean Air Act and state emissions laws.
FAQ
What vehicles do the Texas Speed 1-7/8" Camaro SS headers with catted connection pipes fit?
They fit the 2016 and newer Chevrolet Camaro SS. Texas Speed notes that convertible models need additional modifications for the system to fit.
What comes in this Texas Speed Camaro SS header kit?
The kit includes the 1-7/8" 304 stainless long tube headers, catted connection pipes, two new GM exhaust manifold gaskets, a front O2 sensor extension harness, exhaust clamps and a button-head steering shaft bolt. The 6 mm tunnel plate spacer is included only when that option is selected.
What does the tunnel plate spacer option do?
The TSP 6 mm tunnel plate spacer is made for 2016+ Camaro V8 models running Texas Speed headers and X-pipe. Choosing the With Spacer option adds it to the kit; choosing None ships the kit without it.
How is this kit different from the Texas Speed Camaro headers with catted X-pipe?
Both use the same 1-7/8" 304 stainless Texas Speed headers and hardware. This kit uses catted connection pipes, while TSP-G6304HX-CAT-178 pairs the headers with a full 3" catted X-pipe.
Why is a steering shaft bolt included with these headers?
The 2016+ Camaro steering shaft sits close to the header tubes. Texas Speed includes a button-head bolt for the third bolt from the bottom of the shaft so the lower head clears the headers.
Are these Camaro SS headers street legal?
No. The headers and catted connection pipes are sold for competition use only. They are not CARB legal, are not for sale or use in California and are not legal for use on pollution-controlled vehicles driven on public roads.
