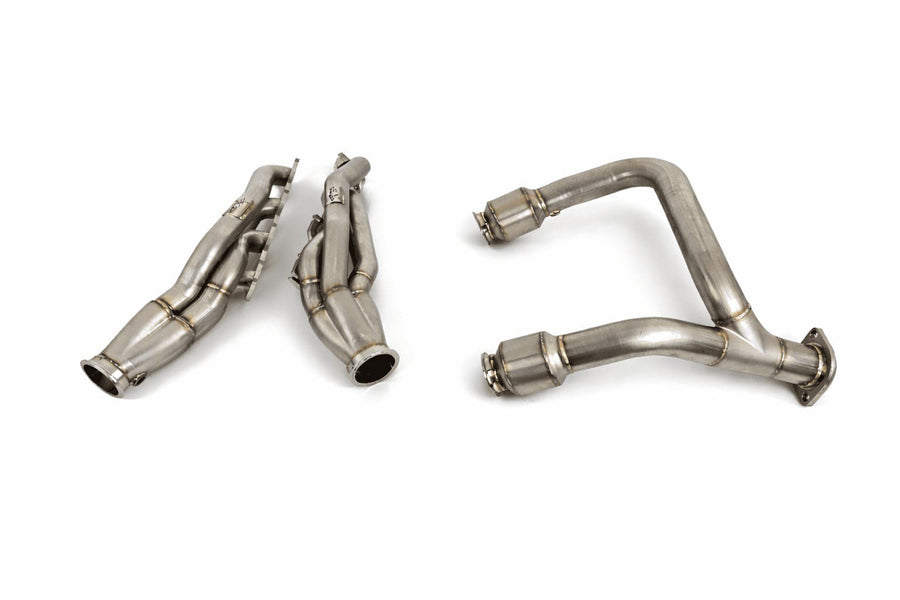

The Texas Speed 1-7/8" Long Tube Headers and Catted Y-Pipe Kit is a direct bolt-on exhaust upgrade for the 2019 to 2024 Ram 1500 with the 5.7L Hemi. Texas Speed designed the system to improve exhaust flow and support high-performance Hemi builds while keeping catalytic converters in the Y-pipe.
The headers and Y-pipe are TIG-welded 304 stainless steel. The headers use 1-7/8" primary tubes feeding 3" collectors with an 8 degree merge (plus or minus 1 degree), and the catted Y-pipe includes a flex section and transitions to 3.5" for the connection to the rest of the exhaust. Two V-band clamps and a spacer are included. Exhaust gaskets, header bolts and an O2 extension are offered as add-ons at ordering.
Specifications
- Fitment: 2019 to 2024 Ram 1500 with 5.7L Hemi
- Material: 304 stainless steel, TIG welded
- Primary tubes: 1-7/8"
- Collector: 3" with 8 degree merge (+/- 1 degree)
- Y-pipe: Catted, with flex section, transitions to 3.5"
- Clamps: Two V-band clamps included
- Installation: Designed as a direct bolt-on system
- Optional add-ons: 5.7L exhaust gaskets, Ram header bolts, single O2 extension (selected at ordering)
Kit Includes
- Driver-side 1-7/8" 304 stainless long tube header
- Passenger-side 1-7/8" 304 stainless long tube header
- Catted Y-pipe with flex section, 3.5" outlet
- V-band clamps, qty 2
- Spacer
- 5.7L exhaust gaskets, Ram header bolts and O2 extension (optional, selected at ordering)
Ordering Options
Three selections are made when ordering, each with an include or do-not-need choice. Exhaust Gaskets: 5.7L exhaust gaskets or do not need. Header Bolts: Ram header bolts or do not need. O2 Extensions: a single O2 extension or do not need.
Note: Verify compatibility with the vehicle's existing muffler or cat-back exhaust configuration before installation.
Vehicle Applications
Fits 2019 to 2024 Ram 1500 trucks with the 5.7L Hemi per Texas Speed.
Dodge Ram
- 2019 Dodge Ram — 1500 5.7L Hemi
- 2020 Dodge Ram — 1500 5.7L Hemi
- 2021 Dodge Ram — 1500 5.7L Hemi
- 2022 Dodge Ram — 1500 5.7L Hemi
- 2023 Dodge Ram — 1500 5.7L Hemi
- 2024 Dodge Ram — 1500 5.7L Hemi
Vehicle applications reflect the fitment published by Texas Speed & Performance for this part number. Confirm your engine and cylinder head configuration before ordering.
Race Use Only. This product is intended for competition use on vehicles that are never operated on public roads. It is not legal for sale or use on pollution-controlled motor vehicles, and it is not CARB exempt. Installing or using this part on a vehicle driven on public roads may violate the federal Clean Air Act and state emissions laws.
FAQ
What trucks does the Texas Speed Ram 1500 header and Y-pipe kit fit?
Texas Speed lists this kit for the 2019 to 2024 Ram 1500 with the 5.7L Hemi V8. Verify the truck's existing muffler or cat-back configuration before ordering.
What is included in the kit?
The kit includes the driver-side and passenger-side 1-7/8" long tube headers, a catted Y-pipe with a flex section, two V-band clamps and a spacer. Exhaust gaskets, header bolts and an O2 extension can be added at ordering.
What size is the Y-pipe outlet?
The Y-pipe transitions to 3.5" after the catalytic converters, so the downstream exhaust needs to accept a 3.5" connection or be adapted to it.
Is this a bolt-on installation?
Texas Speed describes the kit as a direct bolt-on system with V-band clamps joining the headers to the Y-pipe. Compatibility with the existing muffler or cat-back should still be checked before installation.
Are the Texas Speed Ram 1500 headers street legal?
No. These long tube headers and the catted Y-pipe are sold for competition use only. They are not CARB exempt and are not legal for use on pollution-controlled vehicles driven on public roads.
