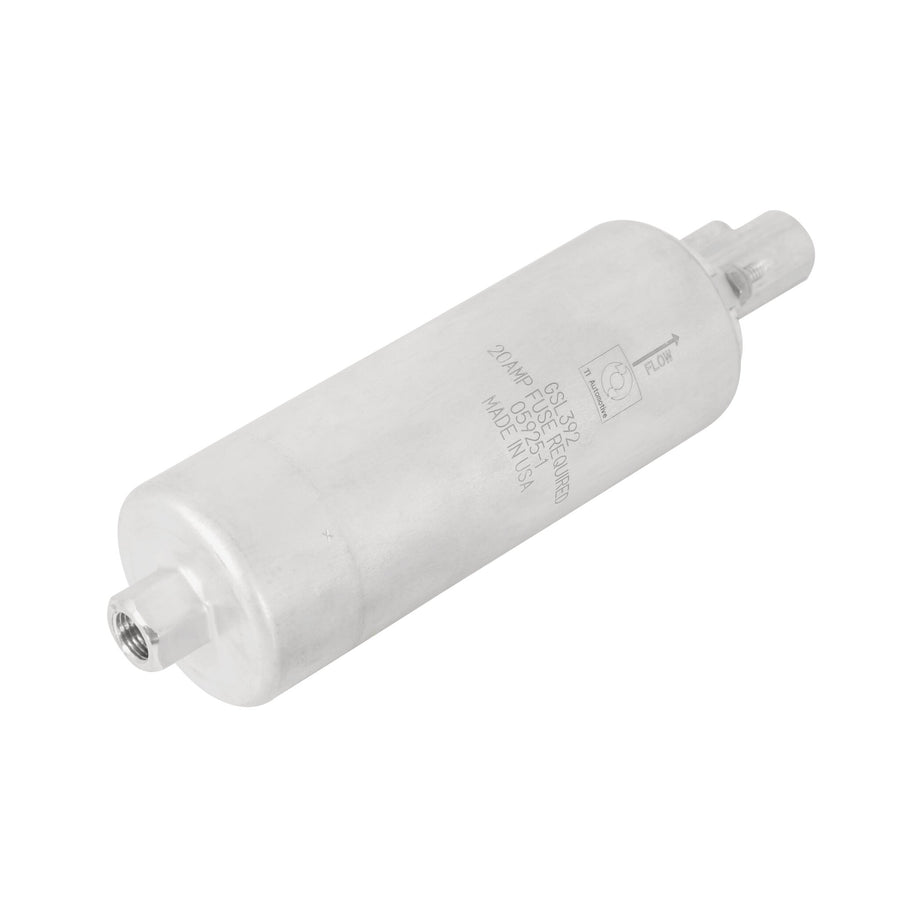

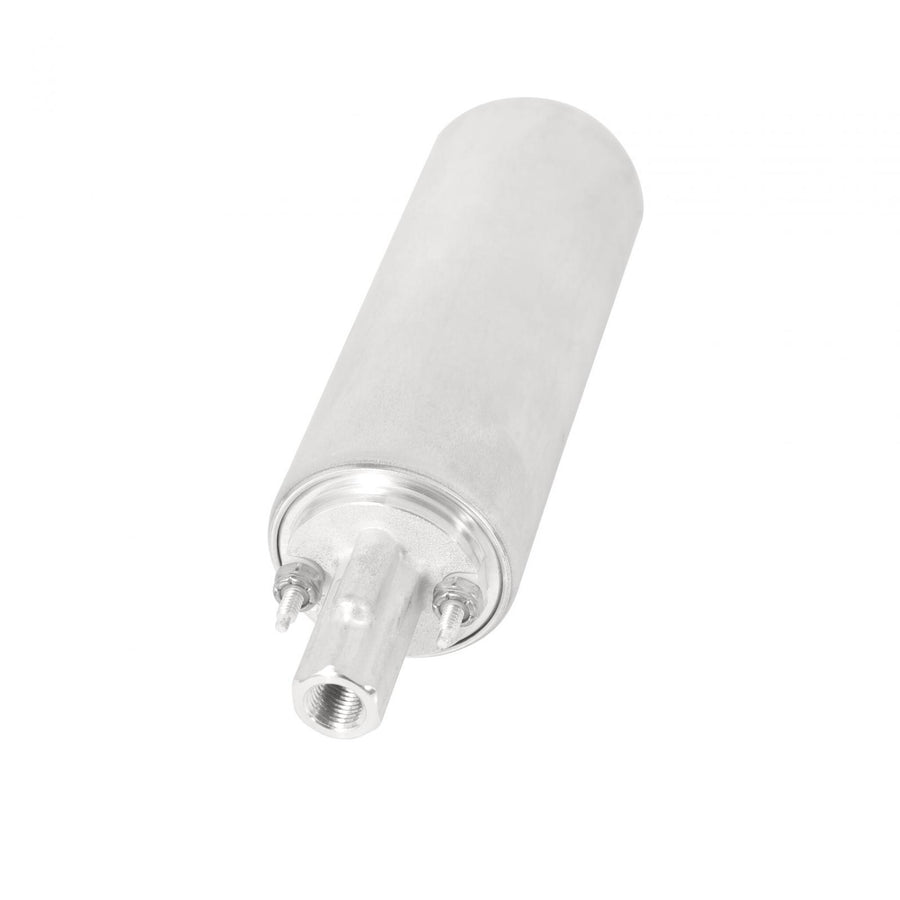

The Holley 12-920 is an 80 GPH universal in-line electric fuel pump built for Throttle Body EFI, Multipoint EFI, and Forced Induction Multipoint EFI systems. It installs in-line rather than inside the tank for straightforward mounting and is rated for continuous duty, tested to 2,500 hours.
Specifications:

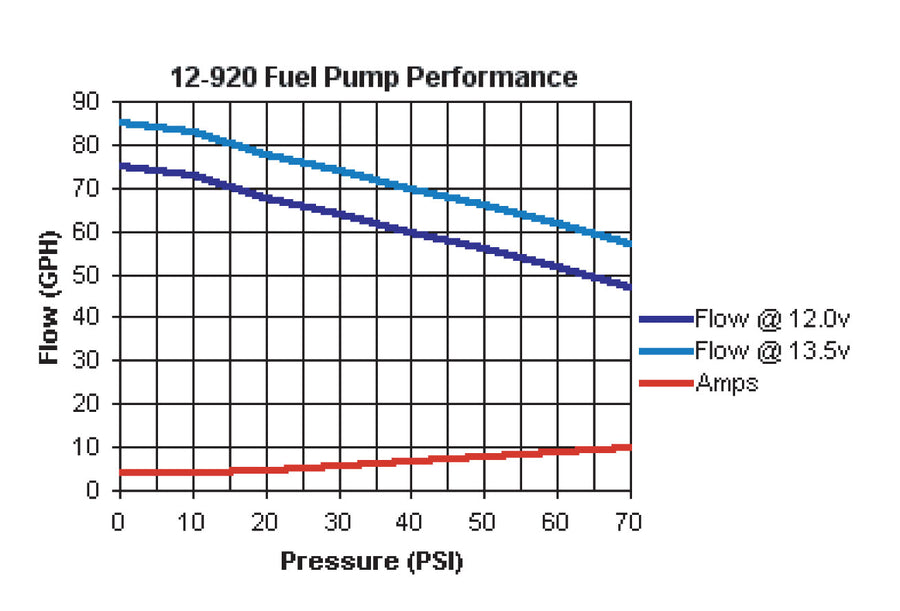

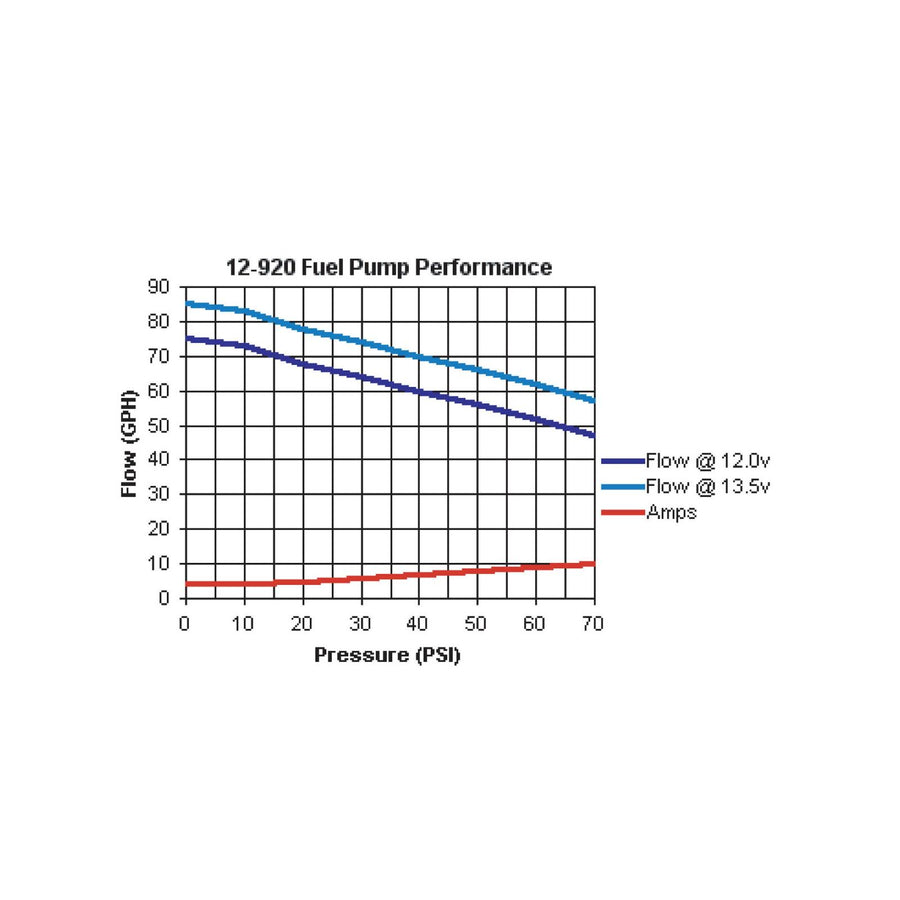

- Flow Rate: 80 GPH @ 15 PSI
- Draw: 5 amps @ 15 PSI
- Inlet/Outlet: 10mm x 1.0
- Fittings: 3/8 in. barbed fittings included
- Material: Steel body, silver pump body finish
- Fuel Type: Gasoline
- Application: Universal
- Power Rating: Up to 800 HP throttle body EFI, 700 HP multipoint EFI, 600 HP forced induction multipoint
- Category: Air and Fuel Delivery
- Part Number: 12-920

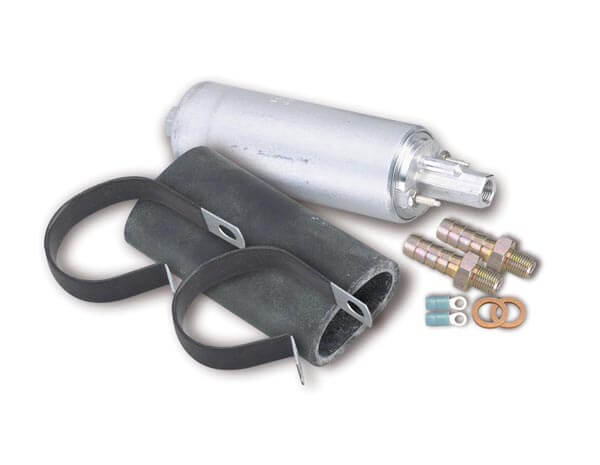

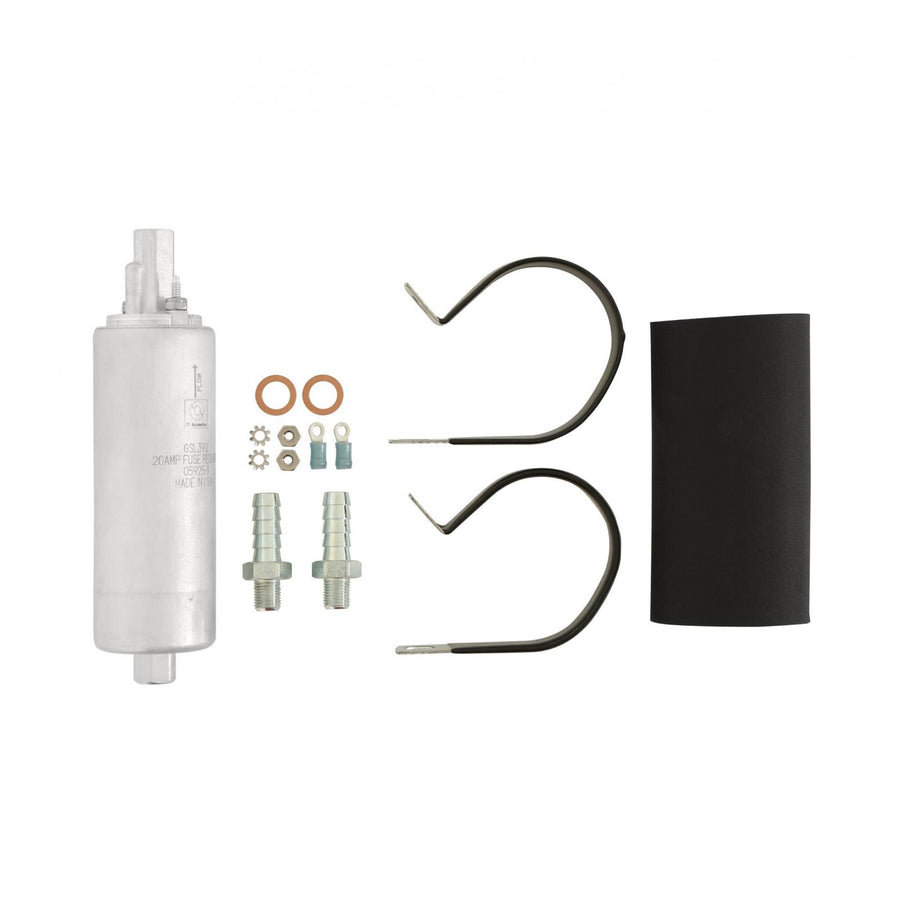

Mount below the fuel tank level for a proper gravity feed on the inlet side. Includes 10mm x 1.0 gasket-sealed 3/8 in. OD hose barbs; -6 AN (26-160) and -8 AN (26-180) adapters are available separately.
FAQ
What systems is this fuel pump designed for?
It's designed for Throttle Body EFI, Multipoint EFI, and Forced Induction Multipoint EFI systems.
How should this pump be mounted?
It should be mounted below the fuel level of the tank for a good gravity feed on the inlet side, installed in-line rather than inside the tank.
How much horsepower can this pump support?
It can feed up to 800 HP for throttle body EFI, 700 HP for multipoint EFI, and 600 HP for forced induction multipoint EFI.
Are AN fitting adapters available?
Yes, -6 AN (part number 26-160) and -8 AN (part number 26-180) adapters are available separately.
What is the Holley part number?
The part number is 12-920.
