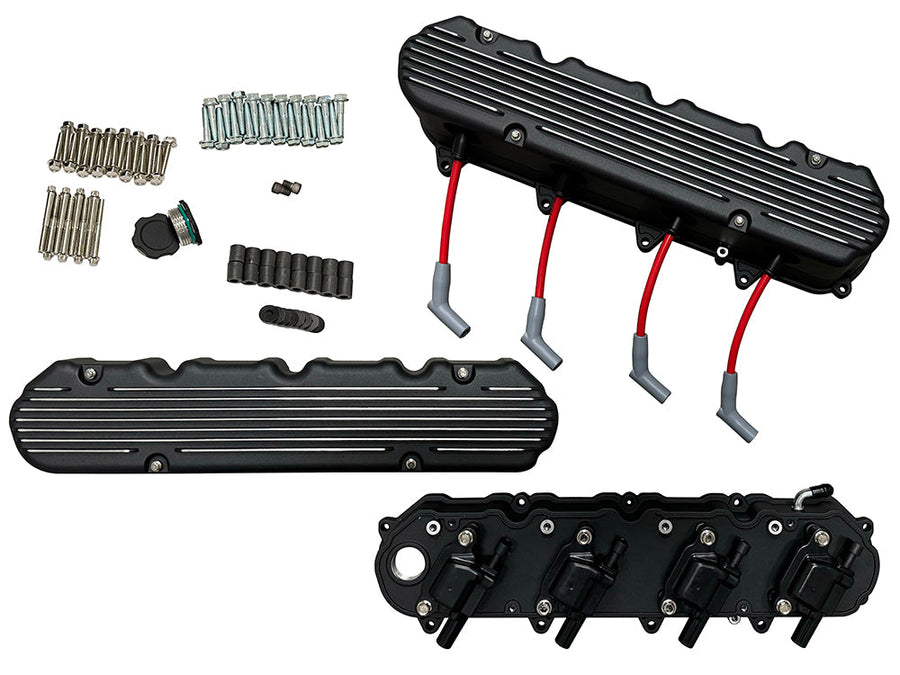

These Speed Engineering black 2-piece finned valve covers fit Gen V LT 5.3L and 6.2L engines. The 2-piece design hides the ignition coils under the top section. The covers use proven OE-style baffles and vents, have 3/8" breather tubes, and include two billet oil fill caps along with gaskets and hardware. They are compatible with factory GM "D51OC" (12570616) coils and with factory or Speed Engineering spark plug wires.
⚠️ Important Notes:
- Works with standard GM coils "D51OC" (12570616)
- The factory LT coil connectors are tight on fitment. Swap the factory coil connectors or use the Speed Engineering coil harness for swap installations with a custom harness. Will not work with the factory LT harness without modifications
- Covers are taller than factory at 4-1/4" total height and may not clear certain accessory drives or supercharger applications. Check clearance before installing
Features:
- 2-Piece Hidden Coil Design
- Finned Top, Black Finish
- Billet Oil Fill Caps: Qty 2
- OE-Style Baffles and Vents
- 3/8" Breather Tubes
- Gaskets and Hardware Included
- Factory Coil Compatible: GM "D51OC" (12570616)
- Spark Plug Wire Compatible: Factory or Speed Engineering wires
- 4-1/4" Total Height
- Gen V LT 5.3L and 6.2L Engines
FAQ
Which engines do these valve covers fit?
They fit Gen V LT 5.3L and 6.2L engines.
Which ignition coils do they work with?
They work with standard GM "D51OC" (12570616) coils.
Will they plug into the factory LT harness?
Not without modifications. The factory LT coil connectors are tight on fitment, so the coil connectors need to be swapped, or the Speed Engineering coil harness can be used for swap installations with a custom harness.
How tall are these valve covers?
They are 4-1/4" in total height, which is taller than factory, so clearance should be checked with accessory drives and superchargers.
Are gaskets included?
Yes. Gaskets and hardware are included, along with two billet oil fill caps.
