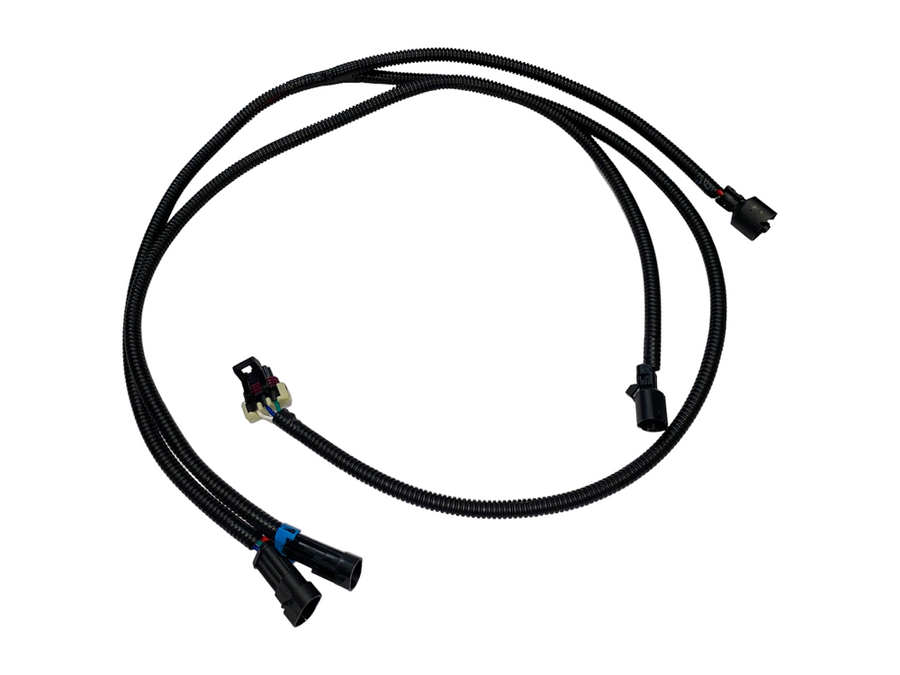

This Speed Engineering conversion harness plugs in place of the factory LS1/LS6 knock sensor harness and extends to the sensor locations on an LS2 engine block. It is commonly used when an LS2 or newer engine is installed in an LS1/LS6 engine bay, and it is compatible with the LS1 Corvette and Camaro PCM harness.
The cam portion lets the cam sensor on the front of an LS2 engine plug into the LS1 cam sensor connector at the back of the intake manifold. The knock portion lets the single-wire LS1 knock sensor connections reach knock sensors mounted on both sides of the LS2 block and plug into the factory LS1 PCM harness.
Features:
- Relocates Camshaft and Knock Sensors: To LS2 or newer block locations
- Cam Harness: Front-mount LS2 cam sensor to rear LS1 cam sensor connector
- Knock Harness: Single-wire LS1 knock connections to both sides of the LS2 block
- Compatible with LS1 Corvette/Camaro PCM Harness
- Factory Harness Plug-In
FAQ
What is this conversion harness used for?
It is used when an LS2 or newer engine is installed with an LS1/LS6 harness, relocating the cam and knock sensor connections to the LS2 block locations.
How does the cam sensor portion work?
It lets the cam sensor on the front of an LS2 engine plug into the LS1 cam sensor connector located at the back of the intake manifold.
How does the knock sensor portion work?
It lets the single-wire LS1 knock sensor connections reach knock sensors on both sides of the LS2 block and plug into the factory LS1 PCM harness.
Which harness is it compatible with?
It is compatible with the LS1 Corvette and Camaro PCM harness.
Is this part street legal?
No. Speed Engineering sells this conversion harness as a race-only product intended for competition use only. Installation on a street-driven vehicle may violate the Clean Air Act (42 U.S.C. 7522(a)(3)).
⚠️ Race Use Only: This product is manufactured and sold for installation on vehicles used solely for competition. Once installed, the vehicle may not be used, registered, or licensed for use on a public road or highway. Installation on a street-driven vehicle may violate the Clean Air Act 203(a)(3), 42 U.S.C. 7522(a)(3).
