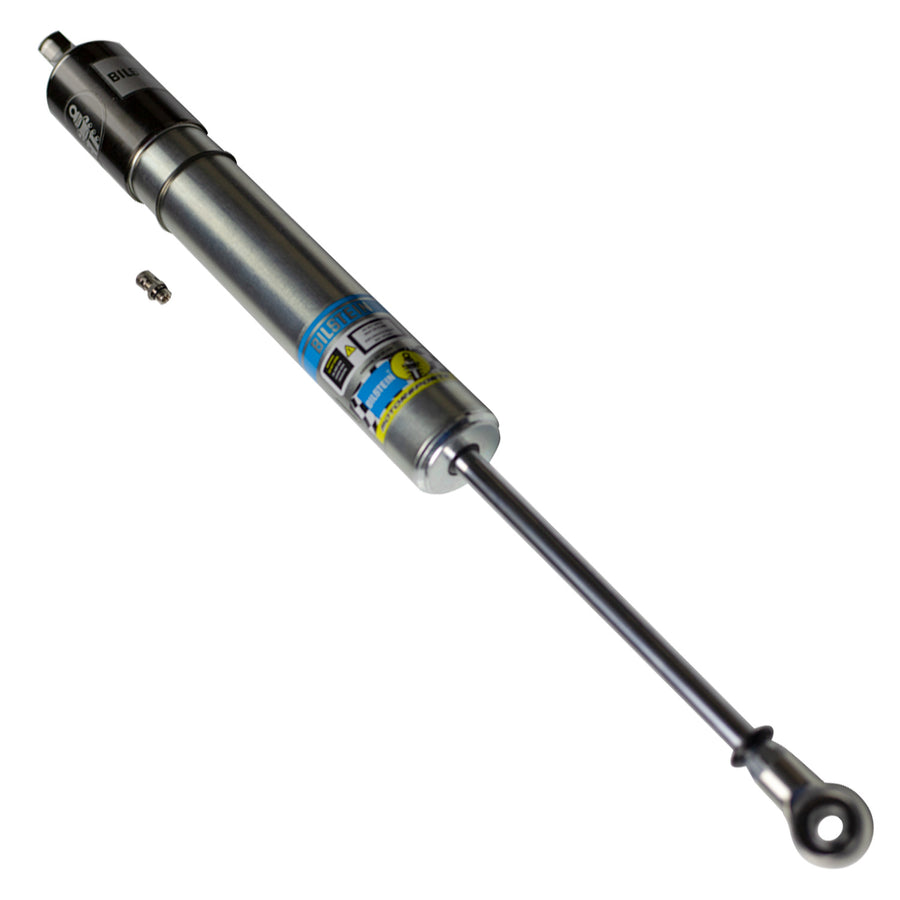

Bilstein SNS2 Series (BV) - Suspension Shock Absorber 33-298245
Specifications:
| PartType | Shocks / Struts |
| Prop 65 (Y/N) | Y |
| Upper Mount Type | 1/2in Heim |
| Piston Type | Digressive |
| Spring Seat Included | No |
| Extended Length (IN) | 23.79 |
| Body Diameter (ID) | 46mm |
| Title | Bilstein Shock Absorbers |
| Finish | Zinc Plated |
| Adjustable Damping | Non-Adjustable |
| Lower Mount Type | 1/2in Heim |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Segment | Motorsports |
| Collapsed Length (MM) | 403.2 |
| Collapsed Length (IN) | 15.87 |
| Extended Length (MM) | 604.4 |
| Spring Hardware | B4-BOA-0000117 |
| Internal Design | Monotube |
| Body Design | Smooth Body Screw Top (Non-coilover) |
| Boot Included | No |
| Body Material | Steel |
| Series | SNS2 Series (BV) |
| Description_FAB | Modular steel body design allows racer rebuildability |
| Description_FAB | Modular steel body design allows racer rebuildability |
| Description_INV | SNS2 BV, 9" Non Adj. Dig. C12-R2 |
| Description_LAB | SNS2 Series (BV) - Suspension Shock Absorber |
| Description_ASM | No Applications |
| Description_FAB | Base Valve design delivers ultra low rod pressures and elminates gas preload |
| Description_SHO | Shock |
| Description_DEF | Suspension Shock Absorber |
| Description_DES | SNS2 Series (BV) - Suspension Shock Absorber |
| Description_EXT | 46mm Monotube Shock Absorber |
| Description_MKT | Bilstein SNS2 Series (BV) shock absorbers feature an all-steel smooth body construction with 46mm internal bore (piston and piston band sold separately, base valve assembly and premium Teflon heims. These shock absorbers include a steel body with external nitrogen fill valve and can be converted to a coilover application (kit sold separately). SNS2 Series (BV) shock absorbers are ideal for racers competing within sanctioning rules require all-steel body construction who are looking for rebuildable dampers with extra tuning options through base valve technology. |
