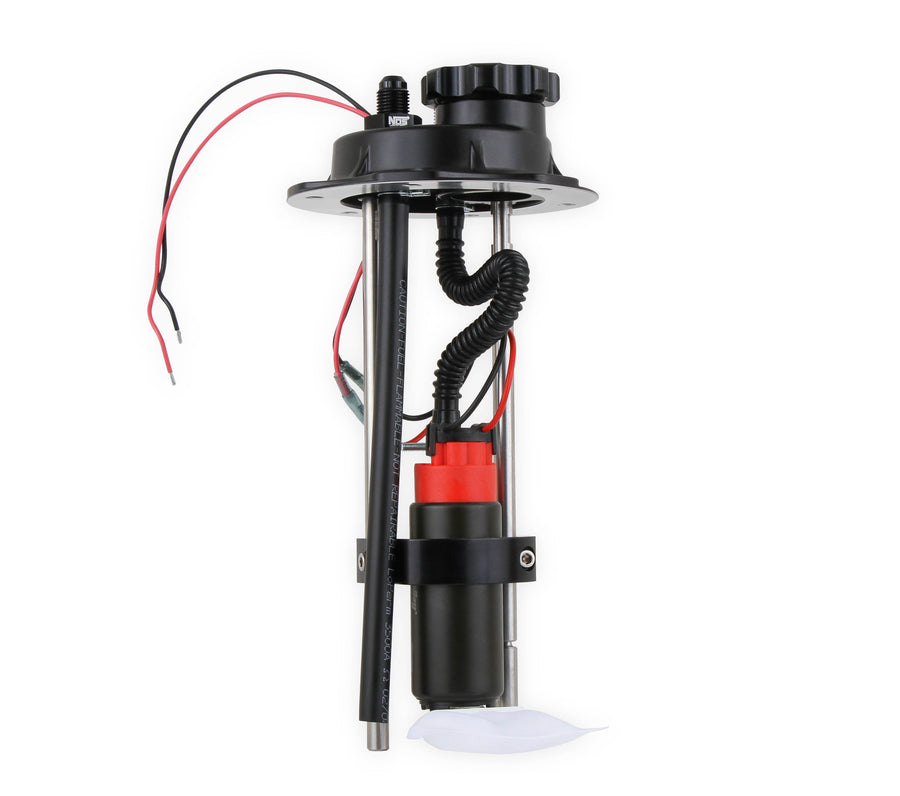

This diecast fuel cell EFI pump module drops in as a direct replacement for an existing 6-bolt flange fuel cell cap assembly, converting a racing fuel cell to EFI with an adjustable pump depth and no fabrication required.
Specifications:
- Product Type: Fuel Pump Module
- Flange Style: 6-Bolt (4.375" bolt pattern)
- Flow Rate: 340 LPH / 90 GPH Free Flow
- System Style: Return
- Inlet/Outlet Size: 6 AN
- Maximum Pressure: 80 PSI
- Pump Configuration: Single
- Fuel Type: Gasoline
- Horsepower Support: Up to 700 EFI / 900 Carbureted HP
- Application: Universal
- Part Number: 19-370
Pump depth is fully adjustable from 7.5" to 12" to fit common RJS, Jaz, Summit, Jegs, RCI, Speedmaster, and Speedway fuel cells. EFI-rated fuel hose and clamps are required when connecting to existing vehicle fuel lines.
FAQ
What fuel cells does this module fit?
It's designed to drop into common 6-bolt flange fuel cells from RJS, Jaz, Summit, Jegs, RCI, Speedmaster, and Speedway with a 4.375" bolt pattern.
What pump depth range does it support?
The pump depth is fully adjustable from 7.5" to 12" deep to fit a wide range of fuel cell sizes.
Is this the return or returnless style?
This is the return-style module; a returnless version is also available.
What fuel line fittings does it use?
It uses a 6 AN inlet and 6 AN outlet port, and EFI-rated fuel hose and clamps are required to connect to the vehicle's fuel lines.
