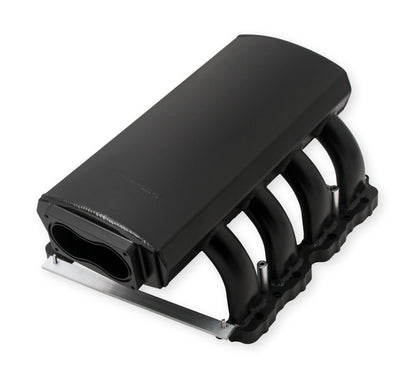

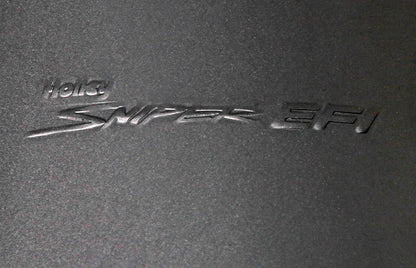

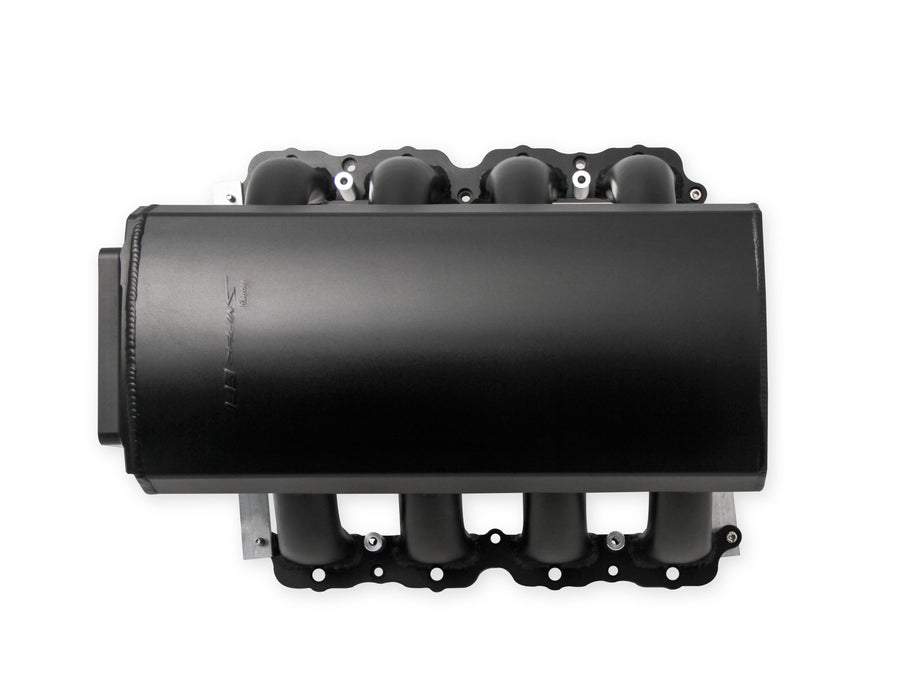

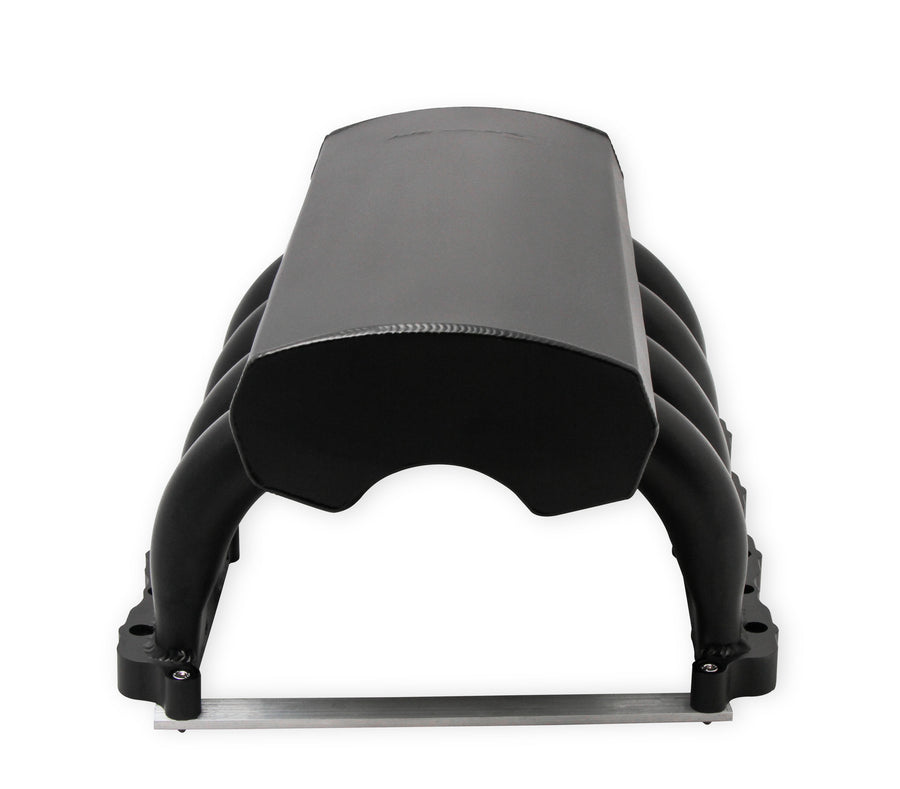

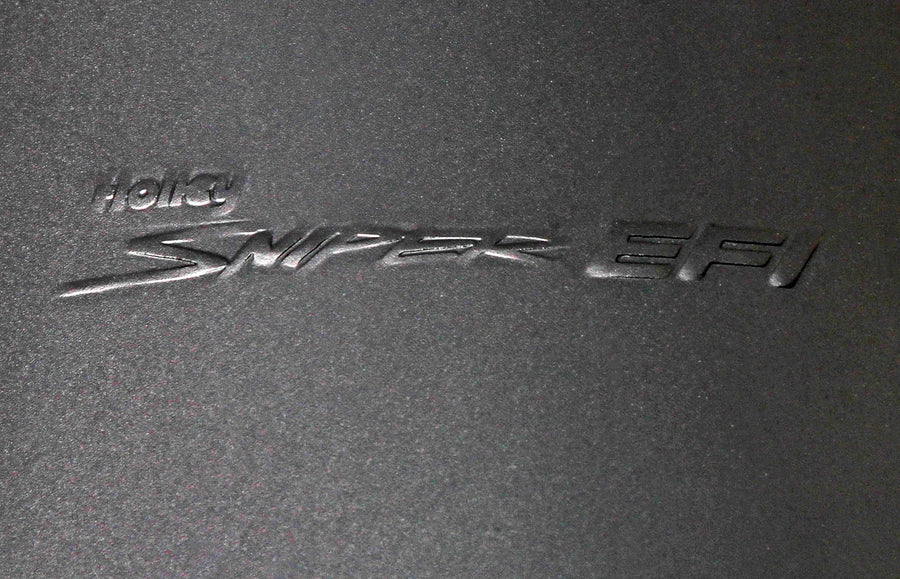

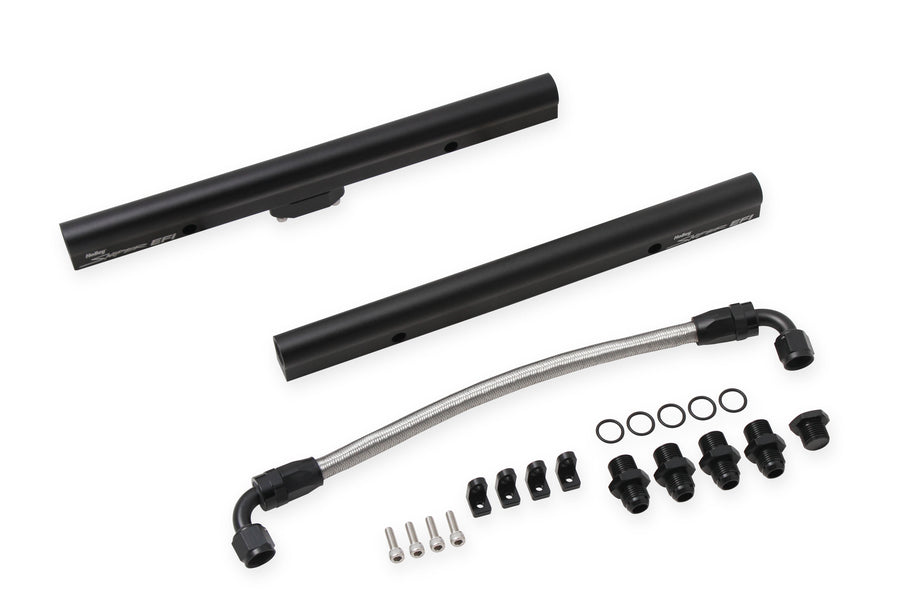

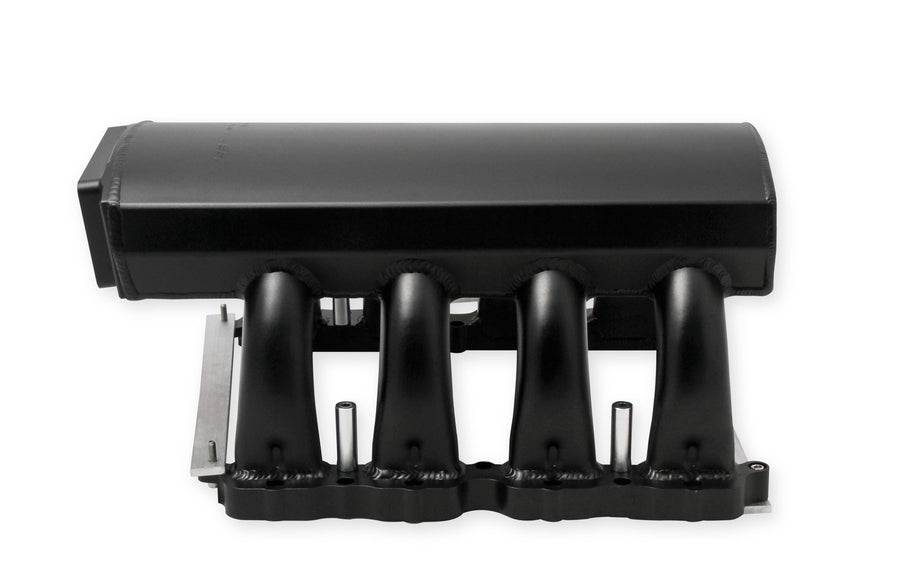

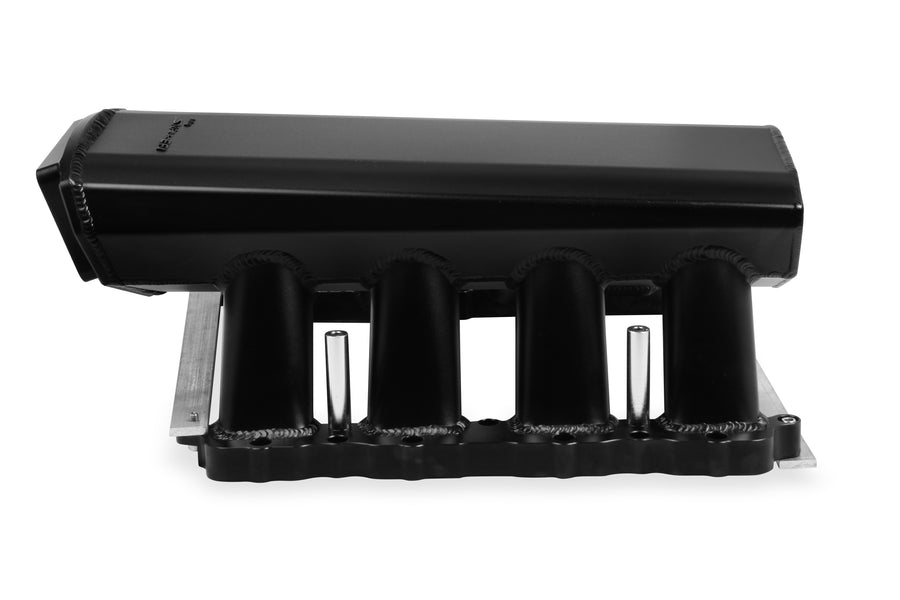

This Sniper EFI hi-ram sheet metal fabricated intake manifold is built for 2005-10 Ford 4.6L 3V engines using Ford factory-style twin 65mm throttle bodies, for a combined 130mm throttle body opening. It ships with a black finish fuel rail kit carrying the Sniper EFI logo. Some OEM-style throttle bodies may require a throttle body spacer (Sniper Part # 860006).
Specifications:
- Engine: 2005-10 Ford 4.6L 3V (Modular)

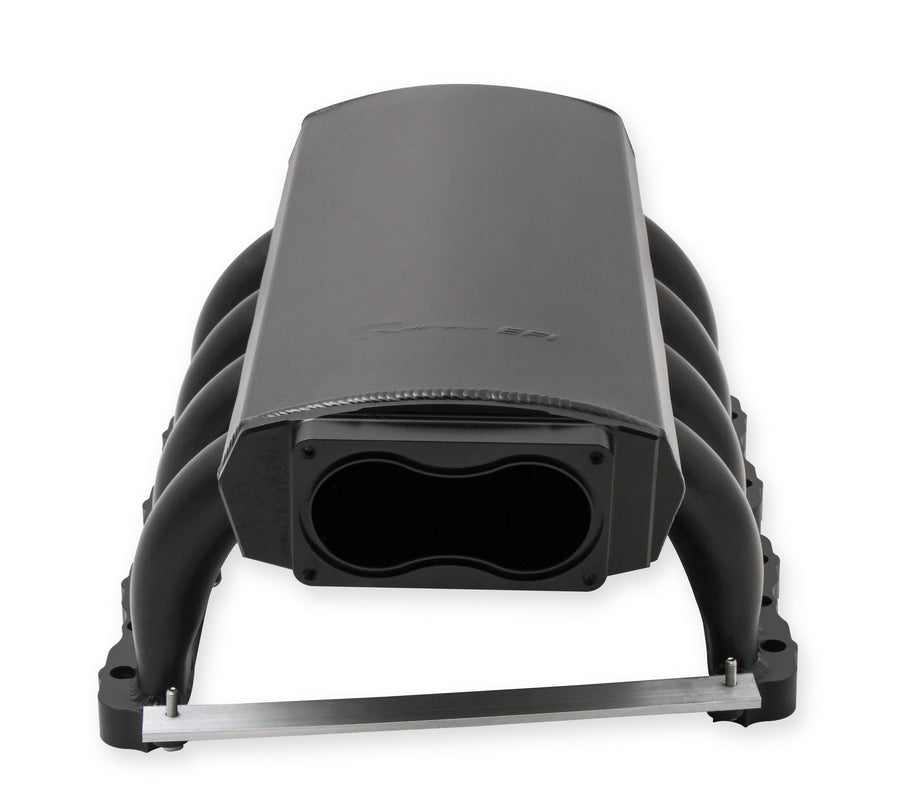

- Throttle Bore: 130mm (Twin 65mm)

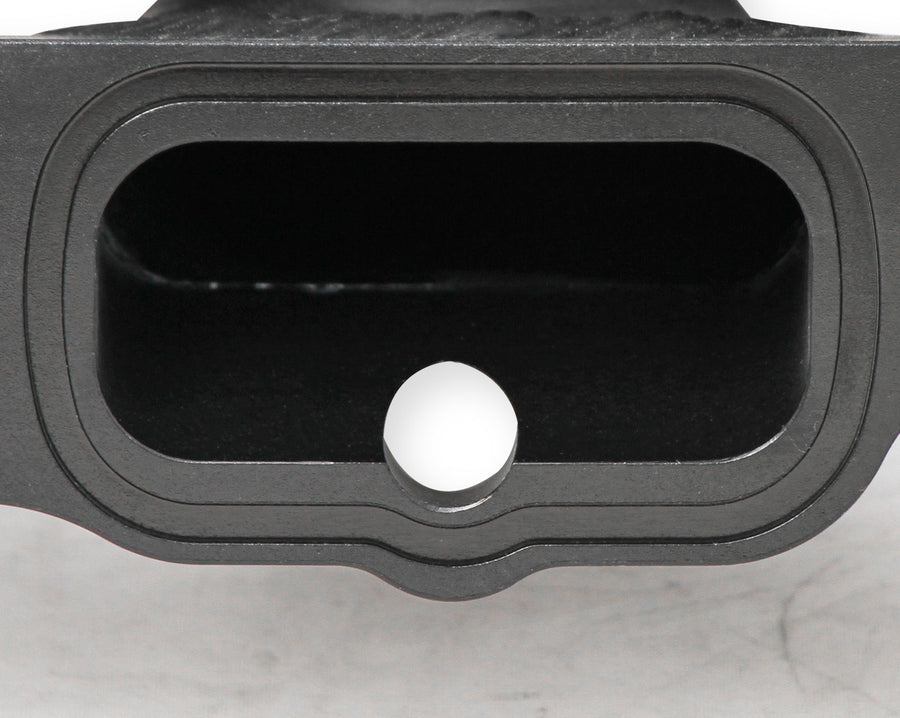

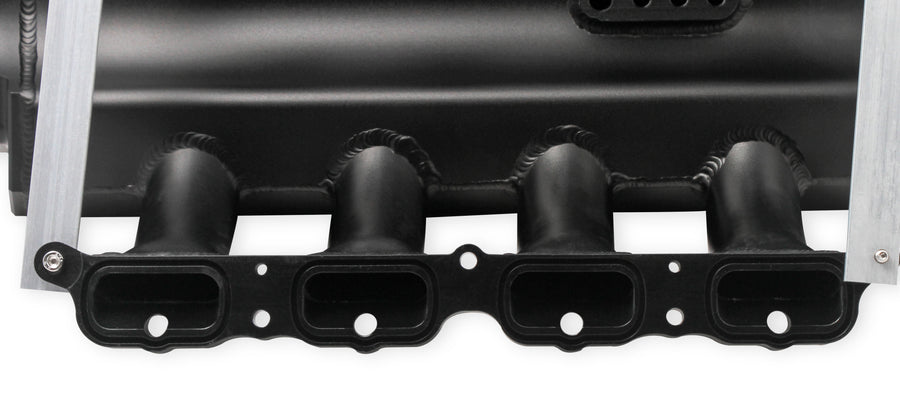

- Cylinder Head Port Shape: Oval with Dimple

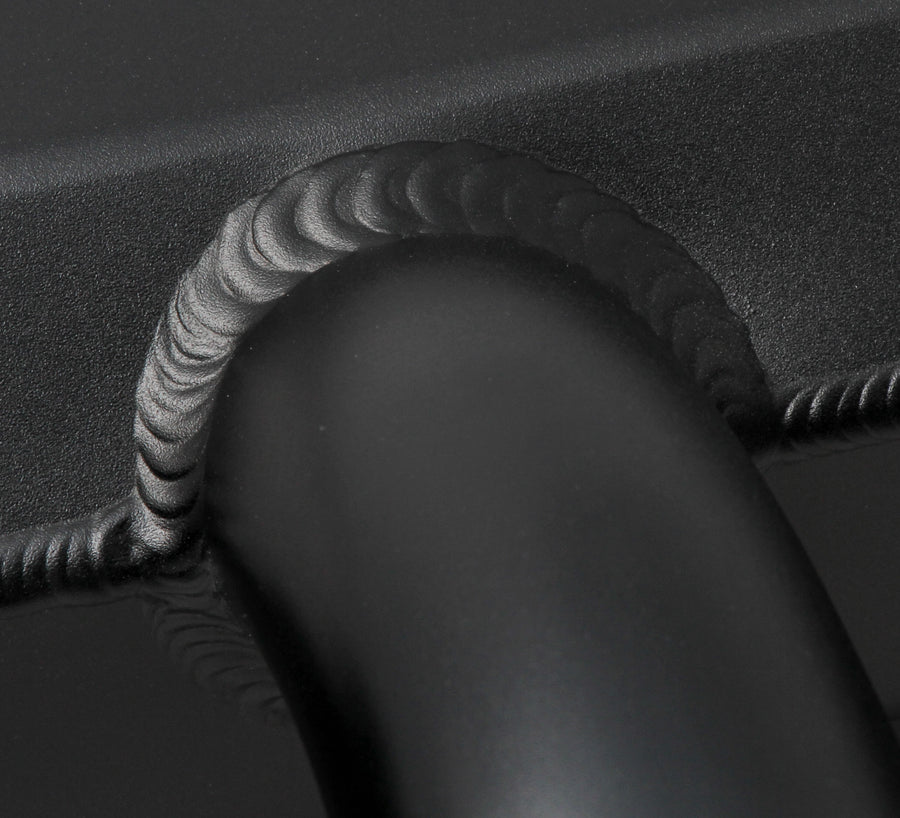

- Material: 3mm (1/8") T6061 Sheet Aluminum, 100% TIG Welded
- Finish: Black

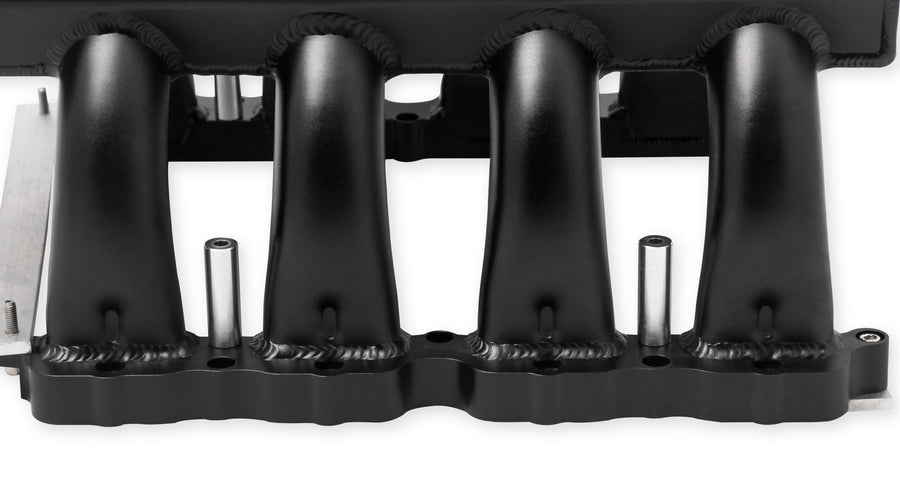

- Runner Length: 5.709" (145mm)
- Basic Operating RPM Range: 2200-6800
- Injector Style Provision: EV1
- Throttle Body Gasket Included: Yes
- Part Number: 829082
Designed for maximum performance applications with engine speeds up to 7000-7500 RPM (carbureted) or 6800-7400 RPM (fuel injected) depending on the combination; will not accept stock components/hardware and a modified hood will be required for most vehicle applications. Reference part numbers: M-9926-MGT, M-9926-3V, 9R3Z-9E926-A, 7R3Z-9E926-AA, 9R3E-9F991-CB.
Compliance: This part is legal for sale and use on Racing Use Only Vehicles — competition vehicles that are not registered and never operated on the street. It is against the law to install this part on an Emissions Controlled Vehicle (1966-and-newer California-certified or 1968-and-newer federally certified vehicles).
FAQ
What engines does the 829082 intake manifold fit?
It's built for 2005-10 Ford 4.6L 3V engines using Ford factory-style twin 65mm throttle bodies.
Will this fit under a stock hood?
No. A modified hood will be required for most vehicle applications since this is a maximum-performance hi-ram design.
Does it accept stock throttle body hardware?
No, it will not accept stock components and hardware; some OEM-style throttle bodies may require Sniper Part # 860006 spacer.
What's the maximum RPM rating?
Up to 7000-7500 RPM carbureted or 6800-7400 RPM fuel injected, depending on the engine combination.
