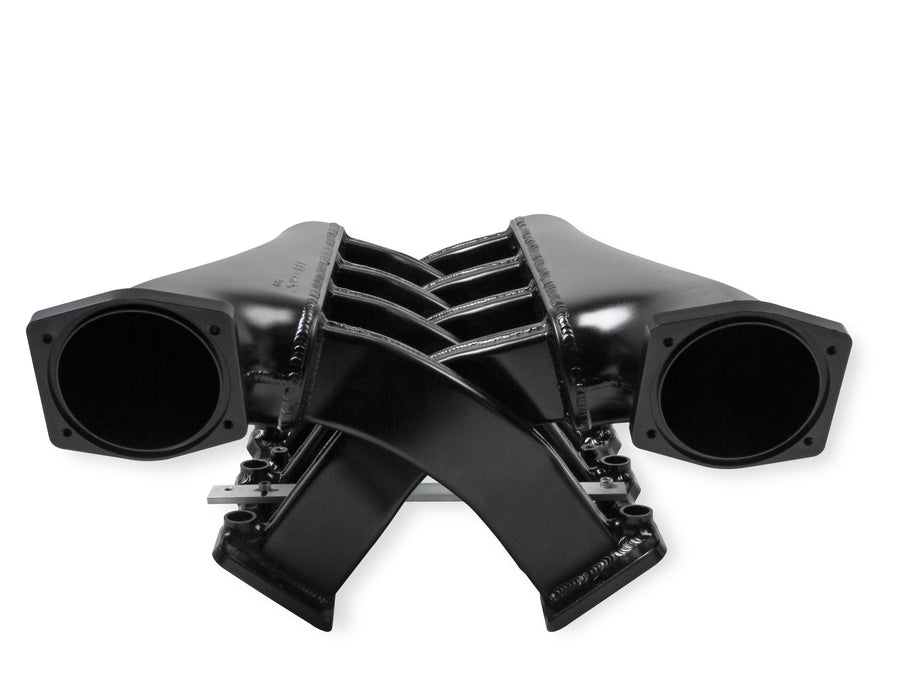

This dual-plenum Sniper EFI fabricated intake manifold splits incoming air into two tapered plenums, one per cylinder bank, for better airflow distribution and increased velocity to each runner. Finished in black for a stealthy look, it uses extended 12.75 inch runners to build strong low-end torque for GM LS1/LS2/LS6 engines with a 102mm throttle bore.
Specifications:
- Engine: GM LS1/LS2/LS6
- Manifold Type: Fabricated dual-plenum, 100% TIG-welded T6061 aluminum
- Throttle Bore: 102mm
- Basic Operating RPM Range: 1500-6500
- Fuel System Type: EFI
- Injector Style Provision: LS1/LS6 EV1 Jetronic, LS2 EV6 USCAR
- Plenum Finish: Black
- Front Width: 19.4292 in
- Rear Width: 13.2844 in
- Throttle Body Gasket Included: No
- Vacuum Ports: (3) 1/8"-28 BSPT & (1) 1/4"-19 BSPT
- Warranty: Manufacturer's Limited 90 Day Warranty
- Part Number: 820242
Includes a laser-engraved 3/8 inch Sniper fuel rail kit rated to support 750+ horsepower, plus all gaskets and hardware for installation.
Compliance: This part is legal for sale and use on Racing Use Only Vehicles — competition vehicles that are not registered and never operated on the street. It is against the law to install this part on an Emissions Controlled Vehicle (1966-and-newer California-certified or 1968-and-newer federally certified vehicles).
FAQ
What does the "dual plenum" design do?
Each cylinder bank gets its own tapered plenum instead of sharing one large plenum, which improves airflow distribution and increases air velocity into the runners.
What finish and bore does this version have?
It's finished in black with a 102mm throttle bore.
What kind of power does the fuel rail support?
The included 3/8 inch fuel rail kit is rated to support 750+ horsepower.
Is a throttle body gasket included?
No, a throttle body gasket is not included with this manifold.
