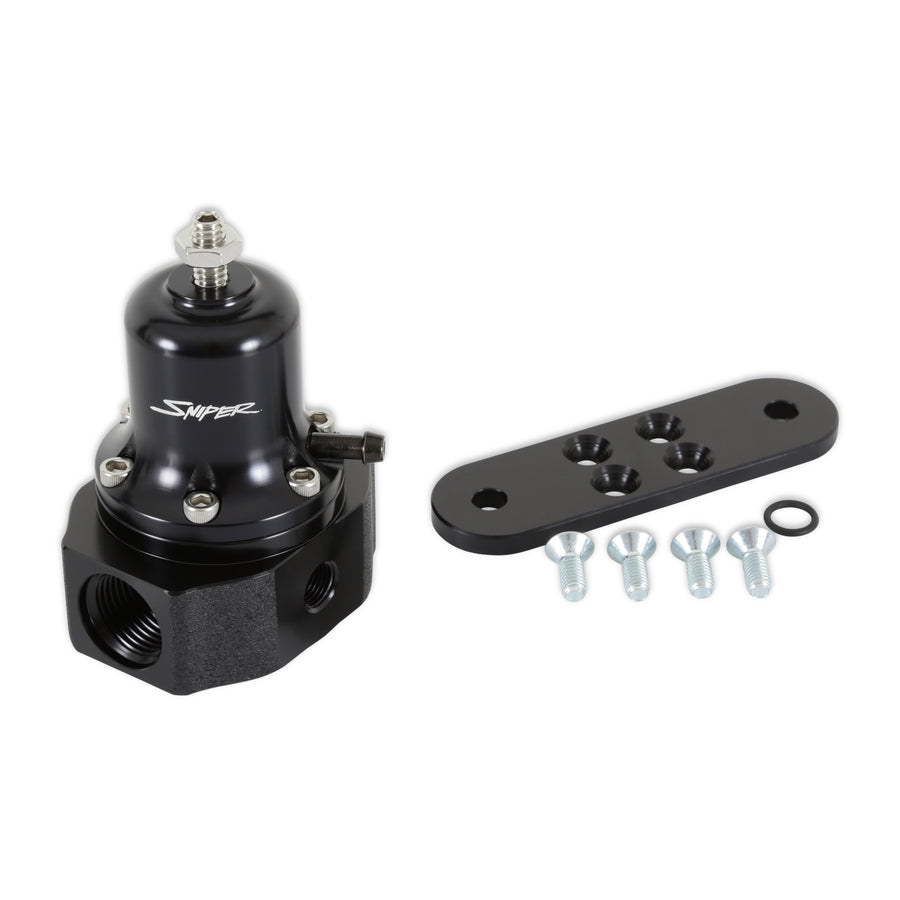

This Sniper EFI universal bypass fuel pressure regulator is built for street or track fuel systems needing superior flow and pressure control. It offers an adjustable base pressure range of 40-130 PSI plus a gauge port and a boost reference port, and is precision-machined from 6061-T6 billet aluminum with a black anodized body and clear anodized top for corrosion resistance.
Specifications:
- Fuel Type: Gasoline/Alcohol
- Pressure Rating: 40-130 PSI
- Inlet/Outlet Port: 3/4-16, 8AN ORB (Female)
- Style: Return Style
- Boost Reference Port: 1/8-inch NPT (1:1 Ratio)
- Fuel Gauge Port: 1/8-inch NPT
- Sub Category: Carburetion
- Warning: California Proposition 65
- Warranty: Manufacturer's Limited 1 Year Warranty
- Part Number: 19-395
Features a longer spring for a wider adjustment range, an oversized bypass orifice, and a corrugated diaphragm for superior flow. Alcohol fuel and race gas compatible; used in systems with a return line back to the tank. Includes a mounting bracket, hardware, and a 1/8-inch NPT barb fitting for manifold boost reference.
FAQ
What pressure range does the 19-395 regulator adjust to?
40-130 PSI, adjustable via a longer spring for a wider tuning range.
Does the 19-395 include a boost reference port?
Yes, a 1/8-inch NPT boost reference port with a 1:1 ratio, along with a 1/8-inch NPT fuel gauge port.
Is the 19-395 compatible with alcohol fuel?
Yes, it's compatible with alcohol fuel and race gas as well as gasoline.
Does the 19-395 come with mounting hardware?
Yes, it includes a mounting bracket, hardware, and a 1/8-inch NPT barb fitting for manifold reference.
