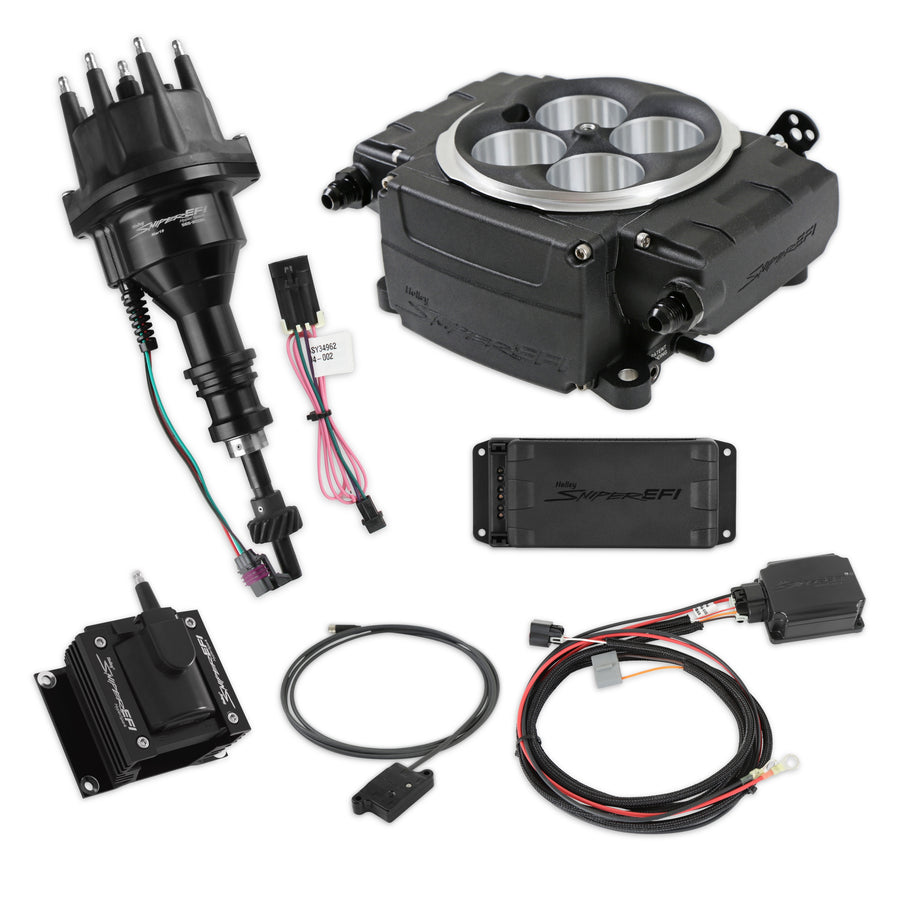

This bundle pairs Holley's top-selling Sniper 2 EFI packages for maximum savings, built for 8.2-inch deck small block Ford (5.0 base) applications. It combines a HyperSpark distributor, HyperSpark coil, and HyperSpark 2 ignition box with Bluetooth wireless tuning and the Power Distribution Module (PDM).
Key Features:
- HyperSpark ignition kit includes a Ford small block 8.2-inch deck distributor, coil, and HyperSpark 2 ignition box for integrated timing control
- Bluetooth module turns an iOS or Android smartphone into a wireless tuning and monitoring interface
- Power Distribution Module (PDM) isolates core EFI and ignition wiring into a single positive-lock connection point
- Next generation ECU with improved RF noise and interference resistance
- Hidden-harness wiring exits from the rear of the throttle body for a clean installation
- Genuine Bosch LSU 4.9 wideband oxygen sensor for real-time fuel map learning
- Integrated transmission kick-down provisions for GM TH350/400, 200-4R/700R4 and Ford C4/C6
- Only 4 wiring connections required: Battery+, Battery-, Switched Ignition, and RPM
- Supports up to 650 hp naturally aspirated or 575 hp on boost with four 100 lb/hr injectors
- Sniper 2 throttle bodies are individually serialized for improved warranty/service tracking
Specifications:
- Product Type: Sniper EFI
- Flange Style: 4150
- Finish: Black
- CFM: 800
- Max Horsepower Rating: 650 Naturally Aspirated / 575 Boosted
- Injector Size: 100 lb/hr @ 58.5 PSI
- Fuel Pressure: 58.5 PSI
- Fuel System: Not Included
- Distributor Included: Ford Small Block
- HyperSpark Ignition Kit: Ford Small Block 8.2 Deck
- User Interface: Bluetooth Module
- Power Distribution Module: Yes
- Warranty: Two Year Standard, Extended Via Product Registration
- Part Number: 550-511-BPX-SBF
Fuel system not included — an external fuel pump and pressure regulator set to 58.5 PSI are required. Bluetooth module service is available within the USA and Canada only. Nitrous control is not supported in Sniper 2 EFI software.
FAQ
Does this kit include a fuel system?
No. The 550-511-BPX-SBF does not include a fuel system — an external fuel pump and regulator set to 58.5 PSI are required.
What ignition components are included?
A Ford small block 8.2-inch deck HyperSpark distributor, HyperSpark coil, and HyperSpark 2 ignition box for integrated timing control.
How do I tune this system?
Via Bluetooth, pairing an iOS or Android smartphone with the module — no laptop or handheld required.
How much horsepower can this kit support?
Up to 650 hp naturally aspirated or 575 hp under boost, using four 100 lb/hr injectors.
Is nitrous control supported?
No, nitrous control is not supported in Sniper 2 EFI software.
