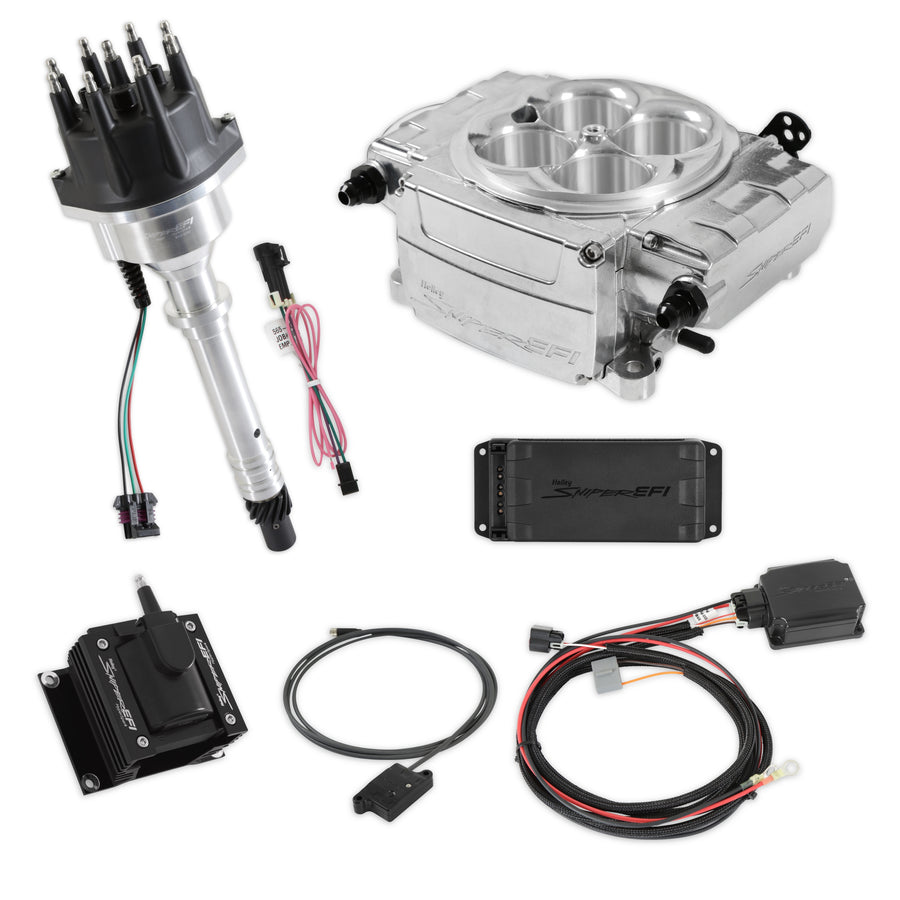

This Sniper 2 EFI bundle pairs a complete, self-tuning Sniper 2 EFI throttle body base kit with a matched HyperSpark ignition system for small block and big block Chevrolet engines - a distributor, ignition coil, and HyperSpark 2 ignition box - plus the Power Distribution Module (PDM), in a single coordinated upgrade. A fuel system is not included.
Key Features:
- Includes a HyperSpark distributor, coil, and ignition box matched to small block or big block Chevrolet engines
- Includes the Power Distribution Module (PDM) with a wiring diagram to connect the system to dedicated circuits for a stress-free install
- Billet aluminum distributor housing with a Hall Effect crank trigger for a noise-free RPM signal to the ECU
- Integrated ignition coil bracket delivers up to 150 mJ of spark energy per second from idle to redline
- Patented clear installation cap eliminates guesswork when installing the distributor, with a built-in timing mark indicator
- Bluetooth module turns an iOS or Android smartphone into a tuning and monitoring interface, with a base map to get started and no laptop required
- Next-generation ECU with improved RF noise and interference resistance for reliable operation on older vehicle wiring
- Only four wiring connections required for the throttle body: Battery+, Battery-, Switched Ignition, and RPM
- Cast-in fuel crossover from the primary to secondary fuel rail
- Integrated transmission kickdown provisions for GM TH350/400, 200-4R/700R4 applications (transmission control kit and vehicle-specific harness sold separately)
- Supports up to 650 hp naturally aspirated or 575 hp under boost with four 100 lb/hr injectors
Specifications:
- Flange Style: 4150
- CFM: 800
- Fuel Pressure: 58.5 PSI
- Fuel System: Not included
- Injector Size: 100 lb/hr @ 58.5 PSI
- Inlet/Outlet Size: 9/16-18 Female O-Ring (AN 6)
- MAP Sensor: 2 Bar
- Max Horsepower Rating: 650 naturally aspirated / 575 boosted
- Distributor Included: Chevrolet Big Block, Chevrolet Small Block
- HyperSpark Ignition Kit: Chevrolet Big/Small Block
- User Interface: Bluetooth Module (3.5 in. or 5 in. handheld also compatible)
- Power Distribution Module: Yes
- Transmission Compatibility: All
- Part Number: 550-510-BPX-SBC
Nitrous control is not supported in Sniper 2 EFI software.
FAQ
Which engines does this bundle fit?
It's built for small block and big block Chevrolet engines, with a matched HyperSpark distributor for each application.
Does this bundle include a fuel system?
No, a fuel system is not included with this base-kit bundle.
What's included in the ignition portion of this bundle?
A HyperSpark distributor, ignition coil, and HyperSpark 2 ignition box, matched to the Chevrolet small block/big block application.
Does this bundle include the Power Distribution Module?
Yes, the PDM is included to simplify wiring, especially alongside the HyperSpark ignition system.
Is nitrous control supported?
No, nitrous control is not supported in Sniper 2 EFI software.
