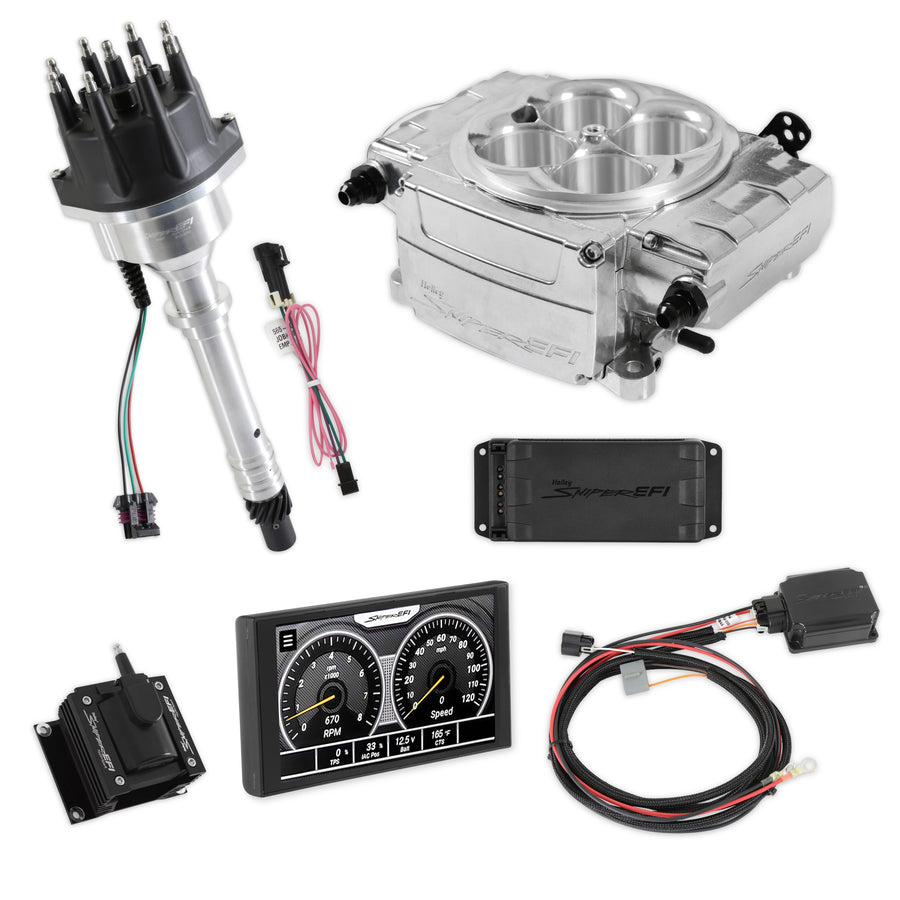

This Sniper 2 conversion bundle pairs the self-tuning Sniper 2 throttle body, the Power Distribution Module (PDM), and a HyperSpark ignition system with a Chevrolet distributor, coil, and ignition box, plus a 5" full-color handheld display. It's built for small block or big block Chevrolet engines. A fuel delivery system is not included and should be sourced separately or paired with an existing in-tank pump.
Key Features:
- Bundle includes PDM, HyperSpark 2 ignition box, coil, and a Chevrolet big block or small block distributor
- Billet aluminum distributor plugs directly into the main harness and uses a Hall Effect crank trigger for a noise-free RPM signal
- Patented clear installation cap eliminates confusion when setting distributor timing marks
- Integrated ignition coil bracket delivers up to 150 mJ of spark energy per second from idle to redline
- Ignition box keeps the features of its predecessor in a smaller, lighter housing for a cleaner install and consistent spark energy
- Sniper 2 Bluetooth module option turns a smartphone into a tuning and monitoring interface
- Cast-in fuel crossover from the primary to secondary fuel rail
- Next-generation ECU offers improved RF noise and interference resistance
- Redesigned throttle shaft and plate geometry for a smoother throttle feel
- PDM reduces vehicle-side wiring to essentially battery, ground, and a switched 12-volt source
- Integrated transmission kick-down provisions for GM TH350/400, 200-4R/700R4, and Ford C4/C6 (Sniper 2 Transmission Control Kit and vehicle-specific harnesses sold separately)
- Only four wiring connections required: Battery+, Battery-, Switched Ignition, and RPM
Specifications:
- Flange Style: 4150
- CFM: 800
- Distributor Included: Chevrolet Big/Small Block
- HyperSpark Ignition Kit: Chevrolet Big/Small Block
- Fuel System: Not included
- Injector Size: 100 lb/hr @ 58.5 PSI (4 injectors)
- MAP Sensor: 2 Bar
- Max Horsepower Rating: 650 HP naturally aspirated / 575 HP boosted
- Power Distribution Module: Yes
- Transmission Compatibility: All
- User Interface: 5" Handheld
- Finish: Polished / Aluminum
- Warranty: Two-Year Standard, extendable via product registration
- Part Number: 550-510-5PX-SBC
A fuel pump and delivery system are not included and must be sourced separately. Nitrous control is not supported in the Sniper 2 EFI software.
FAQ
Does this bundle include a fuel pump?
No. This configuration includes the throttle body, PDM, and HyperSpark ignition, but not a fuel delivery system.
What ignition components are included?
A HyperSpark 2 ignition box, coil, and a Chevrolet big block/small block distributor with a billet aluminum housing and Hall Effect crank trigger.
What Chevrolet engines does this fit?
Chevrolet big block and small block engines using the HyperSpark distributor included in this kit.
What does the PDM simplify?
It isolates the core EFI and ignition wiring into one location, cutting vehicle-side wiring down to essentially battery power, ground, and a switched 12-volt source.
Does this system support nitrous control?
No. Nitrous control is not supported in the Sniper 2 EFI software.
