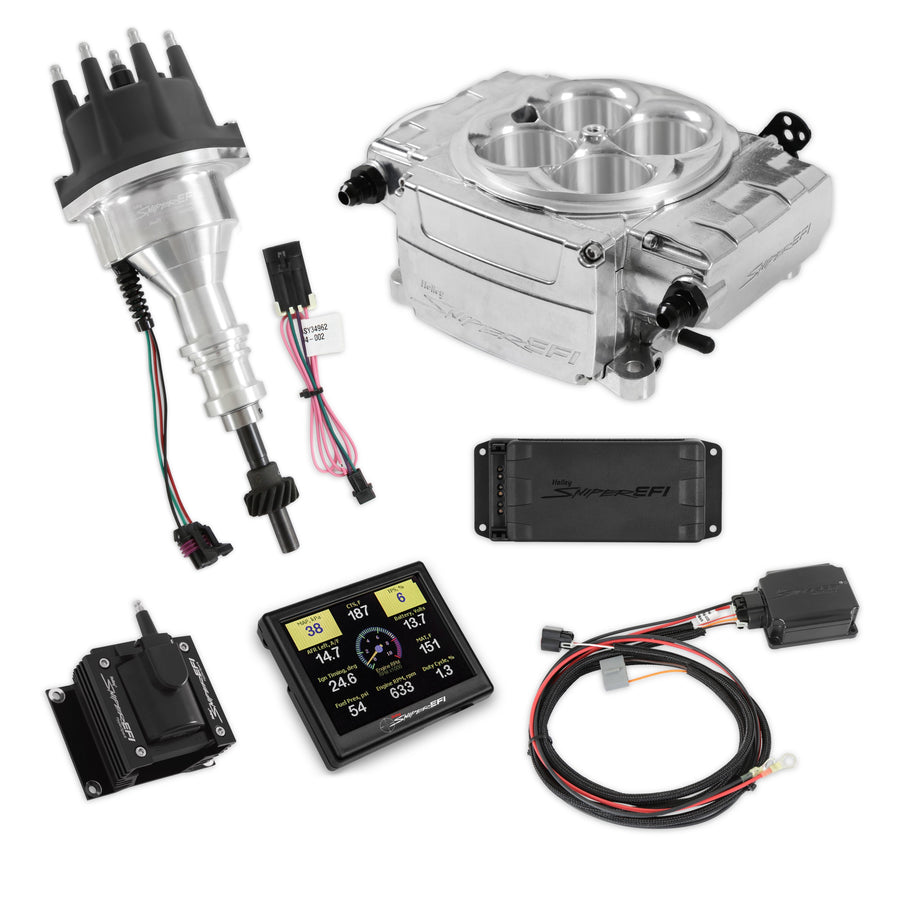

This Sniper 2 conversion bundle pairs the self-tuning Sniper 2 throttle body, the Power Distribution Module (PDM), and a HyperSpark ignition system with a Ford distributor, coil, and ignition box, plus a 3.5" full-color handheld display. It's built for 8.2" deck Ford small block engines (260/289/302/5.0L V8). A fuel delivery system is not included and should be sourced separately or paired with an existing in-tank pump.
Key Features:
- Bundle includes PDM, HyperSpark 2 ignition box, coil, and a Ford small block distributor
- Billet aluminum distributor plugs directly into the main harness and uses a Hall Effect crank trigger for a noise-free RPM signal
- Patented clear installation cap eliminates confusion when setting distributor timing marks
- Integrated ignition coil bracket delivers up to 150 mJ of spark energy per second from idle to redline
- Ignition box keeps the features of its predecessor in a smaller, lighter housing for a cleaner install and consistent spark energy
- Sniper 2 Bluetooth module option turns a smartphone into a tuning and monitoring interface
- Cast-in fuel crossover from the primary to secondary fuel rail
- Next-generation ECU offers improved RF noise and interference resistance
- Redesigned throttle shaft and plate geometry for a smoother throttle feel
- PDM reduces vehicle-side wiring to essentially battery, ground, and a switched 12-volt source
- Integrated transmission kick-down provisions for GM TH350/400, 200-4R/700R4, and Ford C4/C6 (Sniper 2 Transmission Control Kit and vehicle-specific harnesses sold separately)
- Only four wiring connections required: Battery+, Battery-, Switched Ignition, and RPM
Specifications:
- Flange Style: 4150
- CFM: 800
- Distributor Included: Ford Small Block
- HyperSpark Ignition Kit: Ford Small Block, 8.2" Deck
- Fuel System: Not included
- Injector Size: 100 lb/hr @ 58.5 PSI (4 injectors)
- MAP Sensor: 2 Bar
- Max Horsepower Rating: 650 HP naturally aspirated / 575 HP boosted
- Power Distribution Module: Yes
- Transmission Compatibility: All
- User Interface: 3.5" Handheld
- Finish: Polished / Aluminum
- Warranty: Two-Year Standard, extendable via product registration
- Part Number: 550-510-3PX-SBF
Fits Ford 260/289/302/5.0L V8 engines only. A fuel pump and delivery system are not included and must be sourced separately. Nitrous control is not supported in the Sniper 2 EFI software.
FAQ
What Ford engines does this bundle fit?
8.2" deck Ford small block V8 engines: 260, 289, 302, and 5.0L.
Does this bundle include a fuel pump?
No. This configuration includes the throttle body, PDM, and HyperSpark ignition, but not a fuel delivery system.
What ignition components are included?
A HyperSpark 2 ignition box, coil, and a Ford small block distributor with a billet aluminum housing and Hall Effect crank trigger.
What does the PDM simplify?
It isolates the core EFI and ignition wiring into one location, cutting vehicle-side wiring down to essentially battery power, ground, and a switched 12-volt source.
Does this system support nitrous control?
No. Nitrous control is not supported in the Sniper 2 EFI software.
