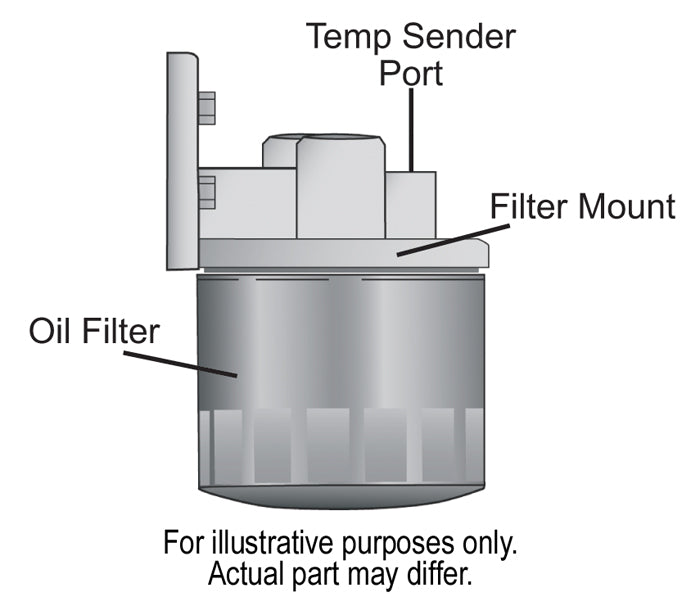

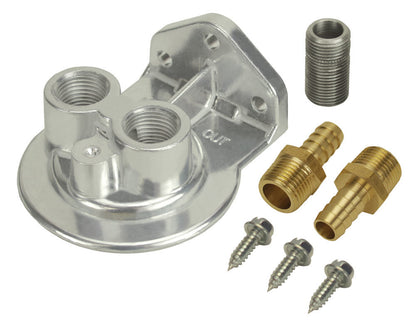

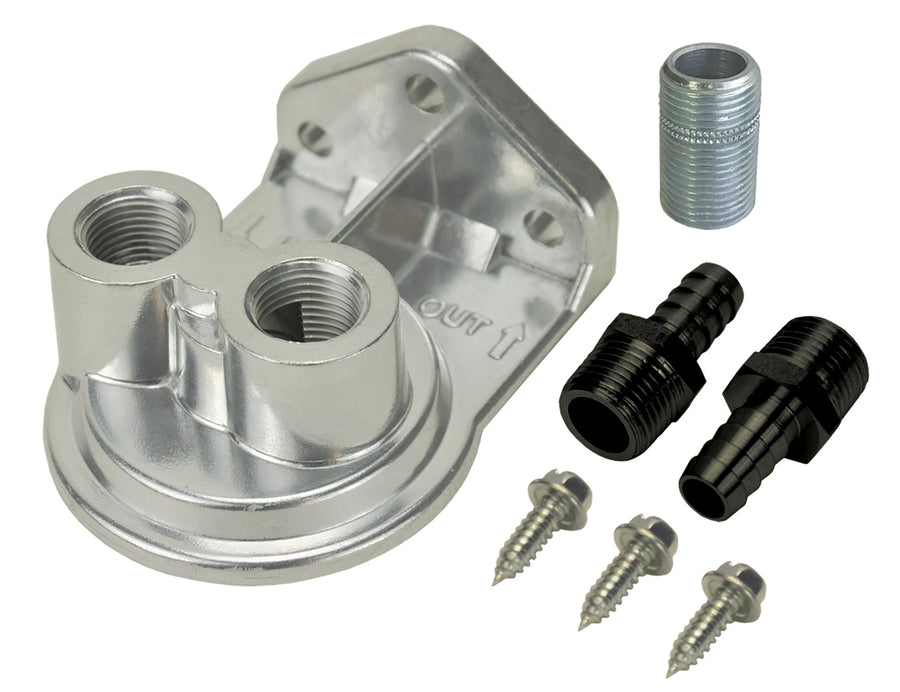

The Derale 13005 is a single ports-up remote oil filter mount kit that relocates a spin-on filter to a more accessible location. It is die-cast from high quality aluminum with an ultra bright finish and uses a three-bolt mounting plate. Both 3/8 inch NPT connections route out of the top in a ports-up layout, and the 3/4 inch-16 center thread accepts a common spin-on filter. The kit includes the filter thread nipple, 3/8 inch hose barb fittings, and mounting hardware.
Specifications:
- Type: Single remote oil filter mount, ports up
- Construction: Die-cast aluminum, ultra bright finish
- Port size: 3/8 inch NPT
- Filter thread: 3/4 inch-16
- Filter landing: 2-1/2 inch to 3-1/2 inch
- Barb size: 3/8 inch
- Mounting: Three-bolt mounting plate
- Included: 3/4 inch-16 filter thread nipple, mounting screws and hardware, 3/8 inch hose barb fittings
- Part number: 13005
FAQ
What does the Derale 13005 do?
It relocates a spin-on oil filter to a remote, easier-to-reach location, with both lines routing out the top in a ports-up layout.
What port and filter threads does the 13005 use?
It uses 3/8 inch NPT ports and a 3/4 inch-16 filter thread, with a 2-1/2 to 3-1/2 inch filter landing.
What is included with the 13005?
It comes with the 3/4 inch-16 filter thread nipple, 3/8 inch hose barb fittings, and mounting screws and hardware.
What is the 13005 made of?
It is die-cast aluminum with an ultra bright finish and a three-bolt mounting plate.
