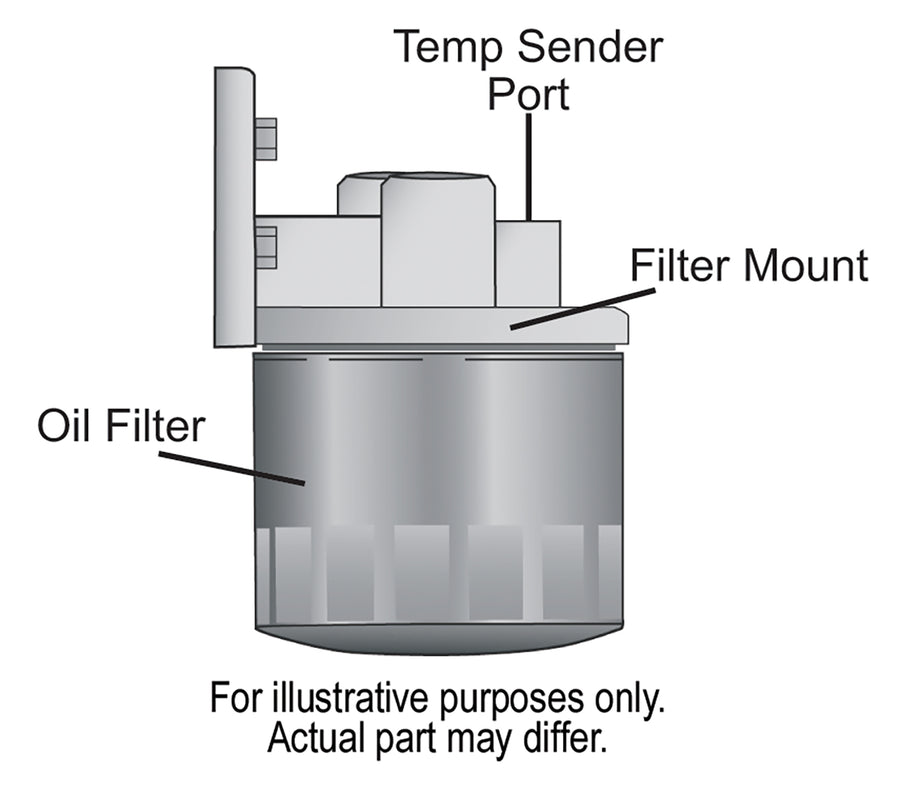

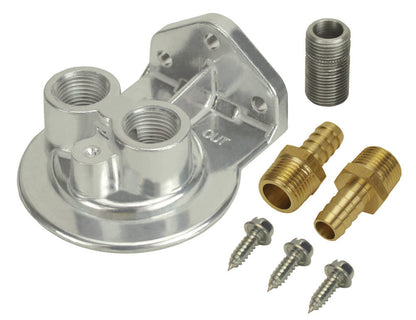

The Derale 15728 is a single ports-up remote oil filter mount kit that lets a spin-on filter be relocated to an easier-to-service location. It is made from die-cast aluminum with an ultra bright finish and uses a three-bolt heavy-duty mounting plate. The ports-up design routes both 1/2 inch NPT connections out of the top, and the 13/16 inch-16 center thread accepts a Fram PH13 filter or equivalent. The kit includes 1/2 inch hose barb fittings and mounting hardware.
Specifications:
- Type: Single remote oil filter mount, ports up
- Construction: Die-cast aluminum, ultra bright finish
- Port size: 1/2 inch NPT inlet and outlet
- Filter thread: 13/16 inch-16
- Filter landing: 2-1/2 inch to 3-1/2 inch
- Barb size: 1/2 inch
- Mounting: Three-bolt mounting plate

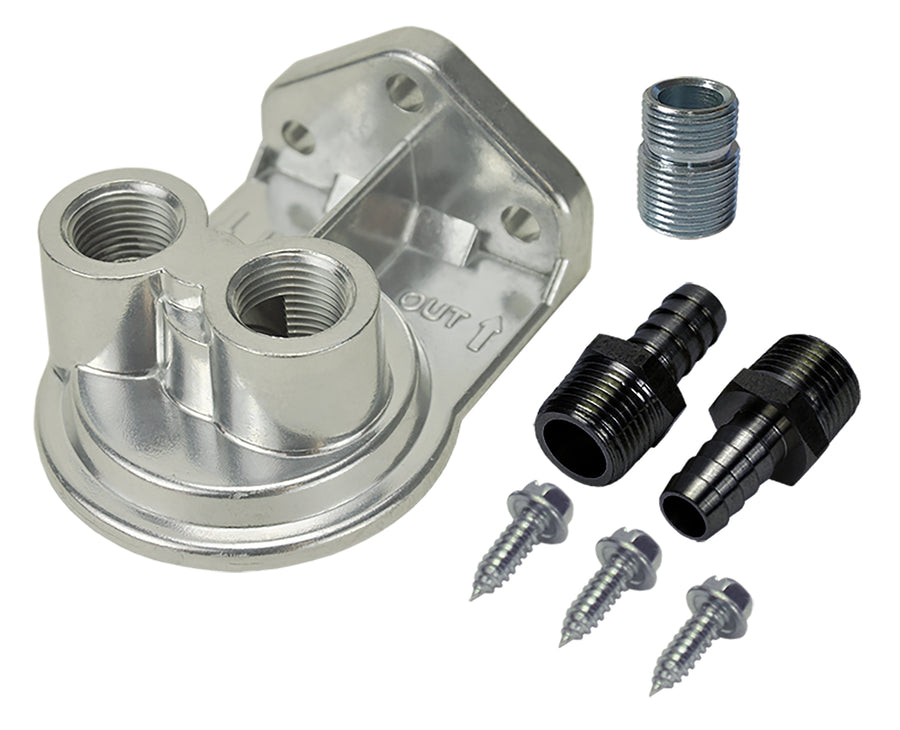

- Included: 1/2 inch hose barb fittings and mounting hardware
- Filter: Fram PH13 or equivalent
- Part number: 15728
FAQ
What does the Derale 15728 do?
It relocates a spin-on oil filter to a remote, easier-to-reach location, with both lines routing out of the top in a ports-up layout.
What filter fits the 15728?
The 13/16 inch-16 thread accepts a Fram PH13 filter or an equivalent, with a filter landing of 2-1/2 to 3-1/2 inches.
What is included with the 15728?
It comes with 1/2 inch hose barb fittings and mounting hardware, using 1/2 inch NPT ports.
What is the 15728 made of?
It is die-cast aluminum with an ultra bright finish and a three-bolt mounting plate.
