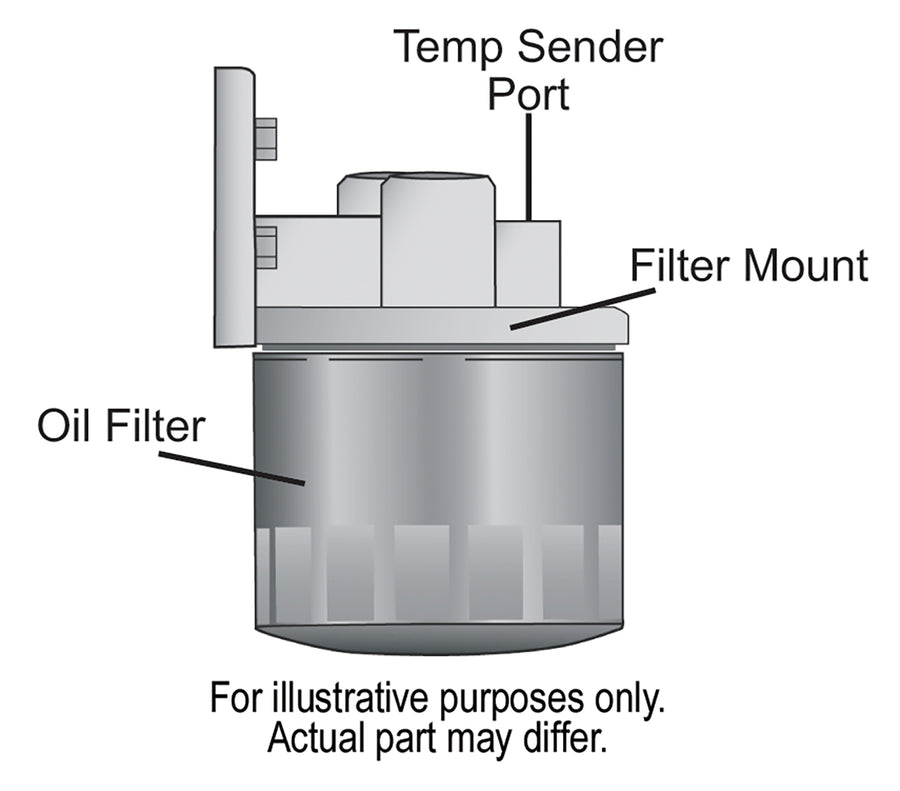

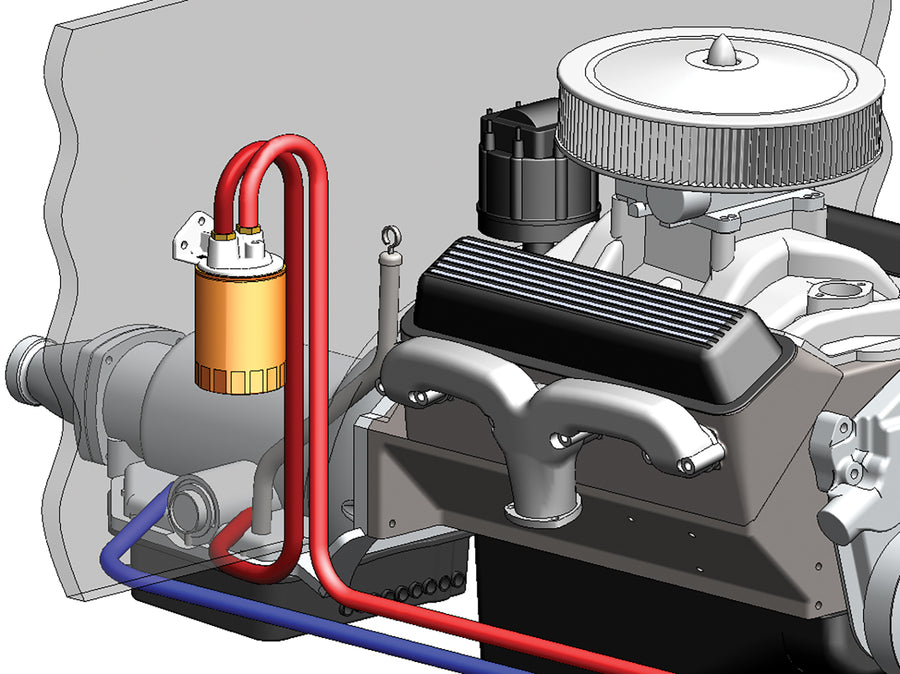

The Derale 13090 is a standard single mount ports-up remote transmission filter kit that adds a spin-on filter to the transmission cooler circuit for cleaner fluid and quicker filter changes. The 21 micron filter catches contaminants that pass through the factory screen filter, and the added fluid capacity helps moderate fluid temperature. The ports-up mount uses 3/8 inch NPT connections, and the kit includes the filter mount, filter, 4 feet of hose, and mounting hardware.
Specifications:
- Type: Single mount remote transmission filter kit, ports up (standard)
- Inlet size: 3/8 inch NPT
- Barb size: 3/8 inch
- Hose: 3/8 inch, 4 ft
- Filter thread: 3/4 inch-16
- Filter landing: 2-1/2 inch to 3-1/2 inch
- Filter dimensions: 3-1/2 inch OD x 3-7/8 inch
- Nominal micron rating: 21
- Bypass valve setting: 8 to 11 PSI
- Anti-drain back valve: Yes
- Burst pressure: 340 PSI
- Max flow rate: 7 to 9 GPM

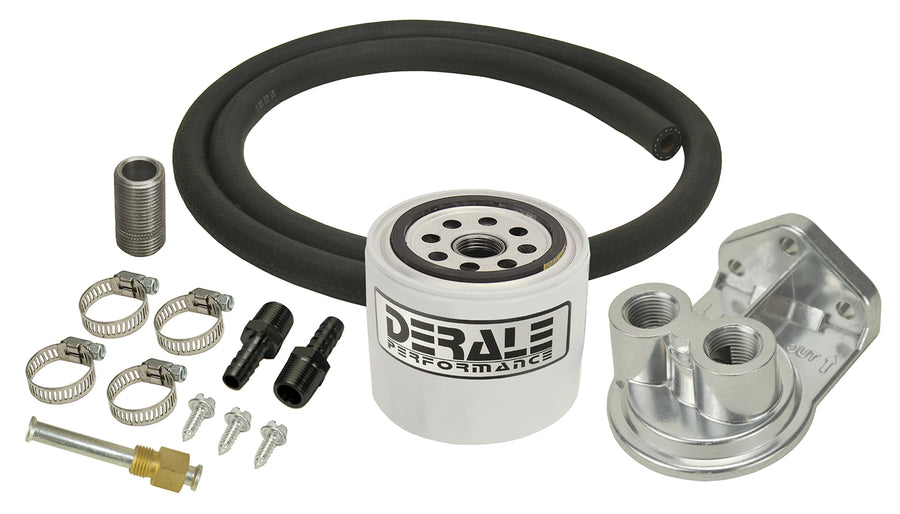

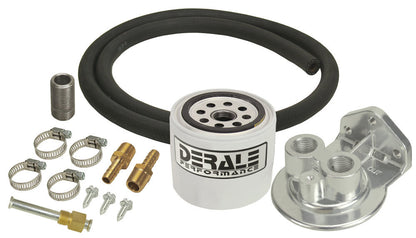

- Included: Remote filter mount, filter, 4 ft hose, mounting hardware
- Part number: 13090
FAQ
What does the Derale 13090 kit do?
It adds a remote spin-on transmission filter to catch contaminants that get past the factory screen filter and adds fluid capacity to help moderate temperature.
What is included with the 13090?
The standard kit includes the remote filter mount, the filter, 4 feet of 3/8 inch hose, and mounting hardware.
What is the filter micron rating of the 13090?
The filter has a nominal rating of 21 microns, with a bypass valve that opens at 8 to 11 PSI and an anti-drain back valve.
What connections does the 13090 use?
It uses 3/8 inch NPT ports with 3/8 inch hose barbs, and the filter thread is 3/4 inch-16.
