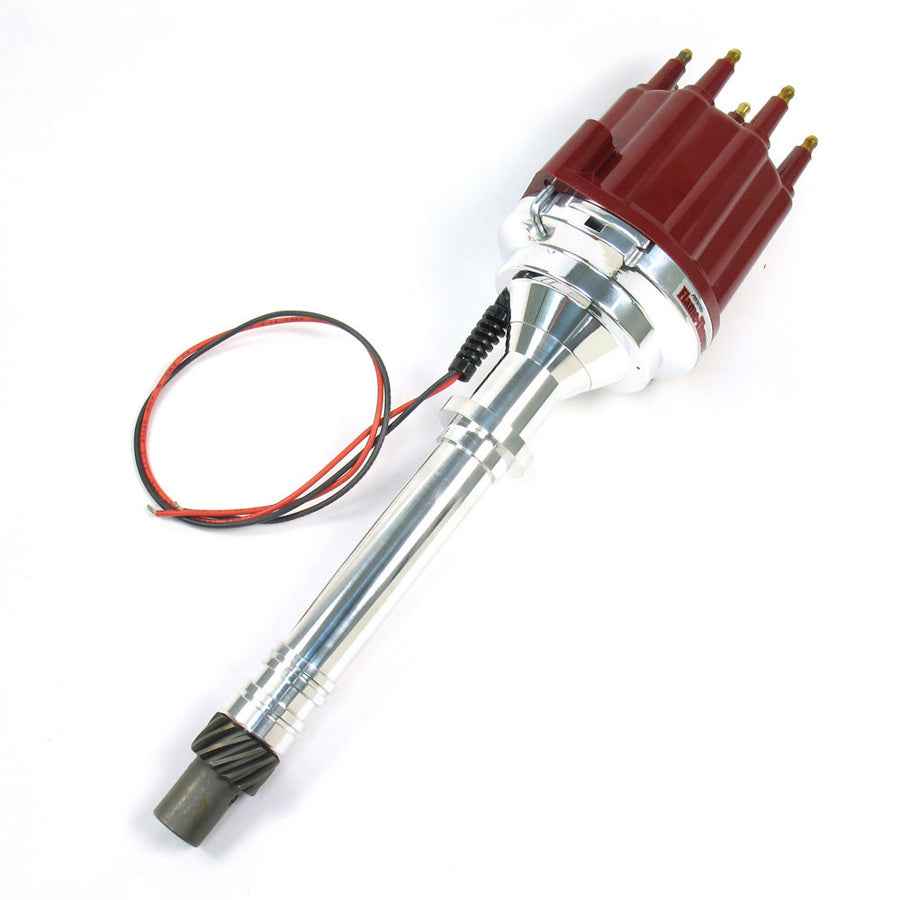

The Pertronix Flame-Thrower Plug-N-Play billet distributor is machined from 6061-T6 billet aluminum for Chevrolet small block and big block V8 engines. It comes with a factory installed Ignitor II module using Hall Effect triggering and runs directly from 12 volts with no external box. This version uses mechanical advance with a red HEI style male cap, and it rides on an upper ball bearing with a long bronze lower bushing.
- Type: Flame-Thrower Plug-N-Play billet distributor
- Ignition: Ignitor II, Hall Effect trigger
- Advance: mechanical
- Cap: HEI style terminal (male tower), red
- Housing: 6061-T6 billet aluminum
- Bearings: upper ball bearing, bronze lower bushing
- Voltage: 12 volt, negative ground
- Fits: Chevrolet small block and big block V8
- Sold as: each
- Part number: D100811
FAQ
Does D100811 use vacuum advance?
No. This version uses mechanical advance only and comes with a red HEI style male cap.
How is D100811 different from D100810?
They are the same mechanical advance Ignitor II billet distributor except for cap color. D100811 has a red cap and D100810 has a black cap.
What engines does the D100811 fit?
It fits Chevrolet small block and big block V8 engines. Because it is designed around the engine family, no vehicle specific programming is required for a standard installation.
Is it 12 volt negative ground?
Yes. Like the Pertronix distributor line, part D100811 is built for 12 volt negative ground systems.
