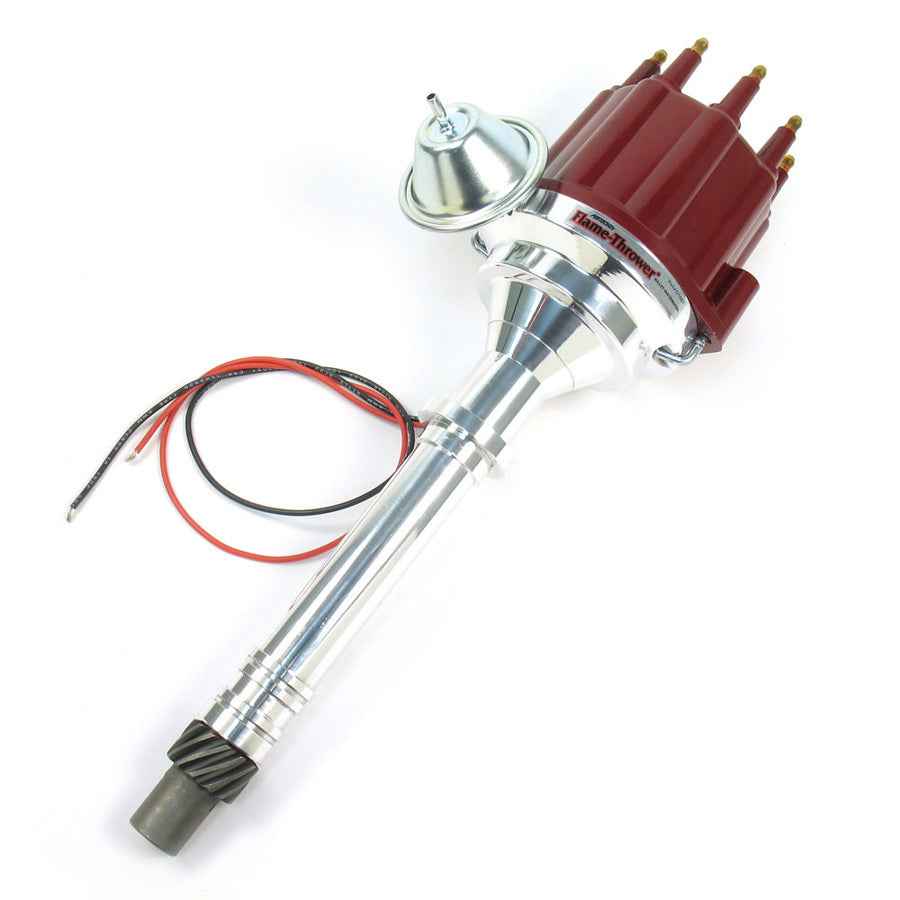

The Pertronix Flame-Thrower Plug-N-Play billet distributor is machined from 6061-T6 billet aluminum for Chevrolet small block and big block V8 engines. It ships with a factory installed Ignitor II module using Hall Effect triggering and runs directly from 12 volts with no external box. This version combines vacuum and mechanical advance for a tunable curve with a red HEI style male cap, and it rides on an upper ball bearing with a long bronze lower bushing.
- Type: Flame-Thrower Plug-N-Play billet distributor
- Ignition: Ignitor II, Hall Effect trigger
- Advance: vacuum and mechanical
- Cap: HEI style terminal (male tower), red
- Housing: 6061-T6 billet aluminum
- Bearings: upper ball bearing, bronze lower bushing
- Voltage: 12 volt, negative ground
- Fits: Chevrolet small block and big block V8
- Sold as: each
- Part number: D100711
FAQ
Does D100711 have vacuum advance?
Yes. This version uses both vacuum and mechanical advance and comes with a red HEI style male cap.
What is the difference from D100710?
The two are the same vacuum and mechanical advance billet distributor except for cap color. D100711 has a red cap and D100710 has a black cap.
What engines does the D100711 fit?
It fits Chevrolet small block and big block V8 engines. Because it is designed around the engine family, no vehicle specific programming is required for a standard installation.
Is it 12 volt negative ground?
Yes. Like the Pertronix distributor line, part D100711 is built for 12 volt negative ground systems.
