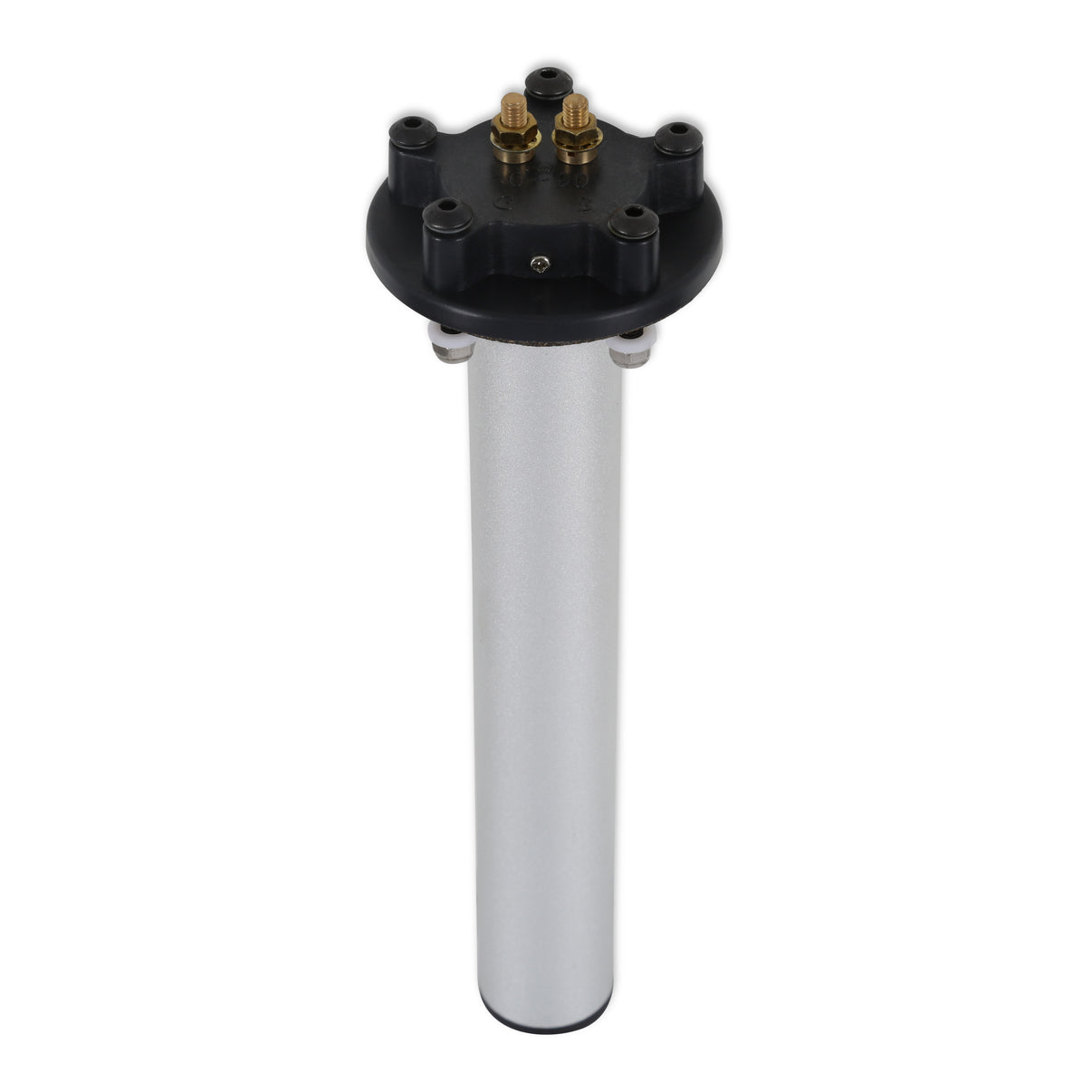

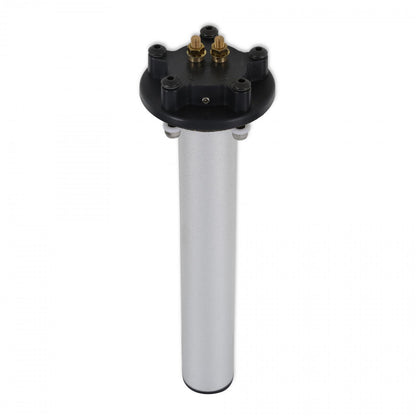

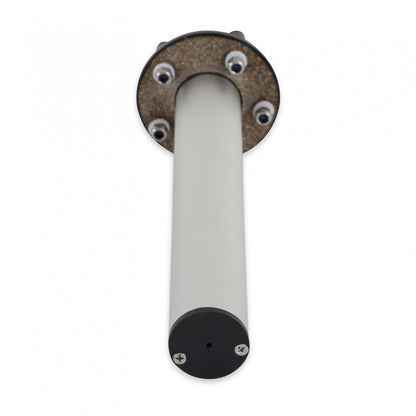

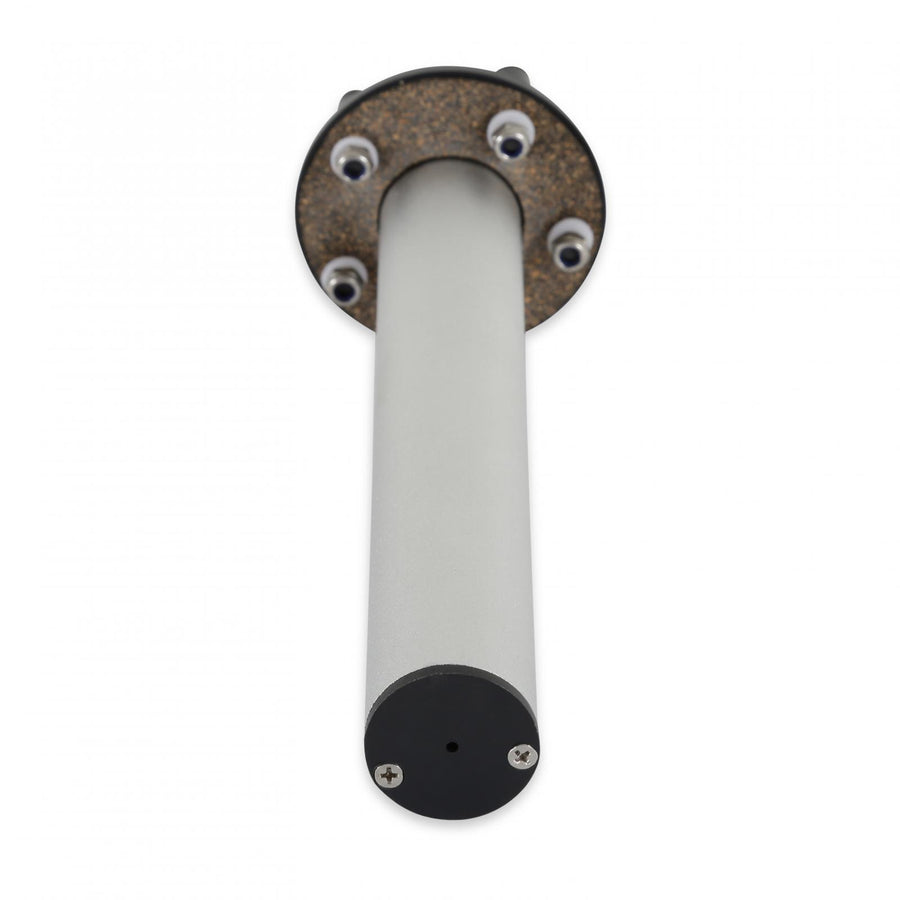

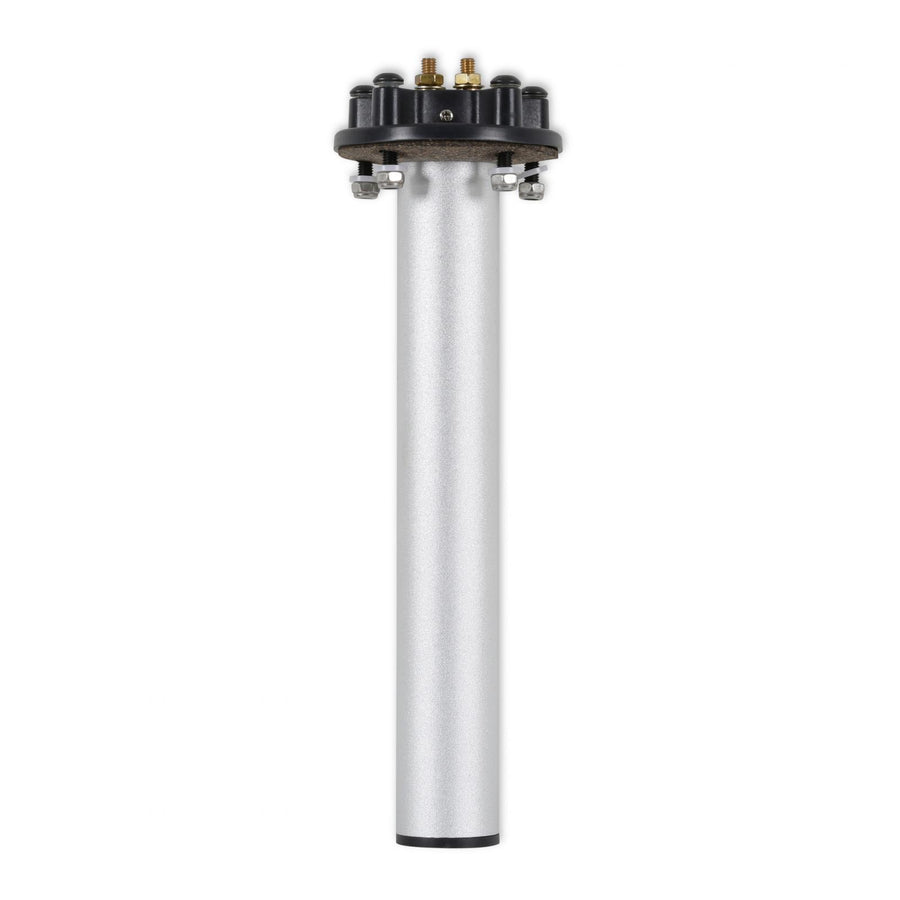

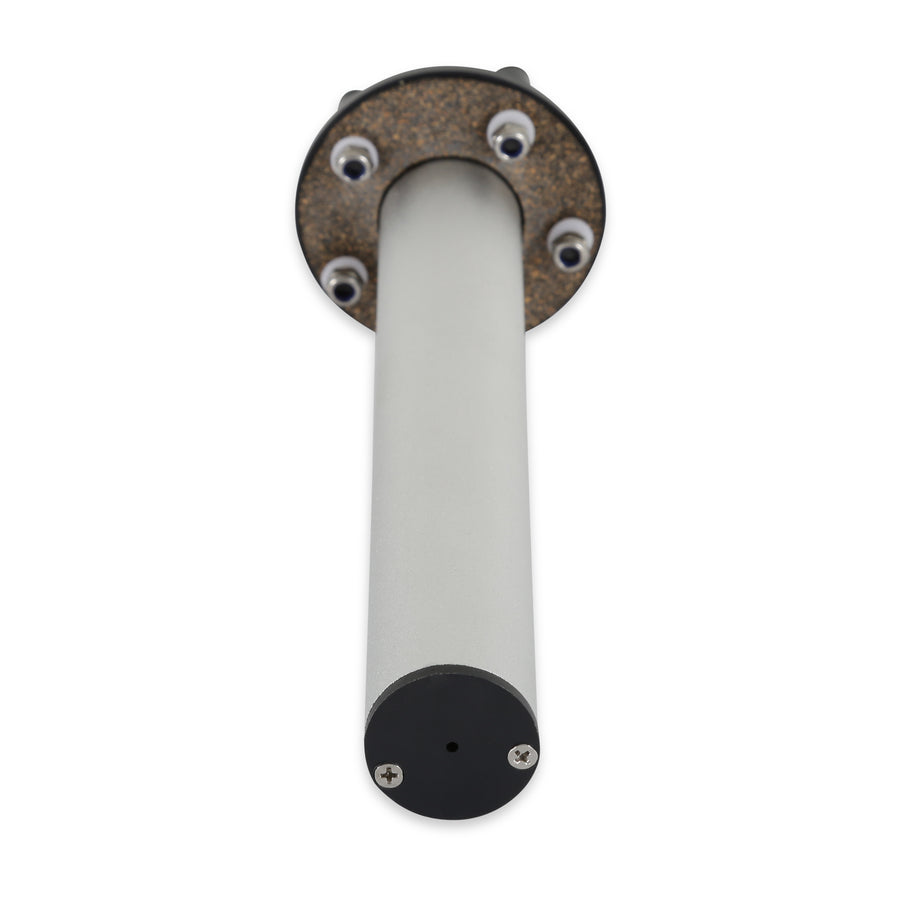

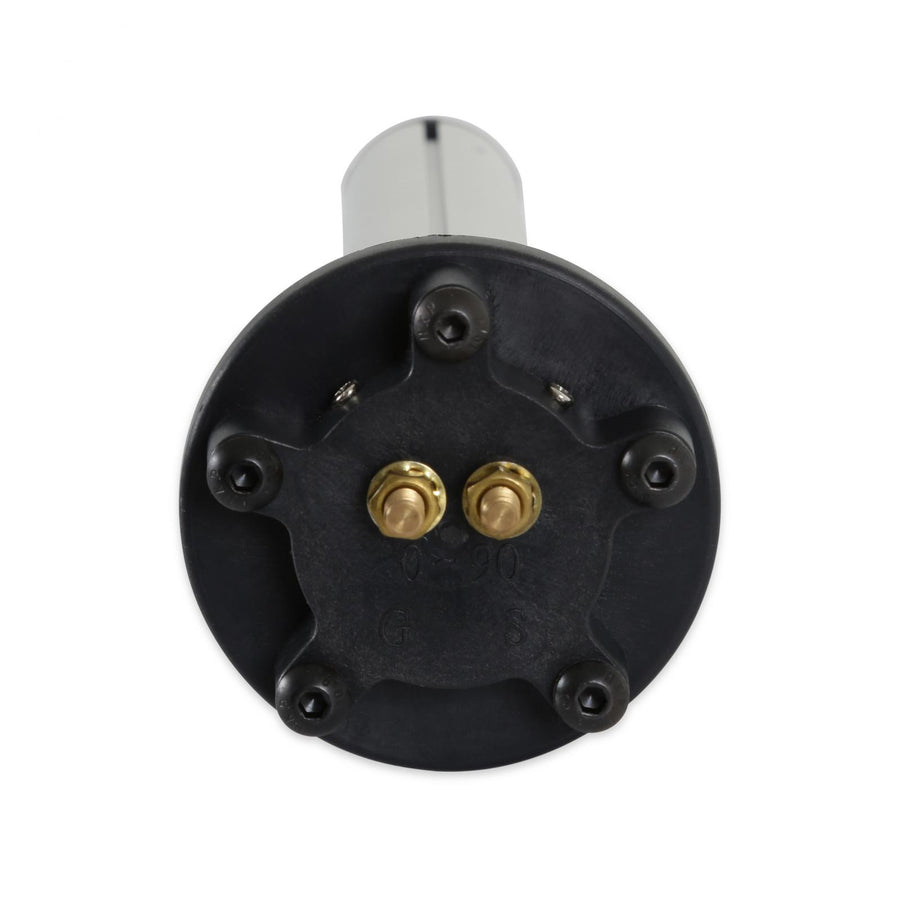

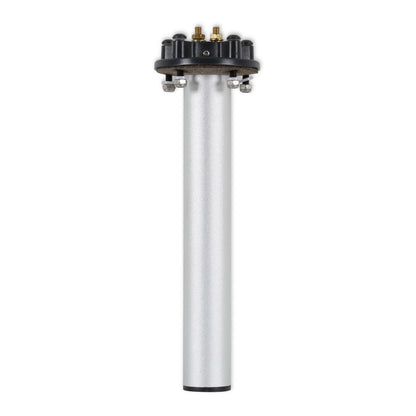

This fuel gauge level sender is designed for Holley's 5 and 10-gallon aluminum fuel cells, which use -10AN ORB fittings on the feed, return, and vent ports and are built from 2.5mm thick 5052 TIG welded aluminum with triangulated mounting tabs. The sender's tube design acts as a damper for consistent readings and eliminates the need for a float arm.
Specifications:
- Category: Air and Fuel Delivery
- Product Type: Fuel Gauge Level Sender
- Sub Category: Fuel Pumps and Related Components
- Material: Mild Steel
- Depth: 8-inch
- Resistance: 0-90 Ohm (empty-full)
- Mounting Pattern: Standard SAE 5-bolt
- Hardware Included: Yes
- Part Number: 19-227
Compatible with most aftermarket gauges and with single and dual in-tank fuel pump modules. Comes with a gasket and mounting hardware. Note: the anti-slosh foam in Holley's fuel cells that this sender mates with is not E-85 compliant and should be removed if using that fuel type.
Compliance: This part is legal for sale and use on Racing Use Only Vehicles — competition vehicles that are not registered and never operated on the street. It is against the law to install this part on an Emissions Controlled Vehicle (1966-and-newer California-certified or 1968-and-newer federally certified vehicles).
FAQ
What fuel cell sizes is this sender designed for?
Holley's 5 and 10-gallon aluminum fuel cells (8-inch depth).
What is the resistance range of this sender?
0-90 Ohms, empty to full, compatible with most aftermarket gauges.
What mounting pattern does this sender use?
A standard SAE 5-bolt mounting pattern, with gasket and hardware included.
Is this part legal for street use?
No, it's legal for sale and use only on Racing Use Only vehicles that are not registered or operated on the street.
