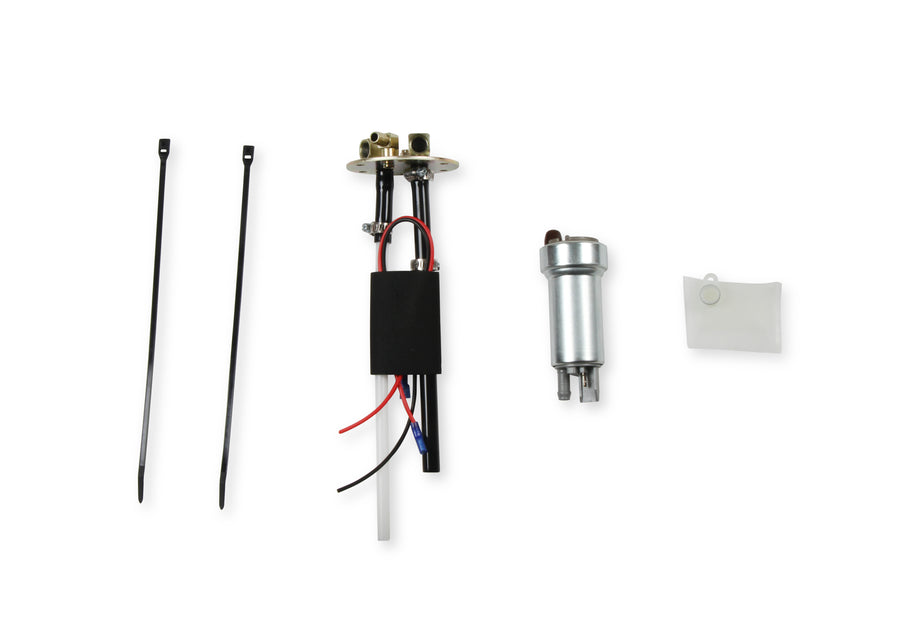

This 400 LPH electric fuel pump assembly is built for Sniper EFI fuel tanks and includes a genuine Walbro fuel pump with oven-brazed fittings rated up to 100 psi.
Specifications:
- Product Type: Fuel Pump Module Assembly
- Flow Rate: 400 LPH
- Line Size: 1/4" NPT Supply and Return
- Pressure Rating: Up to 100 PSI
- Material: Steel, heavy 10-gauge no-warp mounting plate
- Finish: Gold Iridited
- Fuel Type: Gasoline
- Part Number: 19-168
Includes an in-tank wire harness with barbed vent fittings; mounting screws and gasket are available separately (use 19-170 for GM A-Body tanks such as Chevelle/GTO, or 19-169 for other EFI fuel tanks). When wiring, tighten the upper jam nut in 1/4-turn increments with a 9mm wrench — do not overtighten.
FAQ
What flow rate does this fuel pump assembly deliver?
It's rated at 400 LPH using a genuine Walbro fuel pump.
Are mounting screws and a gasket included?
No, they are available separately — kit 19-170 for GM A-Body tanks (Chevelle, GTO, etc.) or 19-169 for other EFI fuel tanks.
What line size does it use?
It uses 1/4" NPT supply and return lines.
Is there a caution for wiring the pump?
Yes. Tighten the wire pass-through jam nut with a 9mm wrench in 1/4-turn increments until snug — overtightening can break the fitting or cause a leak.
