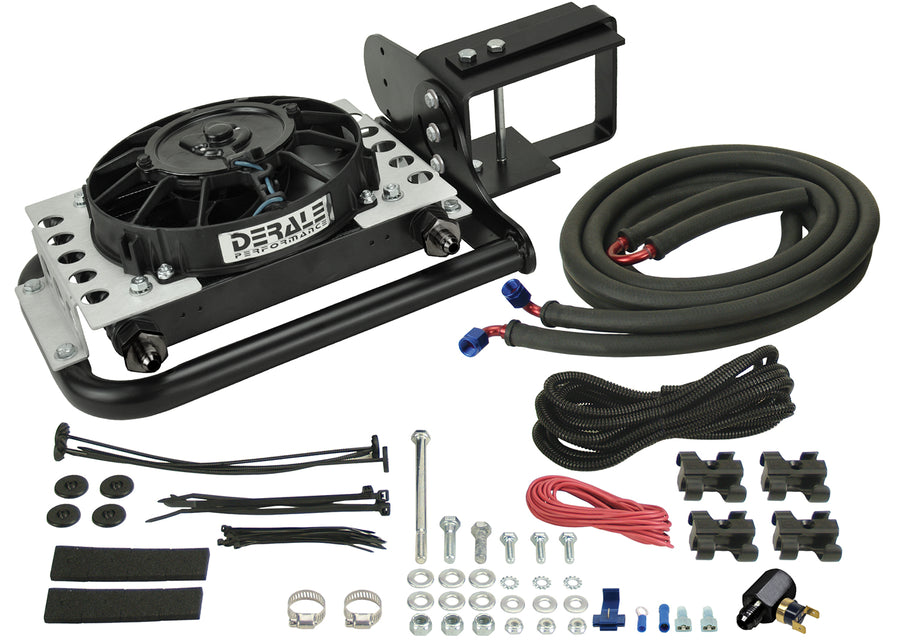

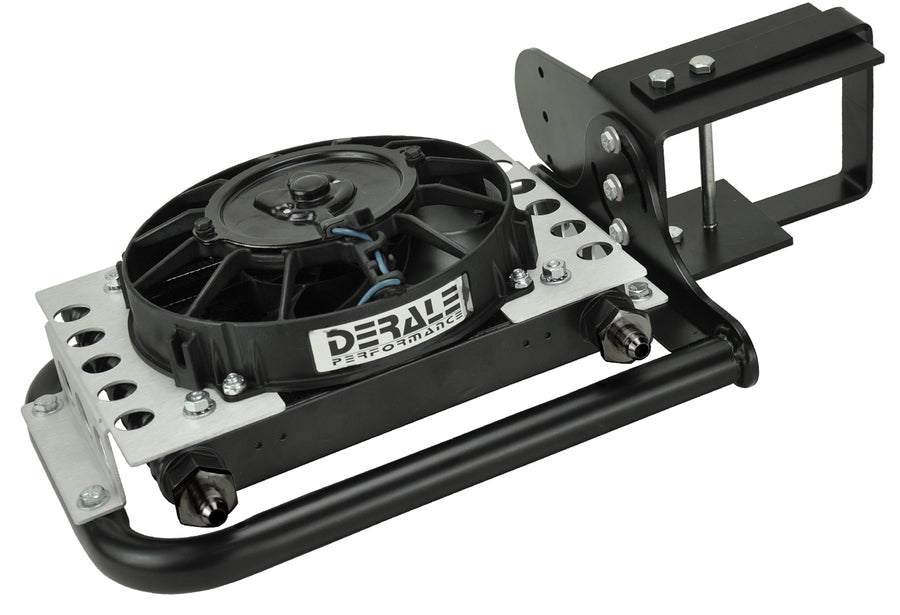

The Derale 20561 is a direct-fit remote transmission cooler kit built for the Jeep Wrangler TJ and YJ. It pairs an efficient plate and fin cooler with an 8-inch thermostatically controlled Tornado fan, so the transmission stays cool even at low speeds and in off-road situations where natural airflow is limited. The assembly mounts to the frame rail with no drilling and rotates nearly 90 degrees, so it can sit vertically for street driving or tuck horizontally out of the way off-road. Derale states the kit reduces transmission fluid temperatures by 30 to 40 degrees F.
Verified fitment: 1987-2006 Jeep Wrangler TJ and YJ.
Specifications:
- Type: direct-fit remote transmission cooler kit
- Cooler: plate and fin
- Fan: 8" thermostatically controlled Tornado, 500 CFM, 4.8 amp draw, reversible puller
- Dimensions: 13-1/4" W x 10-3/4" H x 5-1/2" D
- Hose lengths: 72-1/2" feed, 82-1/4" return

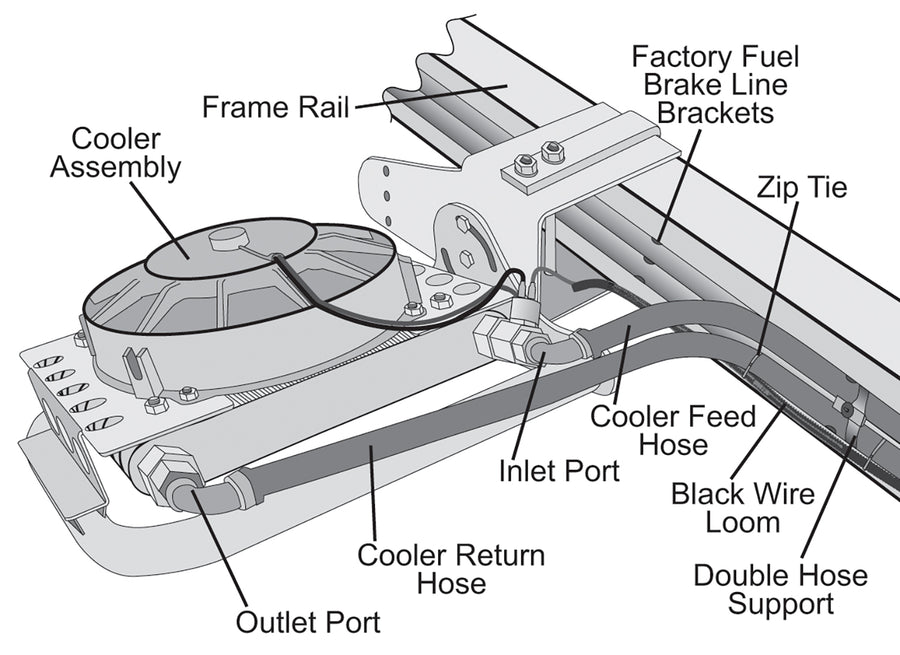

- Mounting: frame rail, no drilling required; rotates nearly 90 degrees
- Performance: reduces fluid temperatures by 30-40°F
- Part number: 20561
FAQ
What does the Derale 20561 kit fit?
It is a direct-fit kit for the 1987-2006 Jeep Wrangler TJ and YJ.
What is included?
It pairs a plate and fin transmission cooler with an 8" thermostatically controlled Tornado fan and the hardware to mount it to the frame rail.
Does installation require drilling?
No, the assembly mounts to the frame rail with no drilling required and can rotate nearly 90 degrees between a vertical and horizontal position.
How much does it lower fluid temperature?
Derale states it reduces transmission fluid temperatures by 30 to 40 degrees F.
