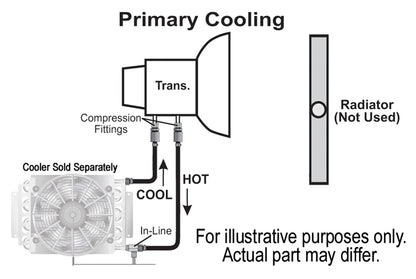

The Derale 13022 is a remote transmission cooler installation kit for 11/32 inch transmission cooler lines. It provides everything needed to plumb an auxiliary cooler into the factory lines, including a 180 degree in-line thermostat so the cooler circulates fluid only once it is warm. The kit uses 3/8 inch compression and hose barb fittings and comes with 10 feet of 11/32 inch OEM-spec hose plus mounting hardware.
Specifications:
- Type: Remote transmission cooler installation kit
- Cooler line size: 11/32 inch
- Thermostat: 180 degrees Fahrenheit in-line
- Cooler line compression fitting size: 3/8 inch
- Barb fitting size: 3/8 inch
- Hose: 11/32 inch, 10 ft

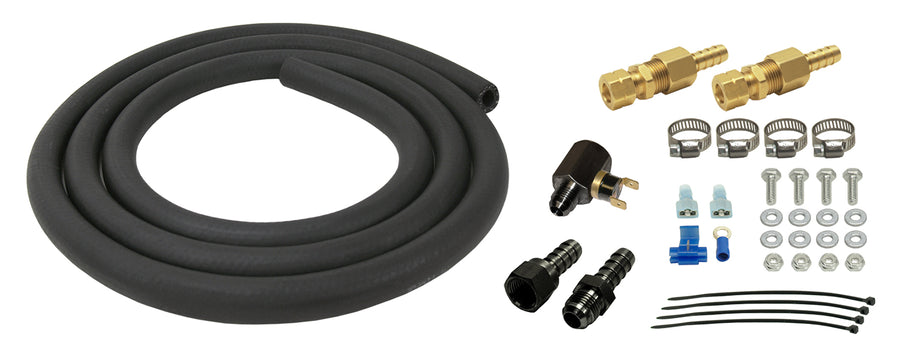

- Included: 180 degree in-line thermostat, two 3/8 inch hose barb fittings, two compression fittings, 10 ft of 11/32 inch hose, mounting hardware
- Part number: 13022
FAQ
What line size is the Derale 13022 for?
It is designed for 11/32 inch transmission cooler lines and uses 3/8 inch compression fittings to connect.
What is included with the 13022?
It comes with a 180 degree in-line thermostat, two 3/8 inch hose barb fittings, two compression fittings, 10 feet of 11/32 inch hose, and mounting hardware.
Why does the 13022 include a thermostat?
The 180 degree in-line thermostat holds fluid flow to the cooler until it warms up, which helps the transmission reach operating temperature.
