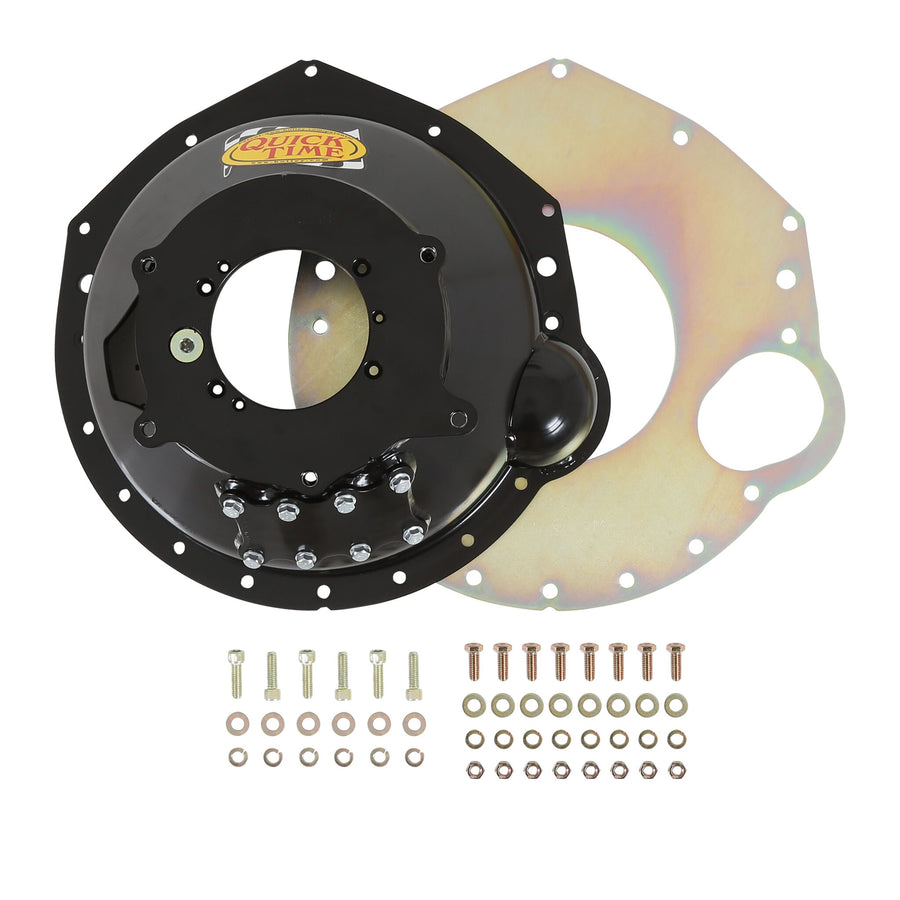

The Quick Time RM-6022W bellhousing connects small-block and big-block Chevy engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10, Tremec TKO, and Tremec TKX transmissions. This bellhousing is S.F.I. 6.1W (window) certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile and contains an adjustable clutch window. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin-forming process which results in a very high-strength material. This high material strength allows the Quick Time bellhousings to be lightweight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Quick Time QuickTime Bellhousing - Chevy RM-6022W
Specifications:
| Brand | Quick Time |
| Category | Transmission |
| Clutch Operation | Mechanical or Hydraulic |
| Color | Black |
| Emission Code | 5 |
| Engine | GM Big Block |
| Engine | Chevrolet Small Block Gen I |
| Engine Make | Chevrolet |
| Engine Plate | RM-6023-C |
| Flywheel | 153 Tooth |
| Flywheel | 168 Tooth |
| Height | 6.29 |
| 10 | Steel |
| part type | Transmission Bell Housing |
| Patented | Yes |
| Product Type | Bellhousing |
| SFI Approved | Yes |
| SFI Certification | 6.1W |
| Sub Category | Transmission Hard Parts |
| Transmission | TKO 500/600 GM |
| Transmission | Jerico |
| Transmission | T5 GM |
| Transmission | T10 |
| Transmission | Saginaw |
| Transmission | Bert Racing |
| Transmission | Richmond |
| Transmission | Falcon |
| Transmission | TKX GM |
| Transmission | Brinn Racing |
| Transmission | Muncie |
| Transmission Bore Diameter | 4.687 |
| Transmission Type | Manual |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Weight | 23 |
| Description_ABR | QUICTRANBELL |
| Description_SHO | Bell Housing |
| Description_INV | Chev 168 Tooth to Sag Bell WW |
| Description_ASC | Std LH Fork or Hyd. Bearing |
| Description_DES | QuickTime Bellhousing - Chevy |
| Description_EXT | Perfect fit for Big Block and Small Block Chevys with Muncie, Richmond, Saginaw, TKO, or TKX Transmissions - SFI 6.1W Certified |
| Description_MKT | The Quick Time RM-6022W bellhousing connects small-block and big-block Chevy engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10, Tremec TKO, and Tremec TKX transmissions. This bellhousing is S.F.I. 6.1W (window) certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile and contains an adjustable clutch window. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin-forming process which results in a very high-strength material. This high material strength allows the Quick Time bellhousings to be lightweight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included) |
| Description_FAB | Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings 100% built in the USA Patent on 16 points of Bellhousing Design & Process Adjustable clutch window with a 6.1W SFI Certification |
