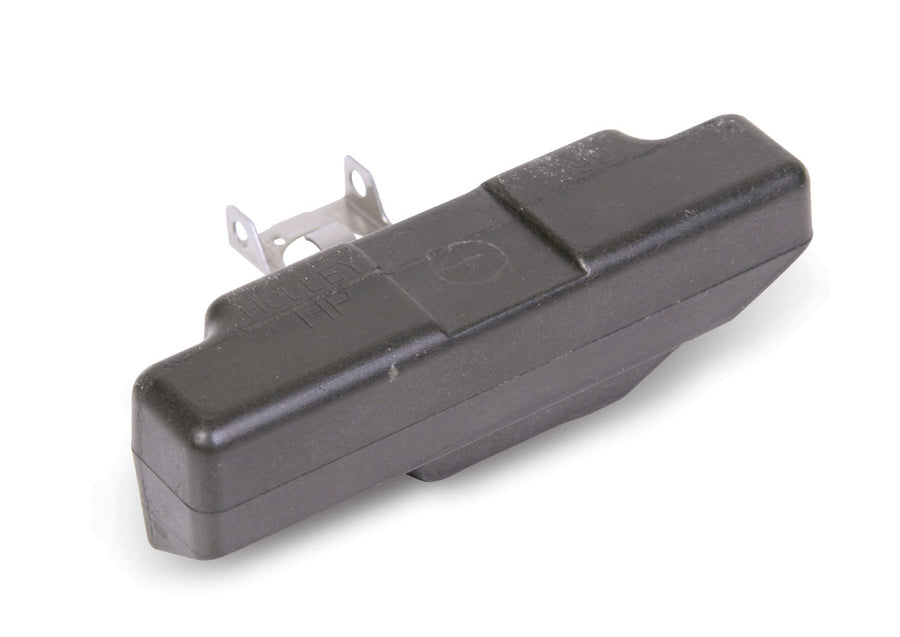

This wedged float is built for circle track racing. Its wedge shape lets fuel that sloshes up the side of the bowl during a turn ride up the wedge, keeping the float open instead of closing off prematurely. It also features a reinforced float bracket assembly that allows more fuel to flow through the bracket, especially when using a bottom feed needle and seat.
Specifications:
- Category: Air and Fuel Delivery
- Sub Category: Carburetion
- Product Type: Float
- Pivot Type: Center Pivot (primary)
- Material: Nitrophyl
- Weight: Approx. 12.8 to 13.2 grams
- Part Number: 116-13
FAQ
Why does this float have a wedge shape?
The wedge shape lets fuel that sloshes up the bowl during a turn ride up the wedge, keeping the float open instead of closing prematurely -- a necessity for circle track racing.
What is this float's approximate weight?
It weighs approximately 12.8 to 13.2 grams.
What material is the float made from?
It is made from Nitrophyl, a registered trademark of the Rogers Corporation.
What is the part number for this float?
This Holley Primary Wedged Float is part number 116-13.
