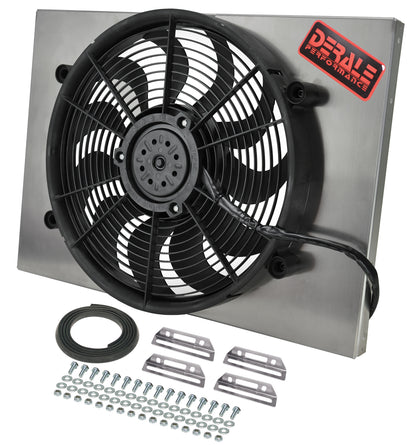

The Derale Powerpack mounts a single high output 17 inch two speed RAD electric fan on an aluminum shroud for primary engine cooling. The two speed 265 watt fan moves 2400 CFM on high and 1800 CFM on low through a patented ultra quiet skewed blade design, and the 3 inch overall depth allows a precise fit. The raw aluminum shroud can be polished, painted, or anodized. The fan is for puller (engine side) installation.
Specifications:
- Type: Single electric RAD fan and aluminum shroud powerpack
- Fan configuration: Single 17 in two speed fan
- Airflow: 2400 CFM high, 1800 CFM low
- Amp draw: 23.5 A high, 17.4 A low
- Motor: 265 watt high output, two speed
- Shroud: Raw aluminum; polish, paint, or anodize
- Overall dimensions: 24 in W x 17 in H x 3 in D (fan depth 1-1/8 in)
- Orientation: Puller (engine side) only
- Included: Mounting brackets and complete mounting hardware
- Part number: 16828
FAQ
What is included with the Derale 16828?
A single high output 17 inch two speed RAD fan mounted on an aluminum shroud, plus mounting brackets and complete mounting hardware.
How much air does it move?
2400 CFM on high and 1800 CFM on low, driven by a 265 watt two speed motor.
How does the 16828 differ from the 16822?
Both use a single 17 inch two speed fan rated 2400/1800 CFM, but the 16828 shroud measures 24 in wide by 17 in tall by 3 in deep, while the 16822 shroud is 22-1/4 in wide by 17-5/8 in tall by 3 in deep.
Is it a puller or pusher fan?
It is a puller fan for engine side installation only.
