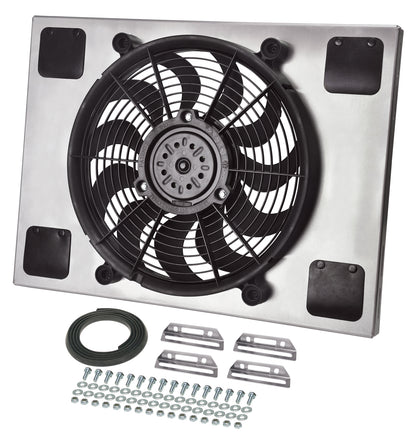

The Derale Powerpack mounts a single high output 14 inch two speed RAD electric fan on a thin aluminum shroud for primary engine cooling. The two speed 265 watt fan moves 2100 CFM on high and 1500 CFM on low through a patented ultra quiet skewed blade design, and the compact low profile allows a precise fit in tight spaces. The raw aluminum shroud can be polished, painted, or anodized. The fan is for puller (engine side) installation.
Specifications:
- Type: Single electric RAD fan and aluminum shroud powerpack
- Fan configuration: Single 14 in two speed fan
- Airflow: 2100 CFM high, 1500 CFM low
- Amp draw: 22 A high, 16.2 A low
- Motor: 265 watt high output, two speed
- Shroud: Raw aluminum; polish, paint, or anodize
- Overall dimensions: 23-7/16 in W x 15-7/16 in H x 2-3/4 in D (shroud depth 1-1/8 in)
- Orientation: Puller (engine side) only
- Included: Mounting brackets and complete mounting hardware
- Part number: 16827
FAQ
What is included with the Derale 16827?
A single high output 14 inch two speed RAD fan mounted on an aluminum shroud, plus mounting brackets and complete mounting hardware.
How much air does it move?
2100 CFM on high and 1500 CFM on low, driven by a 265 watt two speed motor.
How thick is the assembly?
It is a thin 2-3/4 in deep overall, which helps it fit in tight engine bays. The shroud measures 23-7/16 in wide by 15-7/16 in tall.
Is it a puller or pusher fan?
It is a puller fan for engine side installation only.
