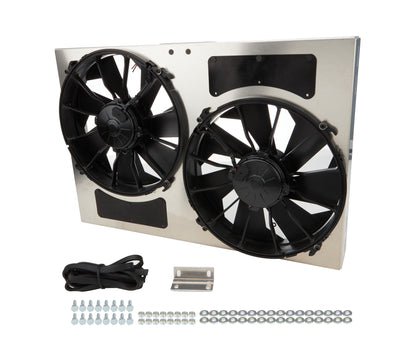

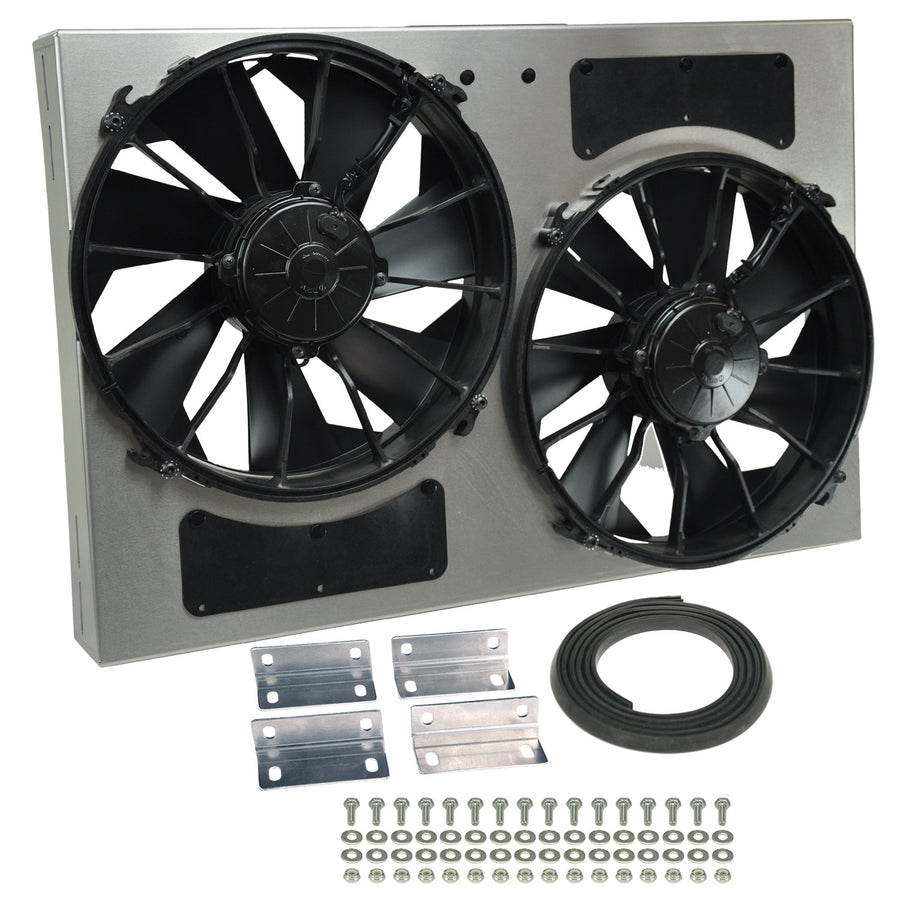

The Derale Powerpack pairs two high output 12 inch RAD electric fans on an aluminum shroud sized to fit common radiator cores for primary engine cooling. The two fans move 4000 CFM combined through a patented ultra quiet skewed blade design driven by 300 watt motors, and stator flow directors help channel the air. The raw aluminum shroud can be polished, painted, or anodized, and adjustable brackets provide multiple mounting options for a precise fit. The fans are for puller (engine side) installation.
Specifications:
- Type: Dual electric RAD fan and aluminum shroud powerpack
- Fan configuration: Dual 12 in fans
- Airflow: 2000 CFM per fan, 4000 CFM total
- Amp draw: 24.8 A per fan
- Motors: 300 watt high output
- Shroud: Raw aluminum with stator flow directors; polish, paint, or anodize

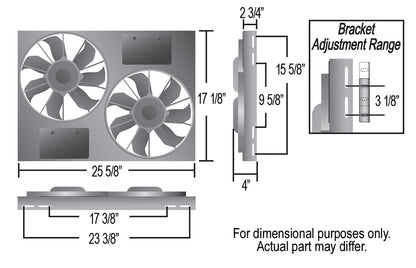

- Overall dimensions: 25-5/8 in W x 17-1/8 in H x 4 in D (fan depth 2-3/4 in)
- Orientation: Puller (engine side) only
- Included: Adjustable mounting brackets and complete mounting hardware
- Part number: 16826
FAQ
What is the Derale 16826 Powerpack?
A complete dual fan cooling assembly with two high output 12 inch RAD fans on one aluminum shroud for primary engine cooling.
How much air does it move?
4000 CFM total, about 2000 CFM per fan, driven by 300 watt high output motors.
How is the 16826 shroud different from the 16825?
Both use dual 12 inch fans and move 4000 CFM, but the 16826 shroud is taller at 17-1/8 in high versus 15-1/8 in for the 16825. Both are 25-5/8 in wide and 4 in deep overall.
Is it a puller or pusher?
It is a puller fan for engine side installation only.
