The NOS LS1 plate system uses a billet plate with no spray bars. This unique design allows better atomization which prevents fuel puddles in your manifold and provides the best cylinder to cylinder distribution for maximum power. This is no ordinary low HP kit. The plate and solenoids supplied will easily support 200 HP.
NOS/Nitrous Oxide System NOS Plate Wet Nitrous System - GM 05168NOS
Specifications:
| Adjustable | Yes |
| 1674 | Blue |

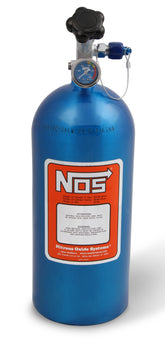

| Bottle Included | Yes |
| Bottle Material | 6061 T-6 Aluminum |
| Bottle Size | 10 lb |
| Bottle Valve | Super Hi-Flo |
| Bracket Material | Steel |
| Brackets Included | Yes |
| Brand | NOS |
| Category | Air and Fuel Delivery |
| Color | Blue |
| Delivery Style | EFI Spacer Plate |
| Emission Code | 4 |
| Feed Line Size | 6AN |
| Fuel Solenoid | Cheater |
| Included Jetting Horsepower | 100, 125, 150 |
| Jet Sizes Included | 100, 125, 150 hp |
| Jet Style | Flare |
| Material | 6061-T6 Aluminum |
| Max Horsepower | 200 |
| Nitrous Bottle Capacity | 10 lbs |
| Nitrous Solenoid | Super ProShot |
| Number of Solenoids | 2 |
| part type | Nitrous Oxide Injection System Kit |
| Plate Bolt Pattern | 3 bolt |
| Plate Diameter | 80 mm |
| Plate Flange | GM 3-Bolt LS |
| Plate Height | 1/2 inch |
| Plate Included | Yes |
| Plate Thickness | 1/2 inch |
| Product Type | Nitrous System |
| Solenoid Top Cover Color | Blue/Red |
| Style | Wet |
| Sub Category | Service Kits |
| System Style | Wet |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Description_ABR | NOSNITROUS |
| Description_SHO | Wet Nitrous System |
| Description_INV | LS1 KIT |

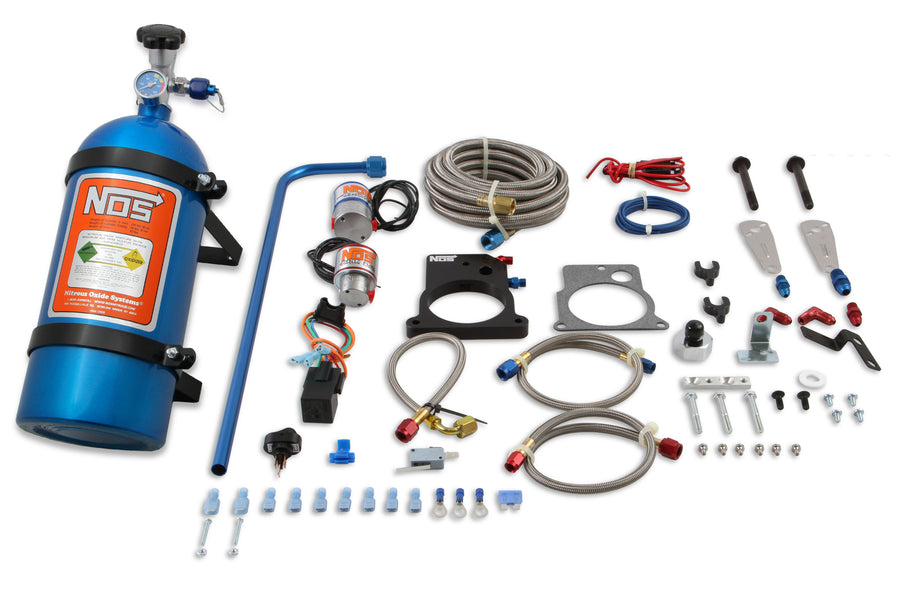

| Description_ASC | Kit includes stainless jets for 100,125 and 150 HP, -6 AN nitrous line, large nitrous and fuel solenoids, throttle body gaskets and bolts, Corvette micro-switch bracket, fuel and nitrous hoses, a 10 lb bottle and various wiring components to complete installation. |
| Description_DES | NOS Plate Wet Nitrous System - GM |
| Description_EXT | 1998-2002 Camaro and Firebird with LS1. Blue system includes 10lb bottle, Plate, and all installation items |
| Description_MKT | The NOS LS1 plate system uses a billet plate with no spray bars. This unique design allows better atomization which prevents fuel puddles in your manifold and provides the best cylinder to cylinder distribution for maximum power. This is no ordinary low HP kit. The plate and solenoids supplied will easily support 200 HP. |
| Description_FAB | Adjustable to 200 HP Includes required hardware for most applications On demand power doesn''t affect daily driving characteristics Best "horsepower per dollar" modification available |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1998 | Chevrolet | Camaro | Z28 | |
| 1999 | Chevrolet | Camaro | Z28 | |
| 2000 | Chevrolet | Camaro | Z28 | |
| 2001 | Chevrolet | Camaro | Z28 | |
| 2002 | Chevrolet | Camaro | Z28 | |
| 1998 | Chevrolet | Camaro | Z28 SS | |
| 1999 | Chevrolet | Camaro | Z28 SS | |
| 2000 | Chevrolet | Camaro | Z28 SS | |
| 2001 | Chevrolet | Camaro | Z28 SS | |
| 2002 | Chevrolet | Camaro | Z28 SS | |
| 1997 | Chevrolet | Corvette | Base | |
| 1998 | Chevrolet | Corvette | Base | |
| 1999 | Chevrolet | Corvette | Base | |
| 2000 | Chevrolet | Corvette | Base | |
| 2001 | Chevrolet | Corvette | Base | |
| 2002 | Chevrolet | Corvette | Base | |
| 1998 | Chevrolet | Corvette | Indianapolis 500 Pace Car | |
| 2001 | Chevrolet | Corvette | Z06 | |
| 2002 | Chevrolet | Corvette | Z06 | |
| 1998 | Pontiac | Firebird | Formula | |
| 1999 | Pontiac | Firebird | Formula | |
| 2000 | Pontiac | Firebird | Formula | |
| 2001 | Pontiac | Firebird | Formula | |
| 2002 | Pontiac | Firebird | Formula | |
| 1998 | Pontiac | Firebird | Trans Am | |
| 1999 | Pontiac | Firebird | Trans Am | |
| 2000 | Pontiac | Firebird | Trans Am | |
| 2001 | Pontiac | Firebird | Trans Am | |
| 2002 | Pontiac | Firebird | Trans Am |
