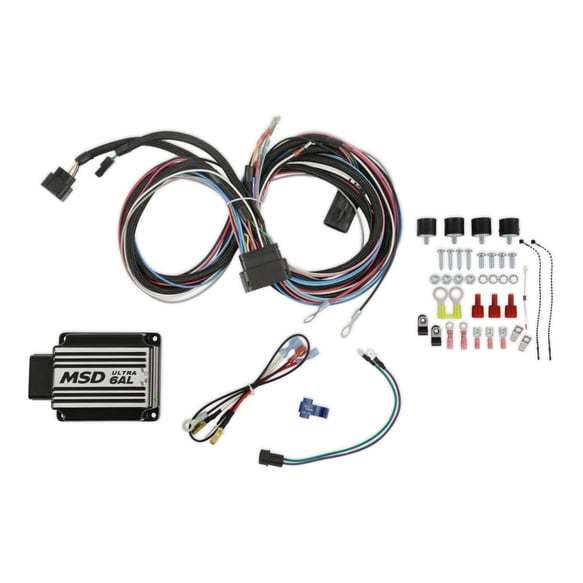

MSD MSD Ultra 6AL Ignition Control - Black 64233
Regular Price
$357.95
Press & drag to view
The Ultra 6AL greatly expands on the capabilities of the 6-series line with three rev limiters (Launch, Burnout, and Step Retard activation) and is wirelessly controlled from a smart phone via the "MSD Ultra 6AL" app. A Programmable Step Retard (up to 30 degrees) is available for: On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation. High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation. Mobile app available settings include Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value.
MSD MSD Ultra 6AL Ignition Control - Black 64233
Specifications:
| 43 | Female |
| 342 | 1 |
| 3390 | Performance |
| 31 | 3.05 |
| Ignition Type | Performance |
| 14 | 11 |
| 349 | Surface Mount |
| 30 | Yes |
| 44 | Male |
| 42 | 20 |
| 24 | 10.1 |
| Brand | MSD |
| Category | Ignition |
| Color | Black |
| Current Draw | 1000 |
| Emission Code | 4 |
| Features | Rev Limiter |
| Primary Voltage | 520-540 |
| Product Type | Digital 6AL Ignition Control Box w/Rev Control |
| Secondary Voltage | 45,000 |
| Sub Category | Control Modules |
| Voltage Required | 12-15 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight and Size | 3.3 x 3.8 - 344 grams |
| Maximum RPM | 15,000 |
| Spark Energy (mJ per spark) | 135 - 150 |
| 43 | Female |
| 342 | 1 |
| 3390 | Performance |
| 31 | 3.05 |
| Ignition Type | Performance |
| 14 | 11 |
| 349 | Surface Mount |
| 30 | Yes |
| 44 | Male |
| 42 | 20 |
| 24 | 10.1 |
| Brand | MSD |
| Category | Ignition |
| Color | Black |
| Current Draw | 1000 |
| Emission Code | 4 |
| Features | Rev Limiter |
| Primary Voltage | 520-540 |
| Product Type | Digital 6AL Ignition Control Box w/Rev Control |
| Secondary Voltage | 45,000 |
| Sub Category | Control Modules |
| Voltage Required | 12-15 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight and Size | 3.3 x 3.8 - 344 grams |
| Maximum RPM | 15,000 |
| Spark Energy (mJ per spark) | 135 - 150 |
| Description_INV | ULTRA 6AL - BLACK |
| Description_DES | MSD Ultra 6AL Ignition Control - Black |
| Description_EXT | Compact design - full MSD power. Bluetooth service only available within the USA and Canada. |
| Description_MKT | The Ultra 6AL Plus features boost dependent timing control up to 400 kPA (58 PSI / 4 BAR internal sensor), making it the ultimate ignition box for moderately boosted vehicles utilizing a blow-through or draw-through carburetor. Program through the "MSD Ultra 6AL" app or MSDView software via the integrated USB port. Programmable timing curves in 2D Plots or 3D tables (RPM vs Timing vs MAP Pressure) - you can plot the 3D graph and edit a table 20x20 either from Mobile app (phone) or from MSDView (laptop). Mobile app available settings: Step retard value, Launch RPM value, Burnout RPM value, and Max (Race) RPM Value. |
| Description_MKT | The new ground-breaking Ultra 6AL and Ultra 6AL Plus delivers full MSD power in a compact, feature dense, and lighter package! |
| Description_MKT | The Ultra 6AL greatly expands on the capabilities of the 6-series line with three rev limiters (Launch, Burnout, and Step Retard activation) and is wirelessly controlled from a smart phone via the "MSD Ultra 6AL" app. A Programmable Step Retard (up to 30 degrees) is available for: On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation. High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation. Mobile app available settings include Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value. |
| Description_FAB | Mobile app available settings: Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value |
| Description_FAB | 12-15 Volts, 7 Volt Start |
| Description_FAB | Operates on most 7 to 28 volt electrical systems |
| Description_FAB | High RPM operation and maximum output using the Blaster HVC, PN 8252 or HVC II, PN 8253 |
| Description_FAB | Fully protected against an open coil, shorted coil & open load |
| Description_FAB | Connects to points, magnetic pickups, and Hall/Crank Input distributors on 4,6, and 8-cylinder engines |
| Description_FAB | High conversion efficiency ensures minimal heat generation and maximum spark energy output with less current draw from the battery - (Highly efficient Ignition, minimum heat and max spark energy with less current draw) |
| Description_FAB | High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation |
| Description_FAB | 15,000 RPM with 14.4 Volts |
| Description_FAB | Consistently high spark energy of 135mJ to 150mJ for every firing, from idle to redline RPM |
| Description_FAB | Programmable Start Retard: 0, 10, 20 degrees |
| Description_FAB | Built-in tri-step RPM rev limit capability - Launch, Burnout, and Step Retard activation |
| Description_FAB | Powerful capacitive discharge of multiple sparks improves performance - quickens throttle response & improves starting |
| Description_FAB | The Ultra 6AL greatly expands on the capabilities of the 6-series line and is wirelessly controlled from a smart phone via the “MSD Ultra 6AL” app |
| Description_FAB | 0.8 Amps per 1,000 RPM |
| Description_FAB | Alerts and monitors available |
| Description_FAB | Tach Output |
| Description_FAB | MSD CAN communication for easy connectivity to MSDView using a CAN MSD Hub and Power Grid USB or CAN-USB Bridge 89982 product |
| Description_FAB | Increase spark series duration lasts for 18 of crankshaft rotation |
| Description_FAB | Programmable Step Retard (up to 30 degrees): On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation |
| Description_INV | ULTRA 6AL - BLACK |
| Description_DES | MSD Ultra 6AL Ignition Control - Black |
| Description_EXT | Compact design - full MSD power. Bluetooth service only available within the USA and Canada. |
| Description_MKT | The Ultra 6AL Plus features boost dependent timing control up to 400 kPA (58 PSI / 4 BAR internal sensor), making it the ultimate ignition box for moderately boosted vehicles utilizing a blow-through or draw-through carburetor. Program through the "MSD Ultra 6AL" app or MSDView software via the integrated USB port. Programmable timing curves in 2D Plots or 3D tables (RPM vs Timing vs MAP Pressure) - you can plot the 3D graph and edit a table 20x20 either from Mobile app (phone) or from MSDView (laptop). Mobile app available settings: Step retard value, Launch RPM value, Burnout RPM value, and Max (Race) RPM Value. |
| Description_MKT | The new ground-breaking Ultra 6AL and Ultra 6AL Plus delivers full MSD power in a compact, feature dense, and lighter package! |
| Description_MKT | The Ultra 6AL greatly expands on the capabilities of the 6-series line with three rev limiters (Launch, Burnout, and Step Retard activation) and is wirelessly controlled from a smart phone via the "MSD Ultra 6AL" app. A Programmable Step Retard (up to 30 degrees) is available for: On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation. High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation. Mobile app available settings include Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value. |
| Description_FAB | Mobile app available settings: Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value |
| Description_FAB | 12-15 Volts, 7 Volt Start |
| Description_FAB | Operates on most 7 to 28 volt electrical systems |
| Description_FAB | High RPM operation and maximum output using the Blaster HVC, PN 8252 or HVC II, PN 8253 |
| Description_FAB | Fully protected against an open coil, shorted coil & open load |
| Description_FAB | Connects to points, magnetic pickups, and Hall/Crank Input distributors on 4,6, and 8-cylinder engines |
| Description_FAB | High conversion efficiency ensures minimal heat generation and maximum spark energy output with less current draw from the battery - (Highly efficient Ignition, minimum heat and max spark energy with less current draw) |
| Description_FAB | High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation |
| Description_FAB | 15,000 RPM with 14.4 Volts |
| Description_FAB | Consistently high spark energy of 135mJ to 150mJ for every firing, from idle to redline RPM |
| Description_FAB | Programmable Start Retard: 0, 10, 20 degrees |
| Description_FAB | Built-in tri-step RPM rev limit capability - Launch, Burnout, and Step Retard activation |
| Description_FAB | Powerful capacitive discharge of multiple sparks improves performance - quickens throttle response & improves starting |
| Description_FAB | The Ultra 6AL greatly expands on the capabilities of the 6-series line and is wirelessly controlled from a smart phone via the “MSD Ultra 6AL” app |
| Description_FAB | 0.8 Amps per 1,000 RPM |
| Description_FAB | Alerts and monitors available |
| Description_FAB | Tach Output |
| Description_FAB | MSD CAN communication for easy connectivity to MSDView using a CAN MSD Hub and Power Grid USB or CAN-USB Bridge 89982 product |
| Description_FAB | Increase spark series duration lasts for 18 of crankshaft rotation |
| Description_FAB | Programmable Step Retard (up to 30 degrees): On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation |
