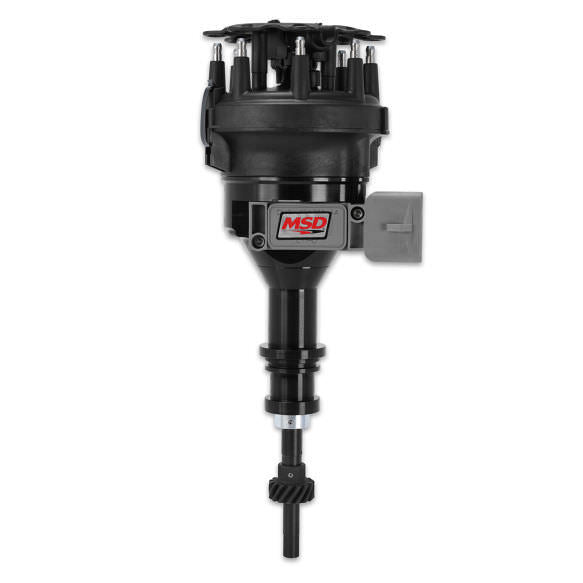

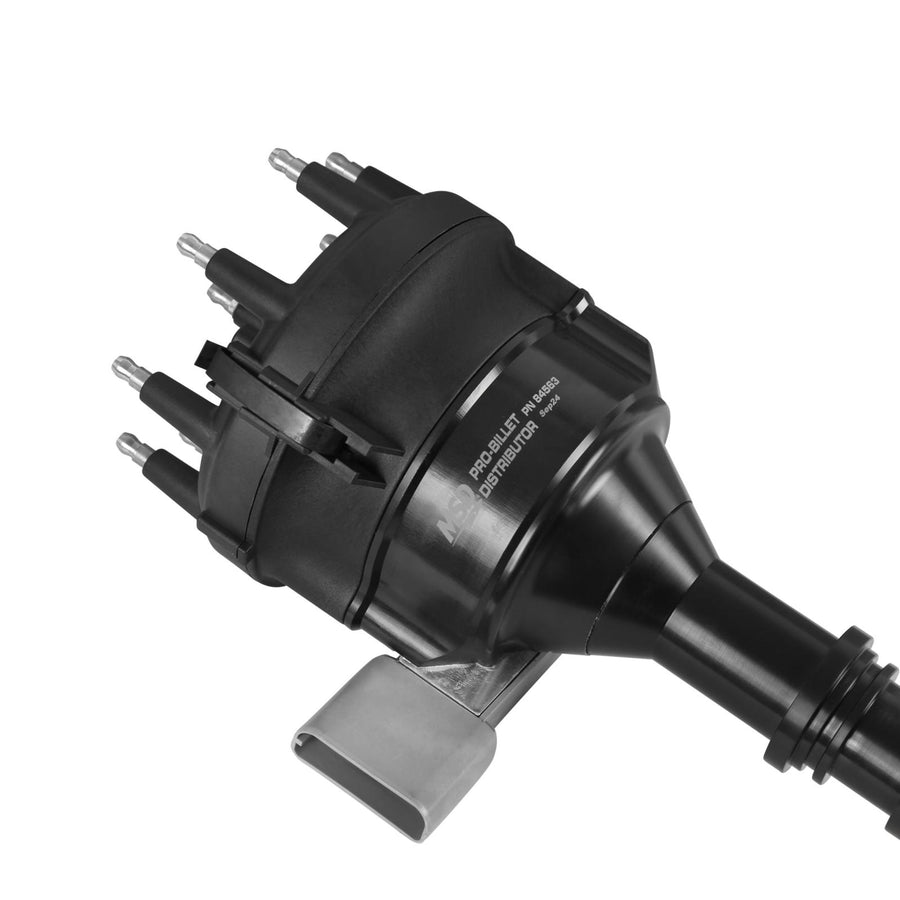

This Pro-Billet Distributor is a direct drop-in replacement for the stock distributor shaft in EFI Ford 5.0L applications, machined from a solid billet on a CNC machine into a precision housing. A sealed ball bearing guides the oversize, QPQ-coated polished steel shaft, and the stock-style trigger pickup accepts factory connectors for a bolt-in installation.
Specifications:
- Application: Ford 5.0L/302, 1986-1993 EFI
- Color: Black Anodized
- Distributor Type: OE Replacement
- Gear Material: Steel, Melonized QPQ Coated
- Part Number: 84563

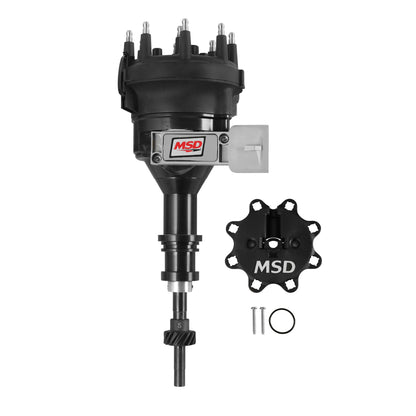

Supplied with a late-model distributor cap and rotor with brass terminals and a steel gear to work with the factory roller camshaft.
Compliance: This distributor carries California Air Resources Board (CARB) Executive Order EO# D-40-39, making it legal for sale and use on Emissions Controlled Vehicles in all 50 states when installed per MSD's application guide.
FAQ
What vehicles does the MSD 84563 distributor fit?
It is a direct drop-in replacement for 1986-1993 Ford 5.0L/302 EFI engines.
Is the MSD 84563 CARB legal?
Yes, it carries CARB Executive Order EO# D-40-39, making it legal for sale and use on Emissions Controlled Vehicles in all 50 states when installed per MSD's application guide.
Does the 84563 use the factory wiring connector?
Yes, it uses a factory-style ignition module that accepts the stock wiring connector.

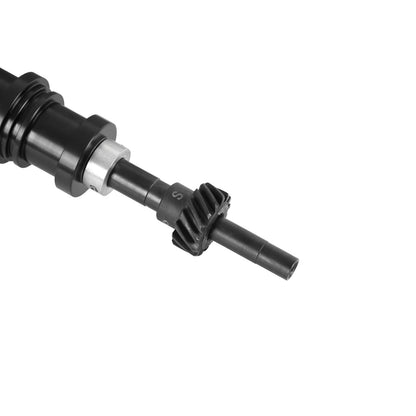

What gear does the 84563 include?
A steel gear designed to work with the factory roller camshaft.
