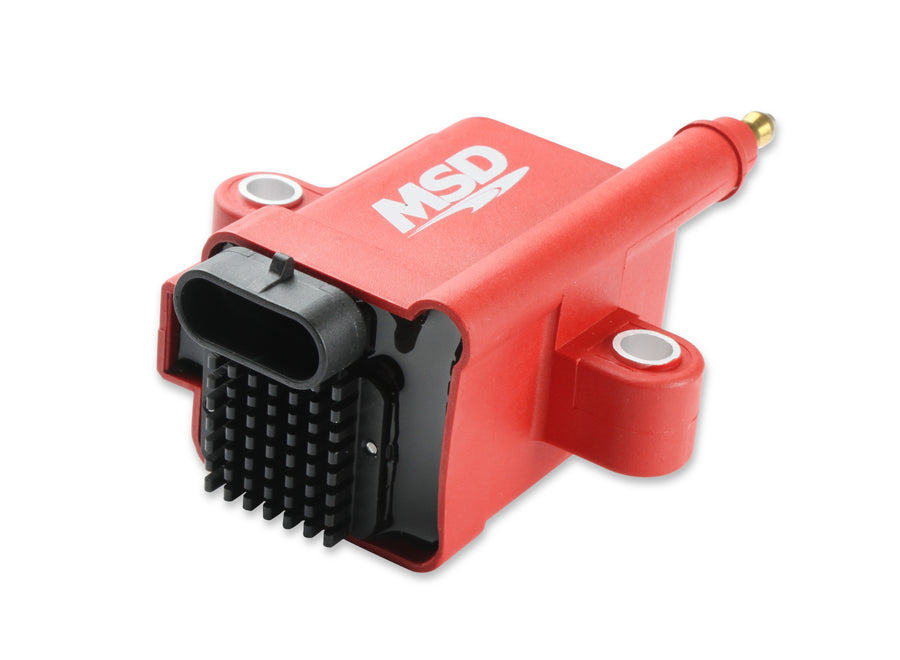

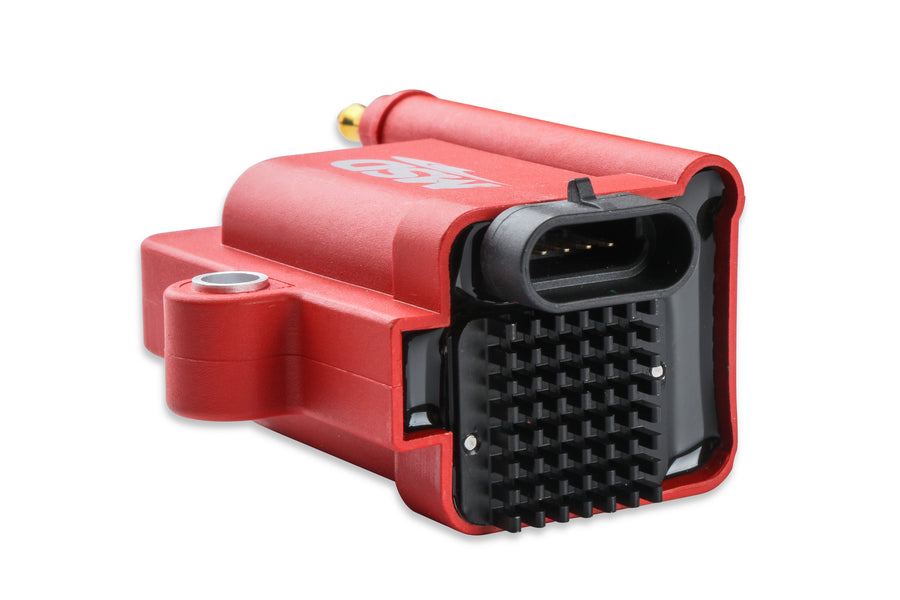

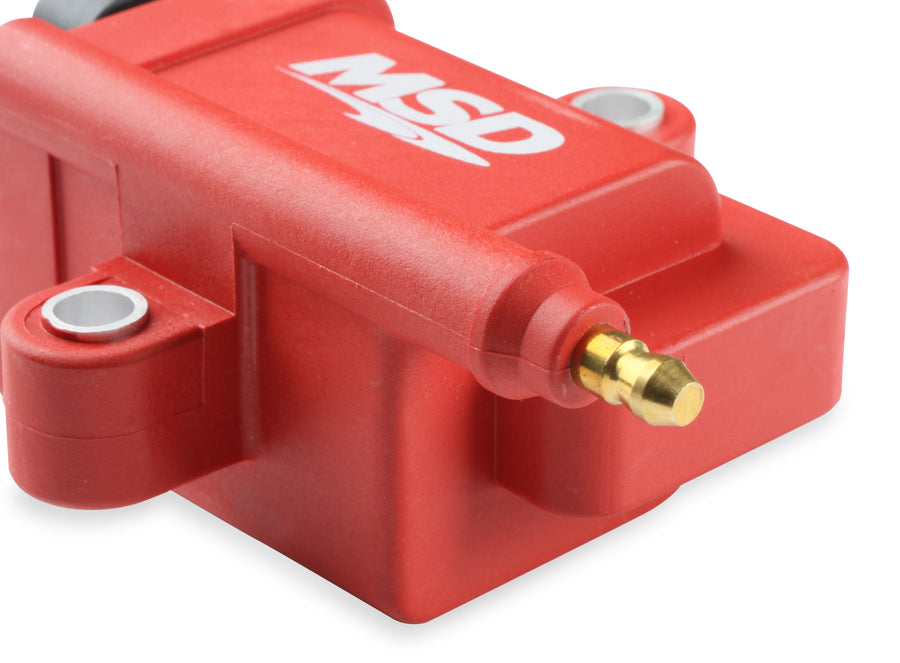

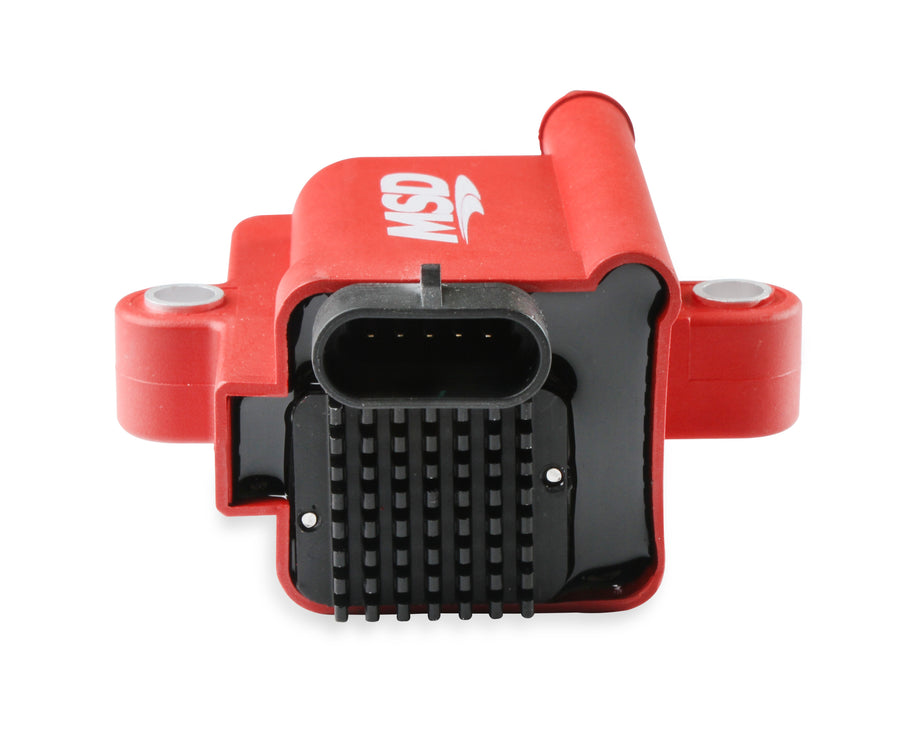

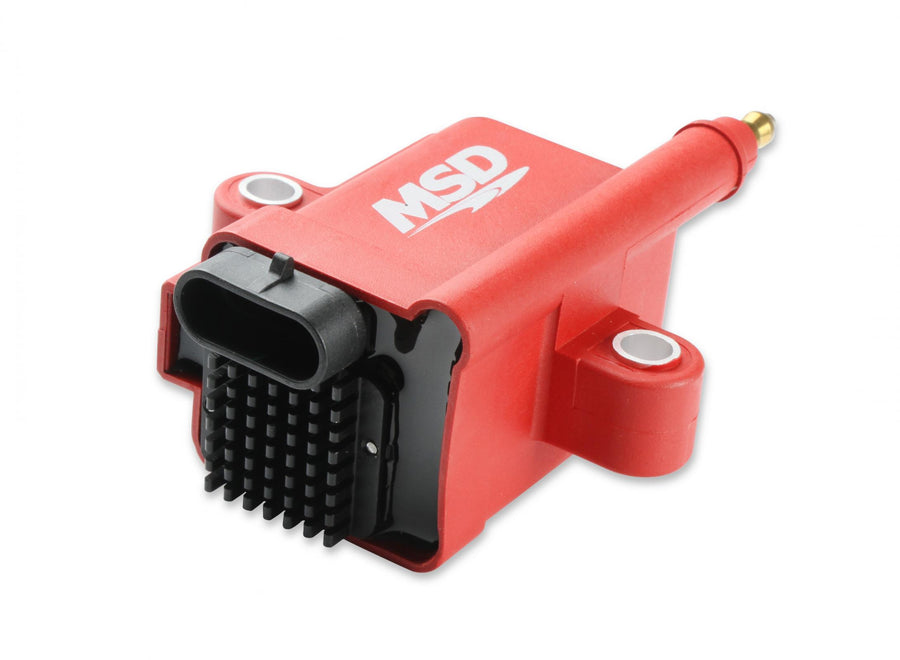

MSD Universal - Use with Holley or MSD EFI Systems 8289
Specifications:
| Brand | MSD |
| Category | Ignition |
| 2251 | Smart Coil |
| 17 | Red |
| Emission Code | 3 |
| Inductance (mH) | 5.2 |
| Maximum Voltage | 50,000 |
| part type | Ignition Coil |
| Peak Current (mJ) | 201 |
| 3719 | 0.55 |
| Product Type | Ignition Coil |
| Quantity | Individual |
| Sub Category | Ignition Coil |
| Turns Ratio | 2.88 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Brand | MSD |
| Category | Ignition |
| 2251 | Smart Coil |
| 17 | Red |
| Emission Code | 3 |
| Inductance (mH) | 5.2 |
| Maximum Voltage | 50,000 |
| part type | Ignition Coil |
| Peak Current (mJ) | 201 |
| 3719 | 0.55 |
| Product Type | Ignition Coil |
| Quantity | Individual |
| Sub Category | Ignition Coil |
| Turns Ratio | 2.88 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Description_INV | COILS,SMARTCOIL,SINGLE,RED |

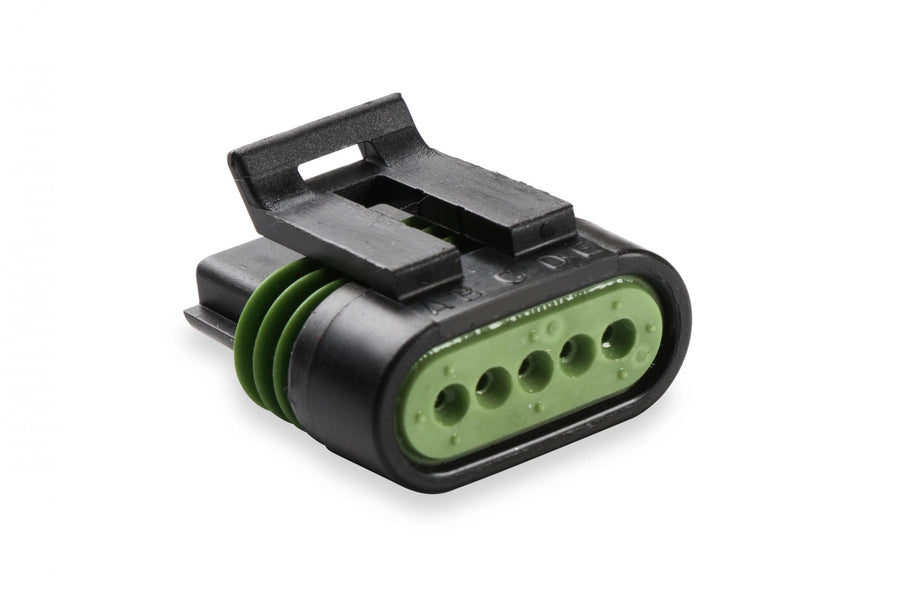

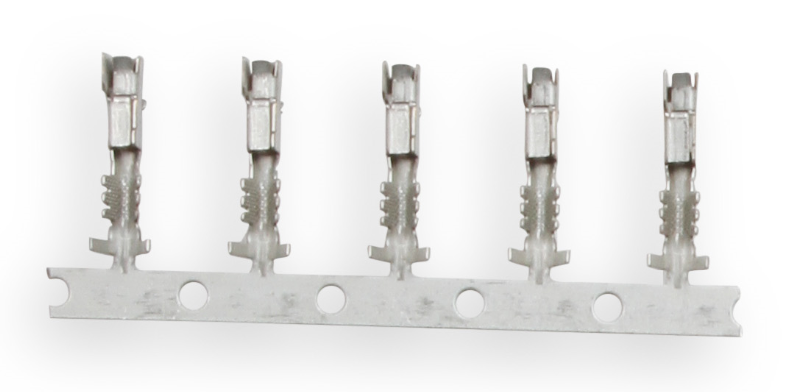

| Description_ASC | The supplied connectors and pins are "Pull to Seat " This means that you need to insert the wire through the connector from the back, crimp the pin and pull it back into the connector for assembly. Always use proper crimping tools to ensure a proper connection. |
| Description_DES | MSD Ignition Coil - Smart - Red |
| Description_EXT | Universal - Use with Holley or MSD EFI Systems |
| Description_MKT | Unique elongated mounting holes accommodate IGN-1A mounting brackets or allow it to bolt in place of an LS coil with 72mm bolt spacing. The MSD Smart Coil will bolt right on to Holley LS cast aluminum valve covers for a super clean look. Available in red or black, there's a set ready for your build. |

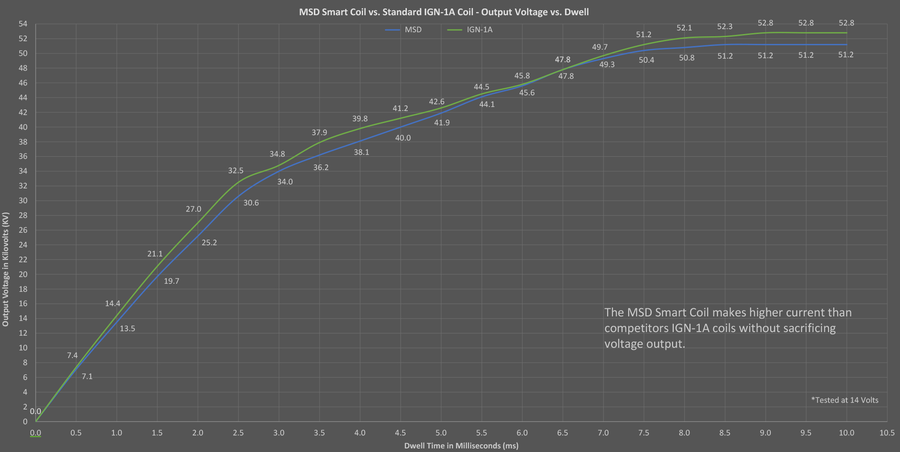

| Description_MKT | The MSD Smart Coil is a direct replacement for the popular IGN-1A coil. Here's the difference; it produces more spark energy while consuming less power without sacrificing voltage output. This means you get hotter spark at the plug to burn the maximum amount of fuel in each cylinder while using less power from your electrical system. |
| Description_MKT | It is compatible with Holley EFI and many other aftermarket electronic fuel injection systems and will run on traditional 12 volt or 16 volt electrical systems found in race applications. |
| Description_FAB | Built-in ignitor for compatibility with Holley EFI and many other aftermarket ECU’s |
| Description_FAB | Connector and Pins Included |
| Description_FAB | Available in red or black to match your build |
| Description_FAB | Maximum operating voltage of 17 volts – for compatibility with both 12 volt and 16 volt electrical systems found in many performance/race applications |
| Description_FAB | Same wiring pinout as other IGN-1A coils for easy plugin upgrades |

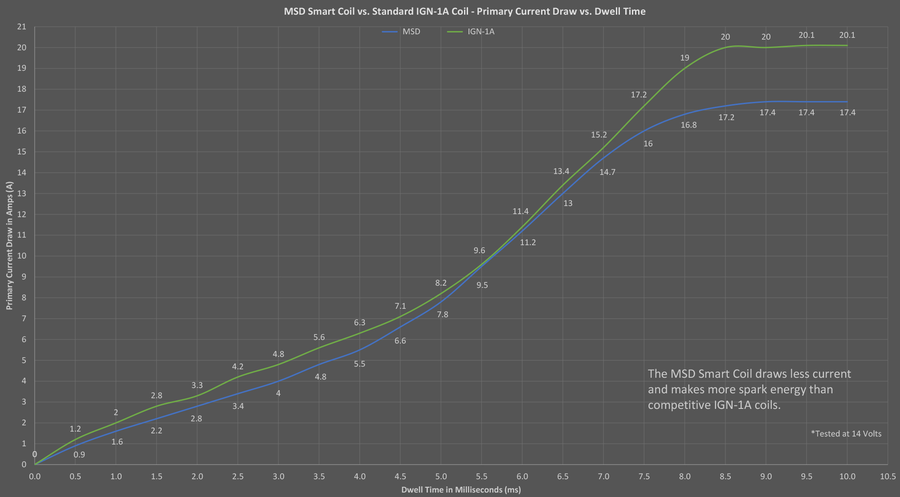

| Description_FAB | Low current draw means less demand on the electrical and charging system |
| Description_FAB | Direct bolt-on to Holley cast aluminum LS valve covers with 72mm bolt spacing |

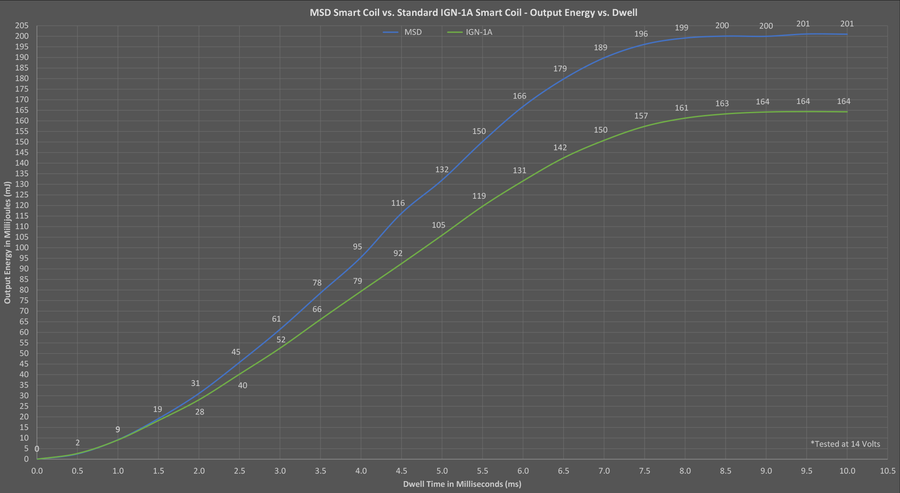

| Description_FAB | More spark energy than any other IGN-1A smart coil on the market for maximum fuel burn during combustion sequence |

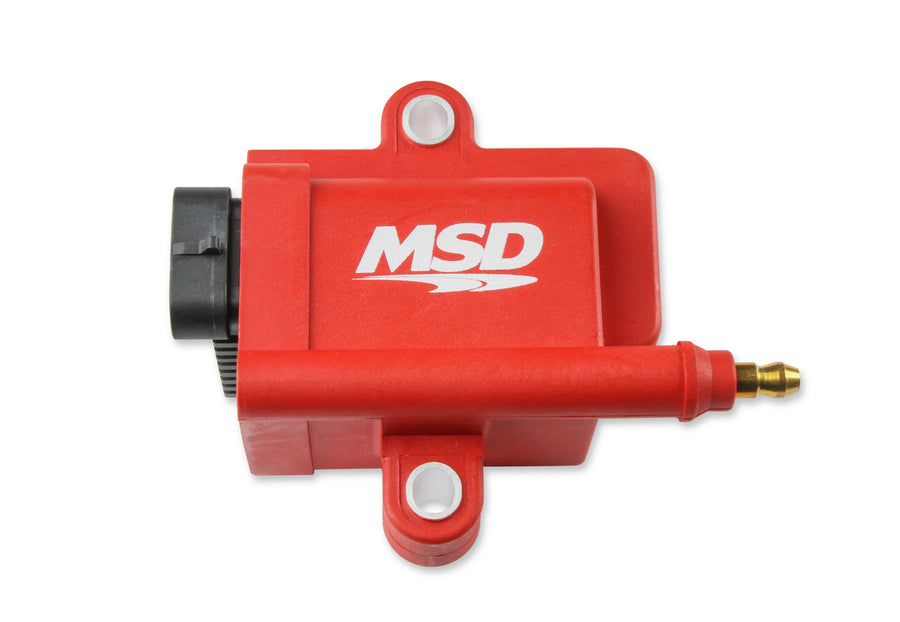

| Description_FAB | Elongated mounting holes to allow direct replacement of IGN-1A coils and will bolt in place of factory LS 1/2/3/6/7 coils with 72mm bolt spacing |
