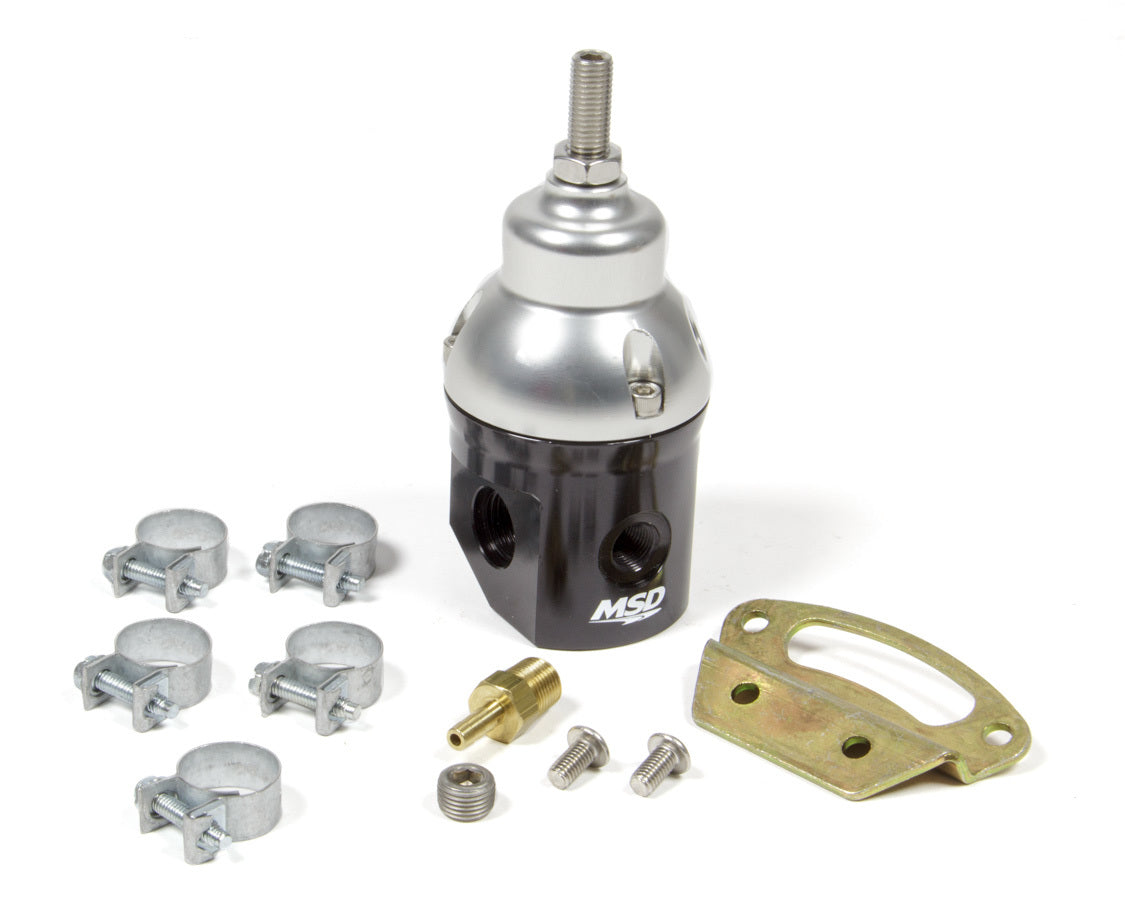

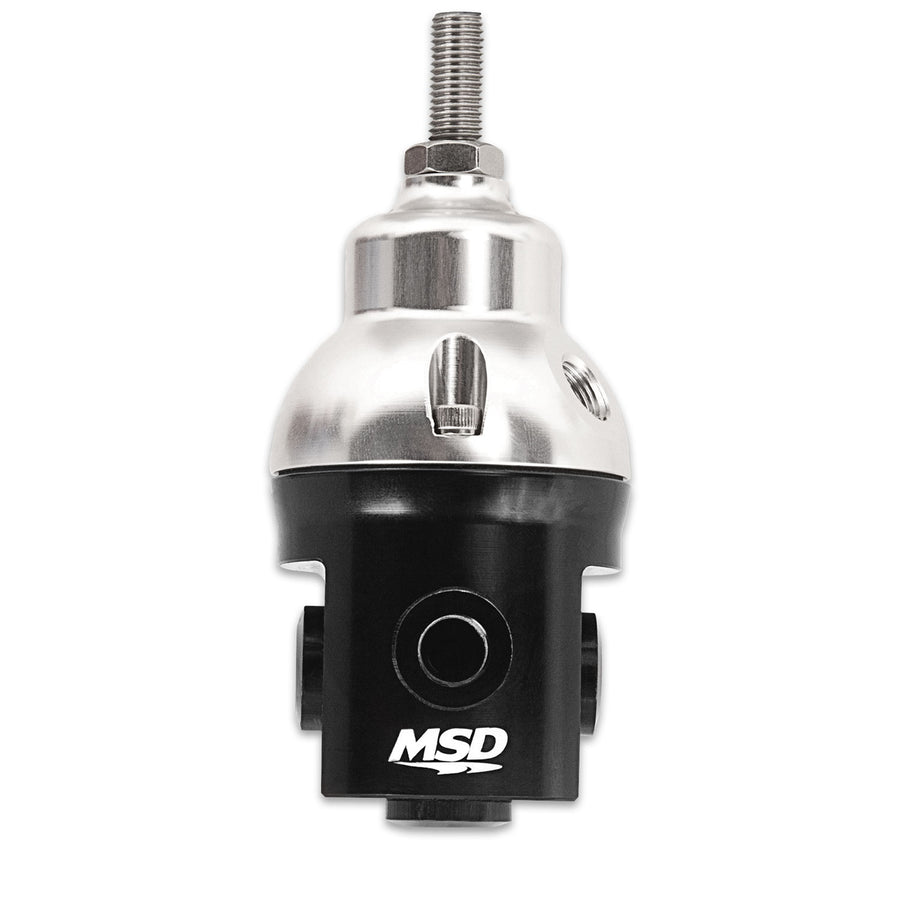

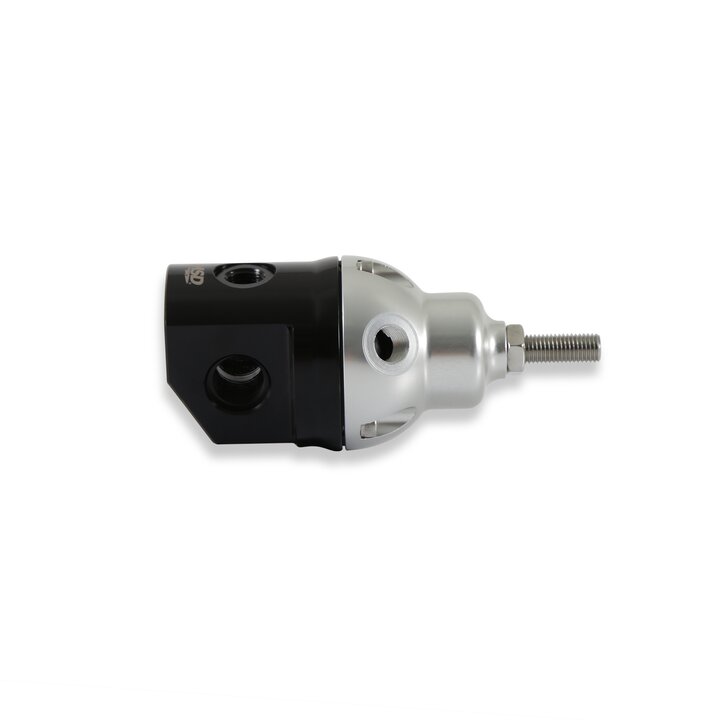

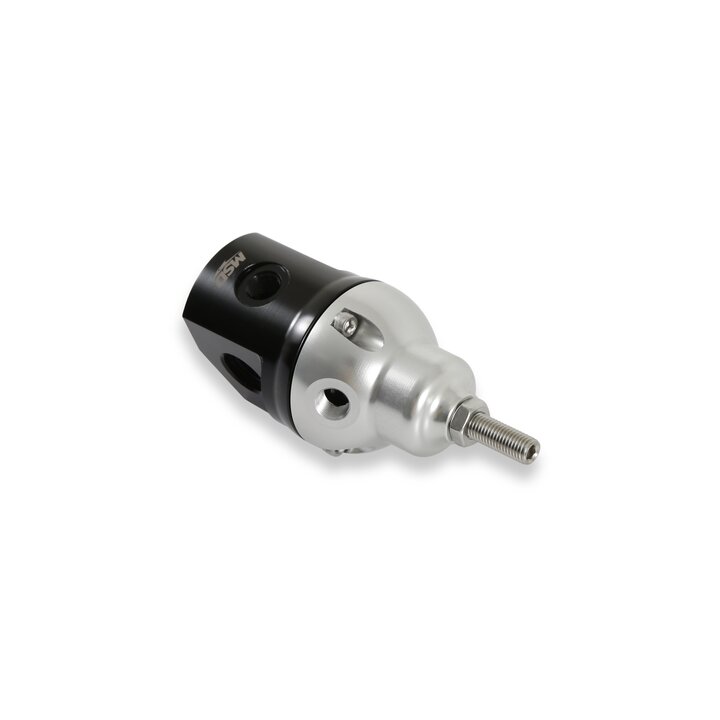

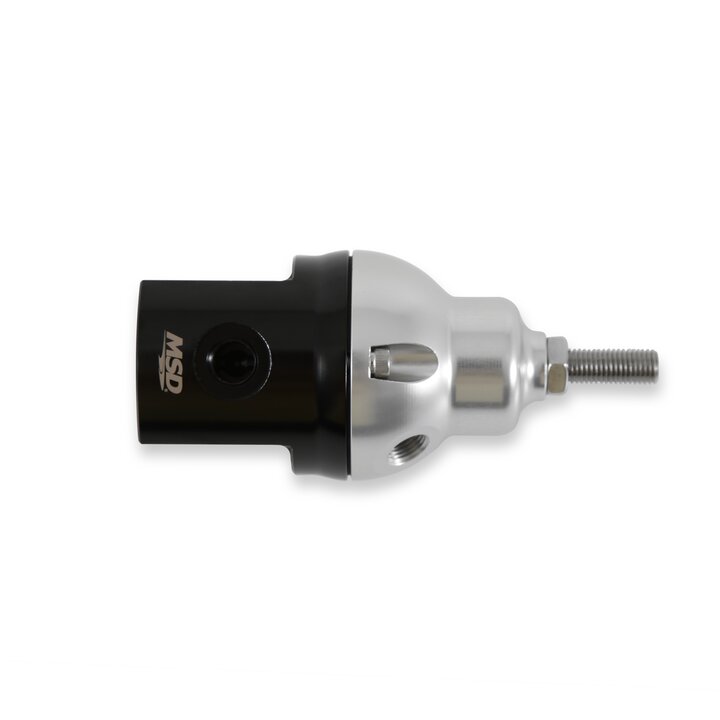

The MSD Atomic Adjustable Fuel Pressure Regulator is configured with a single -6AN inlet and dual -6AN outlets for flexible regulator-to-tank line routing, with a maximum recommended flow rate of 500 liters per hour (2.2 GPM) and a 1:1 vacuum/boost compensation ratio.
Specifications:
- Category: Air and Fuel Delivery
- Part Type: Fuel Injection Pressure Regulator
- Operating Range: 15-90 psig
- Max Flow Rate: 500 liters/hour (2.2 GPM)
- Vacuum/Boost Compensation Ratio: 1:1
- Inlet/Outlets: Single -6AN Inlet, Dual -6AN Outlets
- Part Number: 2938
FAQ
What is the operating pressure range of the MSD 2938 regulator?
The recommended operating range is 15-90 psig.
What fitting size does the MSD 2938 use?
A single -6AN inlet and dual -6AN outlets.
What is the maximum flow rate?
500 liters per hour (2.2 GPM).
Does this regulator compensate for boost or vacuum?
Yes, it has a 1:1 vacuum/boost compensation ratio.
