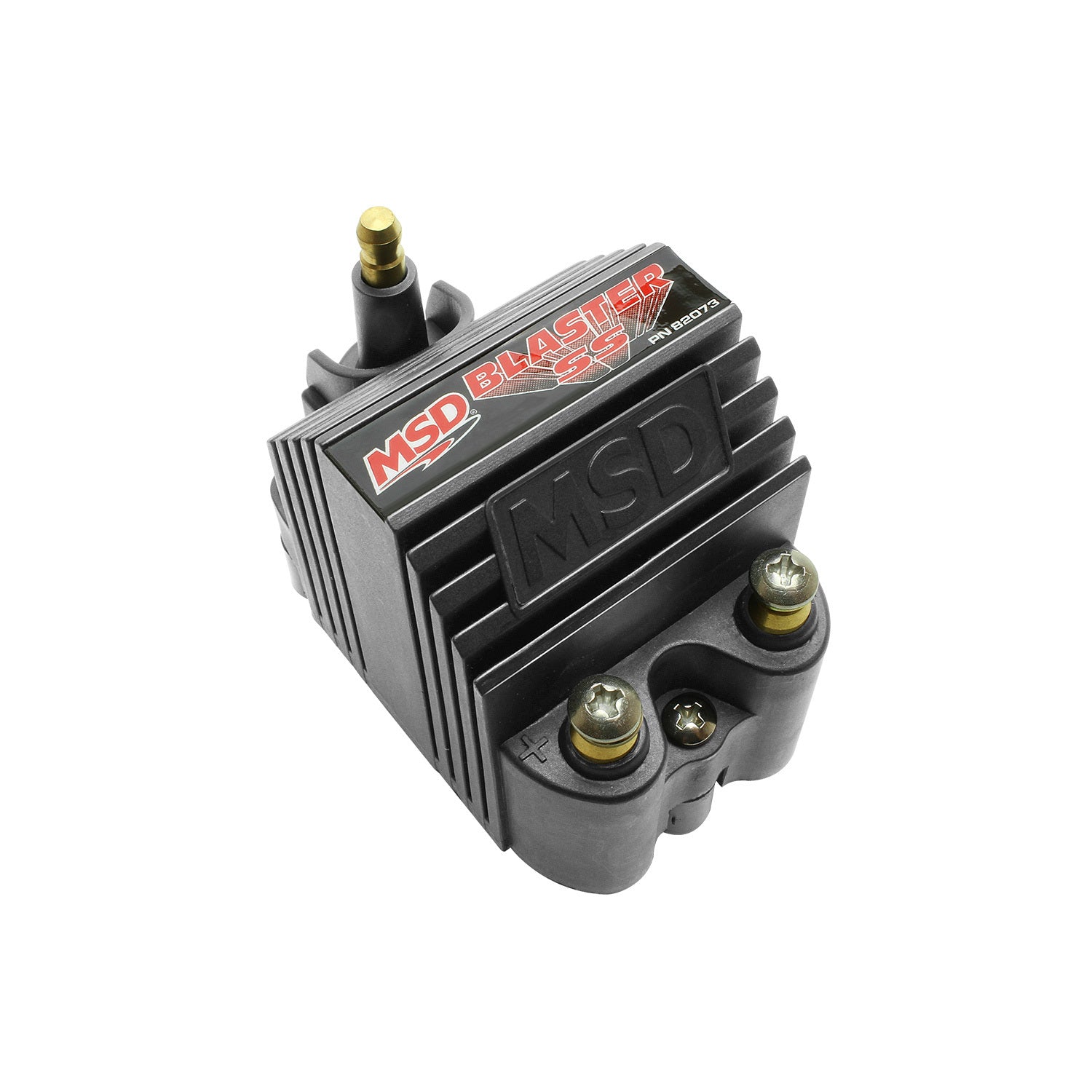

MSD Universal - Add To Any MSD 6-Series Ignition 82073
Specifications:
| Brand | MSD |
| C.A.R.B. EO # | D-40-37 |
| Category | Ignition |
| 2251 | Blaster |
| 17 | Black |
| Emission Code | 1 |
| Inductance (mH) | 6.9 |
| Maximum Voltage | 40,000 |
| part type | Ignition Coil |
| Peak Current | 300 |
| 3719 | 0.355 |
| Product Type | Ignition Coil |
| Secondary Resistance | 4.4K |
| Spark Duration | 0.22 |
| Sub Category | Ignition Coil |
| Turns Ratio | 2.92 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight | 1.08 |
| Brand | MSD |
| C.A.R.B. EO # | D-40-37 |
| Category | Ignition |
| 2251 | Blaster |
| 17 | Black |
| Emission Code | 1 |
| Inductance (mH) | 6.9 |
| Maximum Voltage | 40,000 |
| part type | Ignition Coil |
| Peak Current | 300 |
| 3719 | 0.355 |
| Product Type | Ignition Coil |
| Secondary Resistance | 4.4K |
| Spark Duration | 0.22 |
| Sub Category | Ignition Coil |
| Turns Ratio | 2.92 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight | 1.08 |
| Description_INV | Blaster SS, Black Coil |
| Description_ASC | CARB EO: D-40-37 |
| Description_DES | MSD Ignition Coil - Blaster SS - Black |
| Description_EXT | Universal - Add To Any MSD 6-Series Ignition |
| Description_MKT | Note: If installing the Blaster SS Coil to a points distributor or a non-current limiting ignition system without an MSD Ignition, a 0.8 ohm ballast resistor is required (MSD PN 8214). The resistor should wire in series along with any factory resistors on the positive coil wire. |
| Description_MKT | Don't let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps with a maximum voltage output of 40,000 volts! |
| Description_FAB | Improved output coil for electronic ignitions, and MSD Ignitions |
| Description_FAB | Efficient winding design and assembly creates a compact housing |
| Description_FAB | Tough, rigid housing with a tall tower and brass primary terminals |
| Description_FAB | CARB E.O. D-40-37 |
| Description_FAB | Primary and secondary windings are encased in Ciba polyurethane |
| Description_FAB | 70:1 turns ratio and lower primary resistance produce high voltage output |
| Description_INV | Blaster SS, Black Coil |
| Description_ASC | CARB EO: D-40-37 |
| Description_DES | MSD Ignition Coil - Blaster SS - Black |
| Description_EXT | Universal - Add To Any MSD 6-Series Ignition |
| Description_MKT | Note: If installing the Blaster SS Coil to a points distributor or a non-current limiting ignition system without an MSD Ignition, a 0.8 ohm ballast resistor is required (MSD PN 8214). The resistor should wire in series along with any factory resistors on the positive coil wire. |
| Description_MKT | Don't let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps with a maximum voltage output of 40,000 volts! |
| Description_FAB | Improved output coil for electronic ignitions, and MSD Ignitions |
| Description_FAB | Efficient winding design and assembly creates a compact housing |
| Description_FAB | Tough, rigid housing with a tall tower and brass primary terminals |
| Description_FAB | CARB E.O. D-40-37 |
| Description_FAB | Primary and secondary windings are encased in Ciba polyurethane |
| Description_FAB | 70:1 turns ratio and lower primary resistance produce high voltage output |
