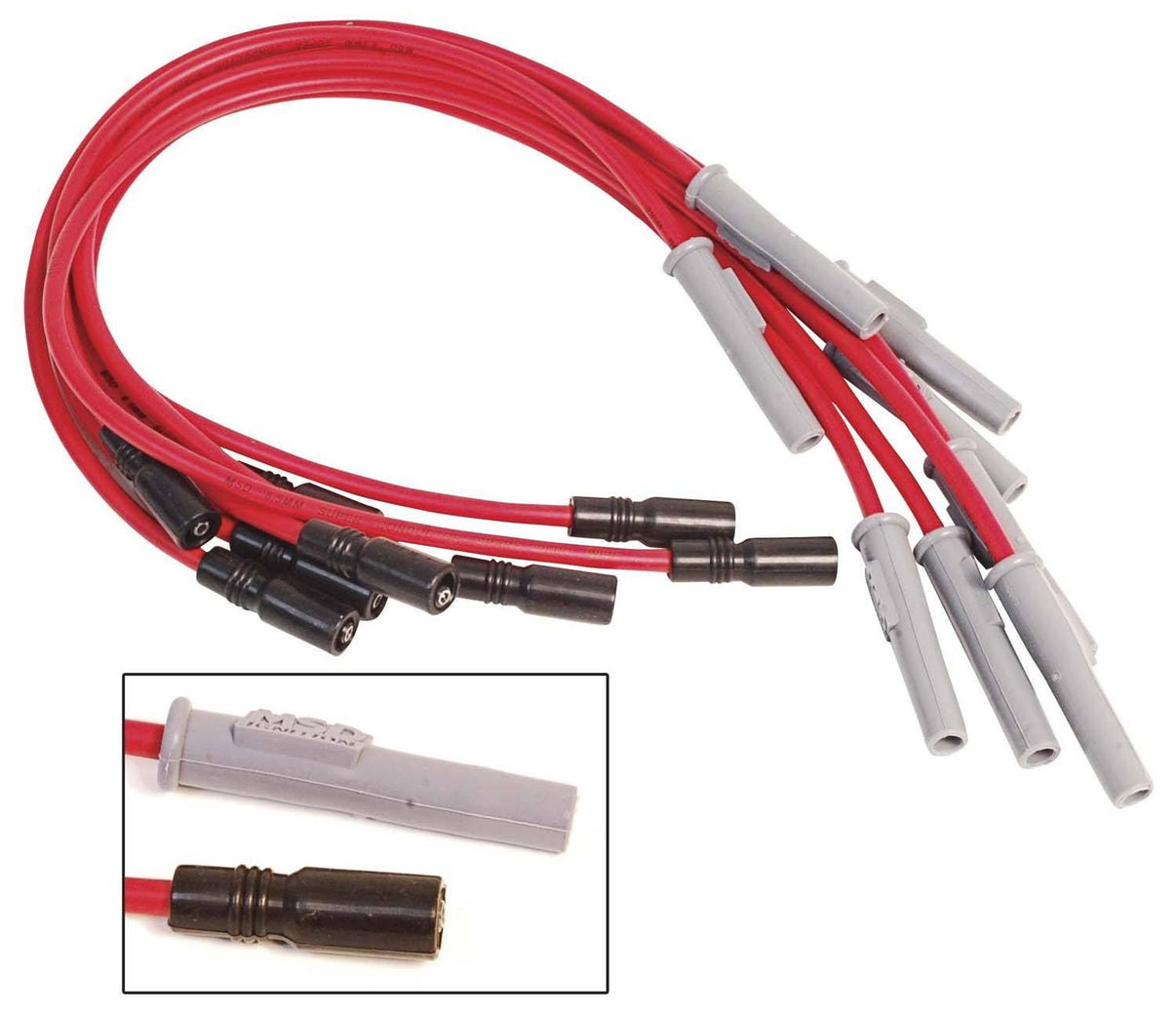

MSD's Super Conductor Spark Plug Wire Set is engineered from the inside out to deliver extremely low resistance without electronic interference. A single 12-inch length of Super Conductor wire carries only 40-50 ohms of resistance — the lowest of any helically wound plug wire — thanks to a copper alloy conductor wound tightly around a ferro-magnetic impregnated center core. This construction produces an effective Electromagnetic Interference (EMI) choke that keeps interference contained within the wire, while a silicone and synthetic outer sleeve resists high heat, abrasion, and tears. Each 8.5mm terminal uses a Dual Crimp design, with one crimp securing the wire's outer sleeve and a separate crimp grasping the conductor for a lasting connection.
Specifications:
- Product Type: Spark Plug Wire Set
- Wire Diameter: 8.5mm Super Conductor
- Jacket Color: Red
- Resistance: 40-50 ohms per foot (helically wound copper alloy conductor)
- Terminal Style: Dual Crimp
- Coil Wire Length: 12 inches
- Individual Wire Lengths (by cylinder position): 34", 36", 30", 33", 25", 30", 22", 25"
- Category: Ignition / Ignition Wire and Related Components
- Warranty: Manufacturer's Limited 1-Year Warranty
- Part Number: 32109
Precut and custom fit for 1996-1999 Chevrolet and GMC C2500/C3500/K2500/K3500 trucks and Suburbans equipped with the 7.4L (454) V8, and select 1996-1999 GMC Savana 3500 vans — confirm exact year, make, and model fitment before ordering.
FAQ
What vehicles does this wire set fit?
This set is a custom, precut fit for 1996-1999 Chevrolet and GMC 2500/3500-series trucks and Suburbans equipped with the 7.4L (454) big block V8, plus select GMC Savana 3500 vans.
What is the wire diameter and resistance rating?
This set uses MSD's 8.5mm Super Conductor wire, rated at only 40-50 ohms of resistance per 12-inch length, among the lowest resistance of any helically wound spark plug wire.
What terminal style does this set use?
The 8.5mm spark plug terminals use a Dual Crimp design — one crimp secures the wire's outer sleeve and a second, separate crimp grasps the conductor.
Does this wire set help reduce electronic interference?
Yes. The tightly wound conductor and ferro-magnetic impregnated center core create an effective EMI choke that contains interference within the wire rather than letting it reach other vehicle electronics.
Is this set precut, or do I need to trim the wires to length?
The wires are precut to exact specifications and custom fit for the listed make and model, so no cutting is required for installation.
