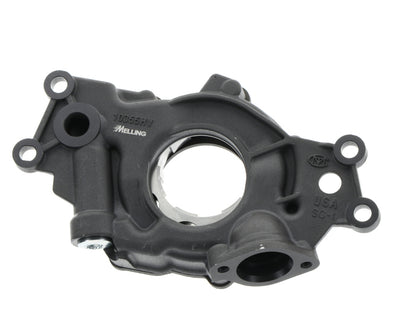

The Melling 10355HV is a high-volume, standard-pressure replacement oil pump for the GM LS Series. It uses a cast aluminum housing with PM steel rotors. Melling classifies this pump as High Volume and Standard Pressure, making it a direct-fit choice for rebuilds and performance builds on this engine family.
Specifications:
- Volume / Pressure: High Volume / Standard Pressure
- Manufactured volume: High Volume (20% higher than stock)
- Manufactured pressure: 70 PSI (orange spring)
- Optional pressure springs: 60 PSI (yellow) and 80 PSI (green) springs
- Gear/rotor type: PM steel rotors
- Housing: Cast aluminum
- Engine family: GM LS Series
- Part number: 10355HV
FAQ
What engine does the Melling 10355HV fit?
The 10355HV is a replacement oil pump for the GM LS Series. Confirm your engine family and pickup configuration before ordering.
Is this a standard, high-volume, or high-pressure pump?
Melling classifies the 10355HV as High Volume and Standard Pressure, rated at 70 PSI (orange spring).
Do I need a high-volume oil pump?
High-volume pumps move more oil per revolution than a stock pump, which helps engines with added bearing clearance, remote coolers, or high-rpm use. Pair it with a windage-controlled, properly baffled pan and adequate oil capacity.
Does this pump include a pickup tube?
Melling lists this pump without a pickup in the box unless otherwise noted. Confirm you have the correct pickup for your pan and block, and check pickup-to-pan clearance during assembly.
