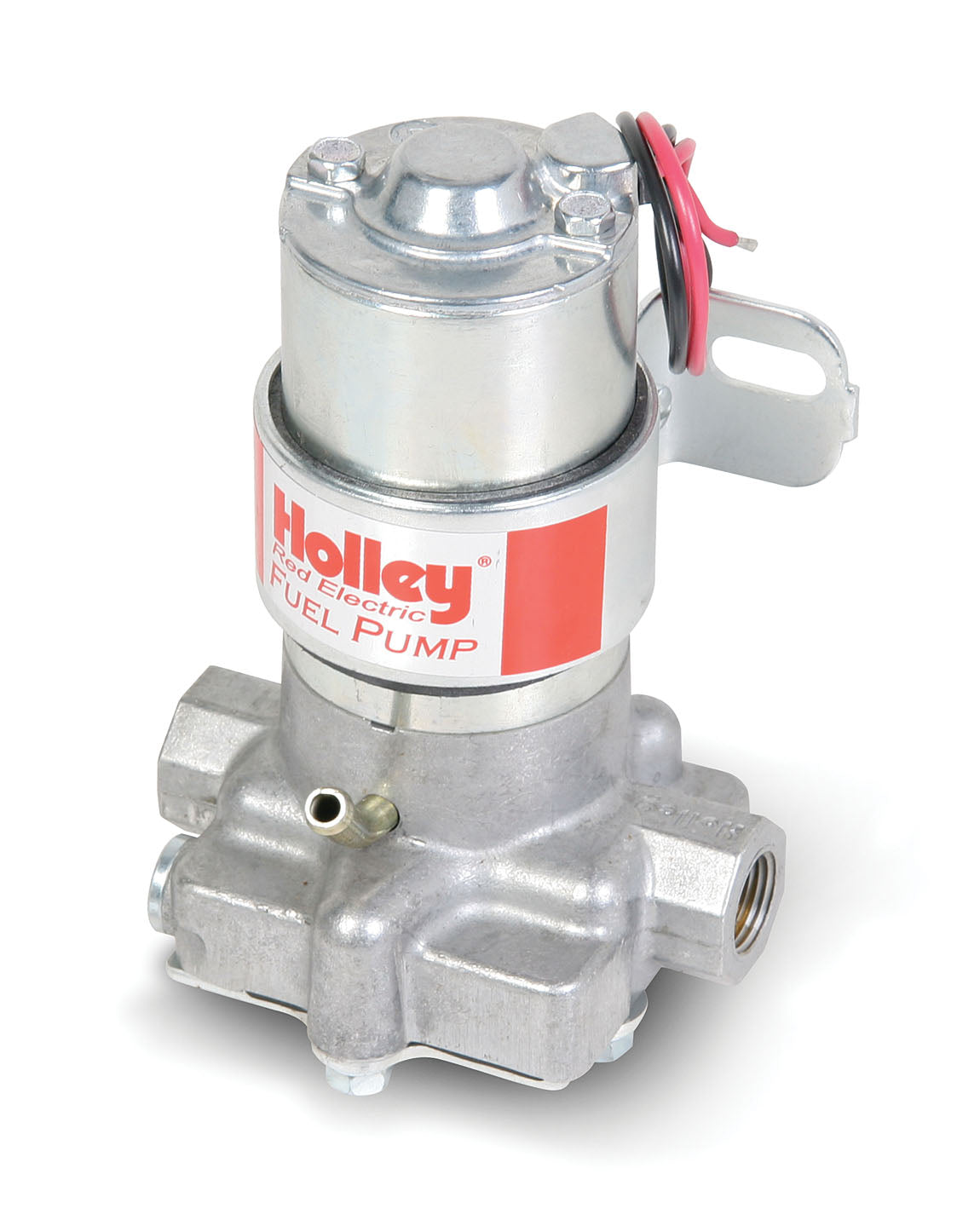

Holley's Red electric fuel pump delivers the same proven rotor/vane design that has powered racers and street enthusiasts since the early '70s. This marine version includes a fume tube for U.S. Coast Guard compliance and doesn't require an additional regulator.
Specifications:
- Application: Marine, Carbureted
- Free Flow Rating: 97 GPH / 367 LPH
- Flow at 4 PSI: 71 GPH
- Max Pressure: 7 PSI
- Fuel Type: Gasoline
- Inlet/Outlet Size: 3/8" NPT
- Material: Aluminum
- Motor Draw: 2 Amps (7.5 amp fuse recommended)
- Weight: 2.88 lbs
- Includes: Mounting bracket, fuel/vapor tube
- Product Type: Fuel Pump
- Part Number: 712-801-1

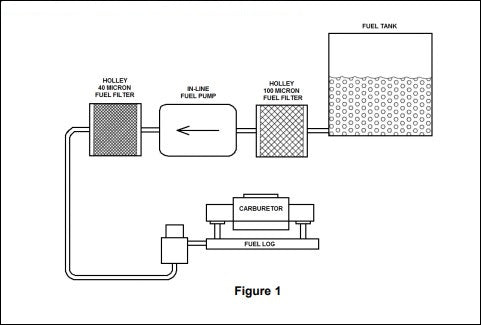

Mount below the fuel level of the tank for a good gravity feed on the inlet side; 12-volt systems only. Not compatible with alcohol or methanol fuels, not designed for fuel injection or aircraft use, and Holley recommends adding a P/N 12-810 safety shut-off switch.
FAQ
What's the flow rate of this pump?
97 GPH free flow, or 71 GPH at 4 PSI.
Is a regulator required?
No, a regulator is not required with this pump.
Is this pump approved for marine use?
Yes, it includes a fuel/vapor tube and meets U.S. Coast Guard regulations.
Can this pump run alcohol or methanol fuels?
No, it is not compatible with alcohol or methanol fuels.
