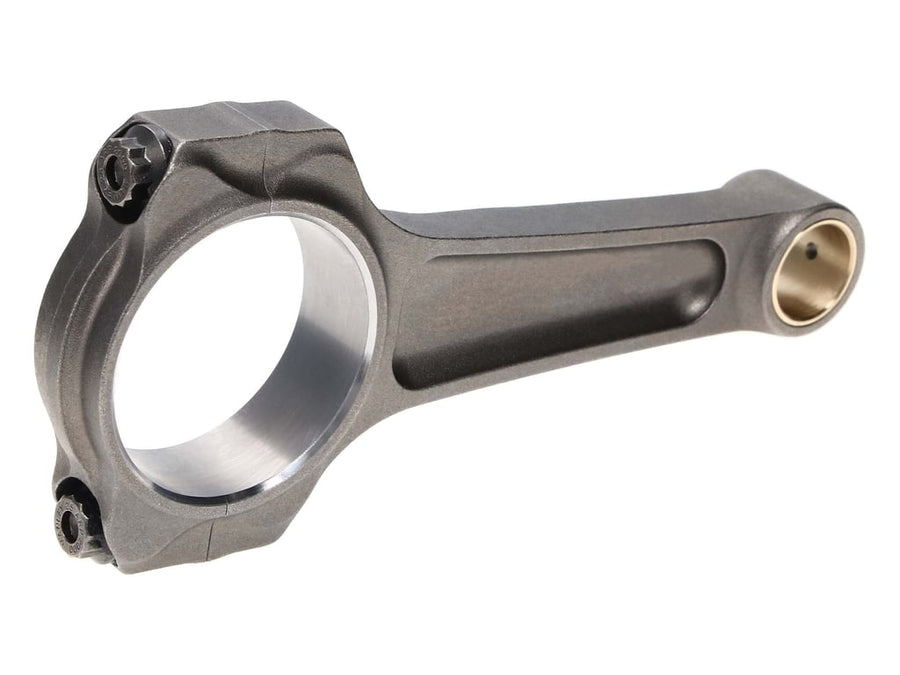

Manley Manley Connecting Rod-4.6L/5.0L 5.933 H TUFF 15042R-8
Specifications:
| Pin End Bore | 0.8671 |
| Wrist Pin Diameter | 0.866 |
| Connecting Rod Series | H-Beam |
| Connecting Rod Sub-Series | H-Tuff |
| Product Type | Engine Connecting Rod Set |
| Rod Quantity | 8 |
| Rod Bolt Material | ARP 2000 |
| Connecting Rod Type | I-Beam |
| Pin End Width | 0.940 |
| Connecting Rod Material | 4340 |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Short Label | Prop 65 Warning Label.JPG |
| Engine Type | ICE |
| Make | Ford |
| Prop 65 Yes/No | Yes |
| Out of Stock Message | Call for Availability |
| Industry | Automotive |
| Engine | 4.6L Modular |
| Product Market | Domestic |
| Journal Size | Stock |
| Center To Center Length | 5.933 |
| Big End Bore | 2.239 |
| Average Gram Weight | 685 |
| Connecting Rod Journal Diameter | Stock |
| Length | Stock |
| Description_SHO | Connecting Rod Set |
| Description_INV | ROD-4.6L/5.0L 5.933 H TUFF |
| Description_ASC | Manley Connecting Rod, ROD-4.6L/5.0L 5.933 H TUFF |
| Description_LAB | Manley Connecting Rod-4.6L/5.0L 5.933 H TUFF |
| Description_DES | Manley Connecting Rod-4.6L/5.0L 5.933 H TUFF |
| Description_EXT | Center To Center Length: 5.933 in. - Big End Bore: 2.239 in. - Pin Bore: 0.8671 in. (22mm Pin) - 3/8" ARP 2000 Bolts - Approx. HP Rating: 1000+ |
| Description_MKT | Manley's Pro Series I-Beam Connecting Rods represent the epitome of precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are a testament to our commitment to excellence. Elevate your engine's capabilities and achieve outstanding results with these exceptional connecting rods. |
| Description_FAB | Designed for ultimate performance with superior materials: forged 4340 or 300M vacuum degassed steel alloys |
| Description_FAB | NHRA Legal Certification for some SKUs - Stock and Super Stock |
| Description_FAB | Versatile Weight Options: Tour Lites, Light, Standard, Heavy |
| Description_TLE | Manley Pro Series I-Beam Connecting Rod Set - Ford Modular Coyote - 4.6L / 5.0L - H-Tuff Series |
| Description_DEF | Engine Connecting Rod Set |
