Hooker BlackHeart LS Turbo Cross-Over Tube - Universal Component Kit 8517HKR
Regular Price
$340.95

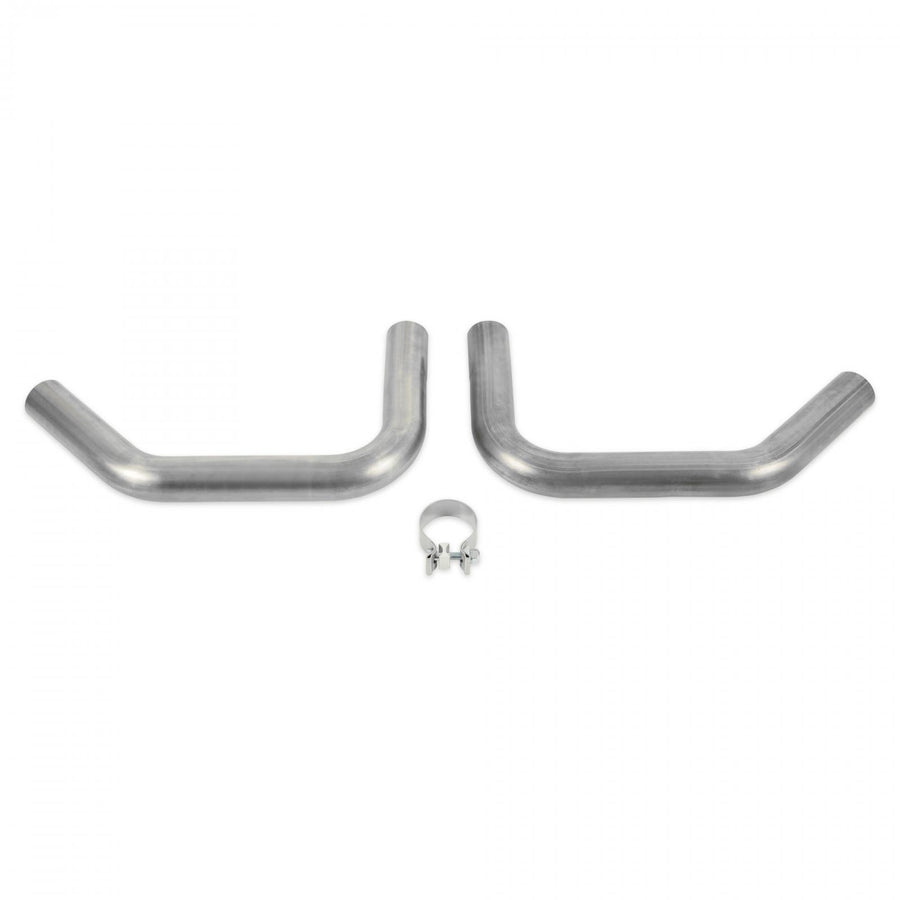

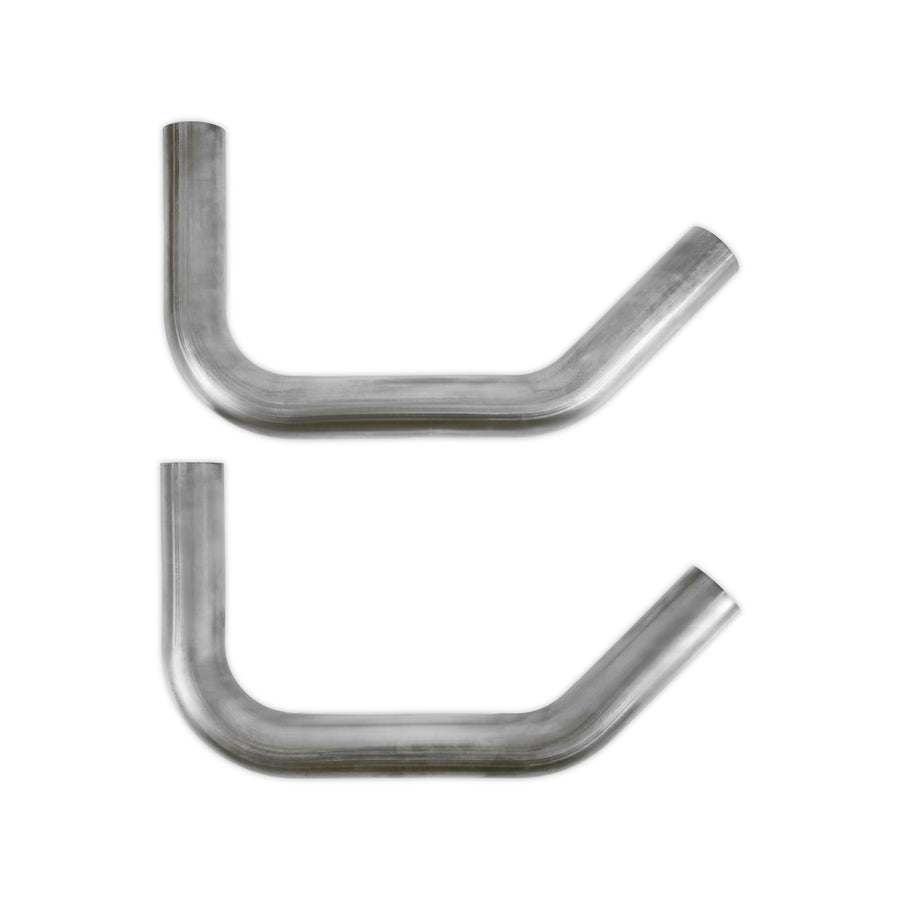

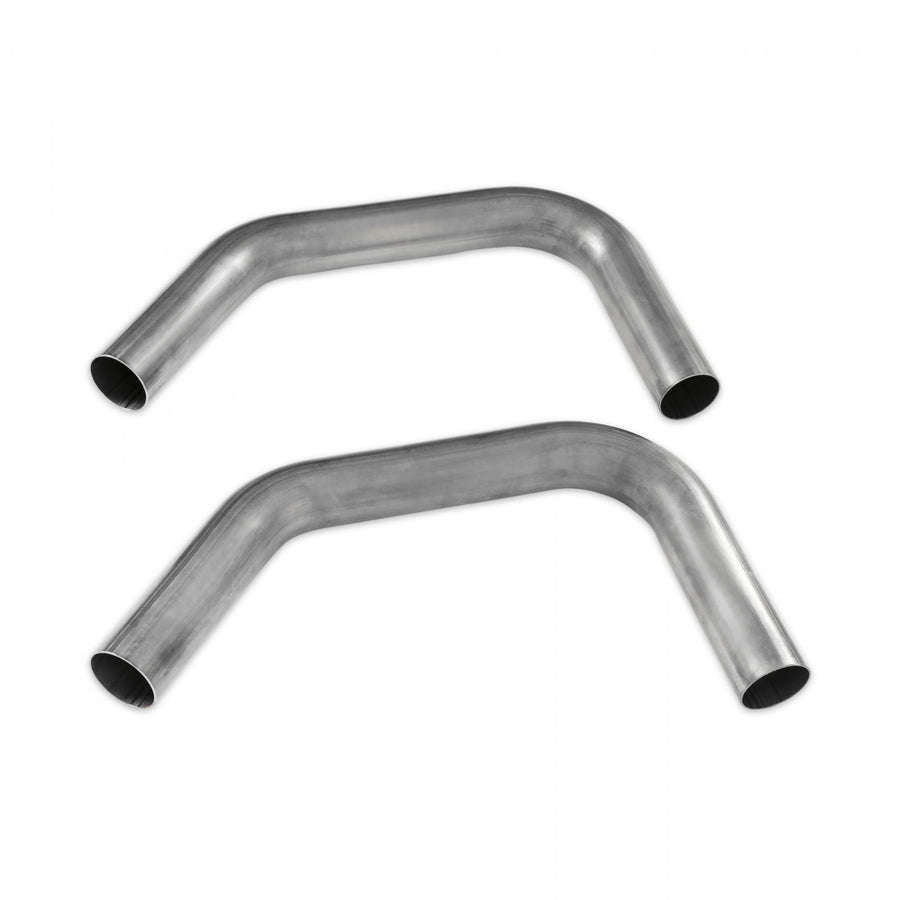

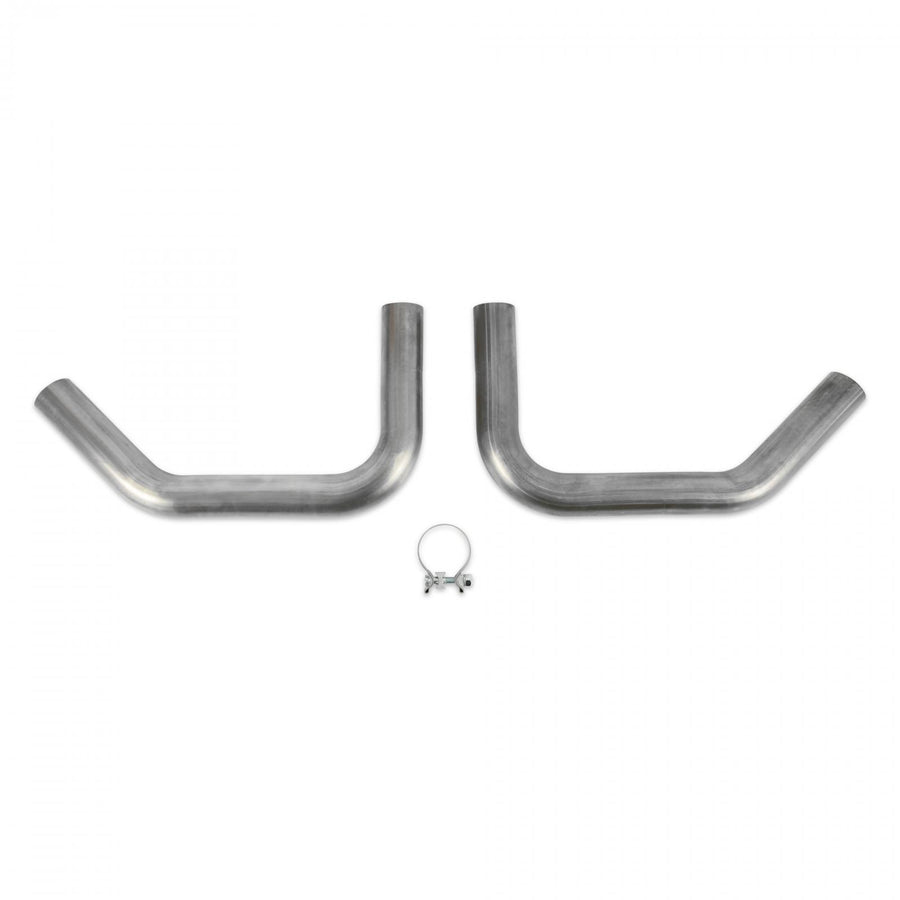

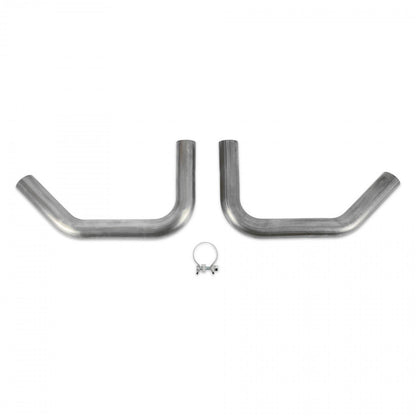

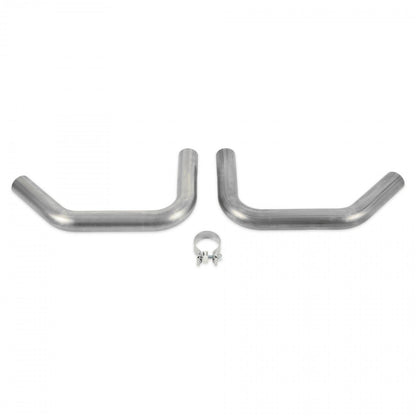

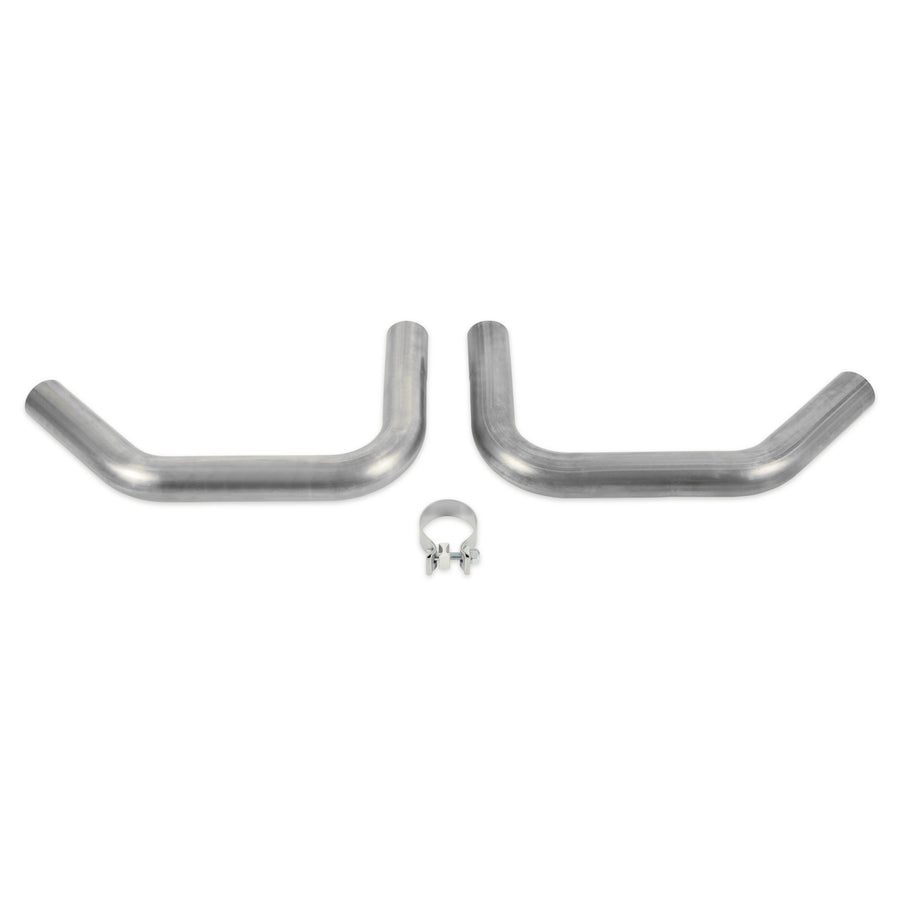

This turbo cross-over tube is used to connect the two manifolds (sold separately). Choose the cross-over tube based on the transmission (and bell-housing) for optimal fit and ground clearance. The cross-over tubes are made from 16-gauge, mandrel bent 304 stainless steel. This universal cross-over component kit is available for custom applications that need something a little different (requires fabrication & welding). These parts work with most common LS swap parts (i.e. motor mounts, swap oil pan, and accessory drive systems) & provide the basic building blocks needed to complete a custom turbo system for your GM LS engine
Hooker BlackHeart LS Turbo Cross-Over Tube - Universal Component Kit 8517HKR
Specifications:
| Bolt size | M8 x 1.25 x 25mm |
| Brand | Hooker BlackHeart |
| CARB (California) Compliant | No |
| Category | Exhaust |
| Collector Diameter | 2.25 inch |
| Emission Code | 4 |
| Engine | GM Gen III/IV (LS) |
| Exhaust Manifold Style | Turbo |
| Header Finish | Natural |
| Header Style | Turbo manifold |
| part type | Exhaust Crossover Pipe |
| Product Type | Manifold |
| Sub Category | Exhaust and Tail Pipes |
| System Type | Cross-over |
| Tube Diameter | 2.25 inch |
| Tube Material | 304 Stainless Steel |
| Warning | California Proposition 65 |
| Bolt size | M8 x 1.25 x 25mm |
| Brand | Hooker BlackHeart |
| CARB (California) Compliant | No |
| Category | Exhaust |
| Collector Diameter | 2.25 inch |
| Emission Code | 4 |
| Engine | GM Gen III/IV (LS) |
| Exhaust Manifold Style | Turbo |
| Header Finish | Natural |
| Header Style | Turbo manifold |
| part type | Exhaust Crossover Pipe |
| Product Type | Manifold |
| Sub Category | Exhaust and Tail Pipes |
| System Type | Cross-over |
| Tube Diameter | 2.25 inch |
| Tube Material | 304 Stainless Steel |
| Warning | California Proposition 65 |
| Description_ABR | LS TURB PIPE |
| Description_SHO | LS TURBO C/OVER PIPE |
| Description_INV | LS TURBO CROSSOVER BUILDER KIT |
| Description_ASC | V-Band flanges not included. V-band flanges are provided with the turbo manifolds and will need to be welded to the cross-over tube. |
| Description_DES | LS Turbo Cross-Over Tube |
| Description_EXT | LS Turbo Cross-Over Tube - Universal Component Kit |
| Description_MKT | This turbo cross-over tube is used to connect the two manifolds (sold separately). Choose the cross-over tube based on the transmission (and bell-housing) for optimal fit and ground clearance. The cross-over tubes are made from 16-gauge, mandrel bent 304 stainless steel. This universal cross-over component kit is available for custom applications that need something a little different (requires fabrication & welding). These parts work with most common LS swap parts (i.e. motor mounts, swap oil pan, and accessory drive systems) & provide the basic building blocks needed to complete a custom turbo system for your GM LS engine |
| Description_FAB | Choose Cross-Over Tube Based on Type of Transmission & Bell-Housing |
| Description_FAB | Cross-Over Tubes Are 16 Gauge, Mandrel Bent 304 Stainless Steel & Include V-Band Flanges |
| Description_FAB | Pre-Made Cross-Over Tube Provide Optimal Fit & Ground Clearance |
| Description_FAB | Mandrel-Bent Tubing |
| Description_FAB | Two Piece Design |
