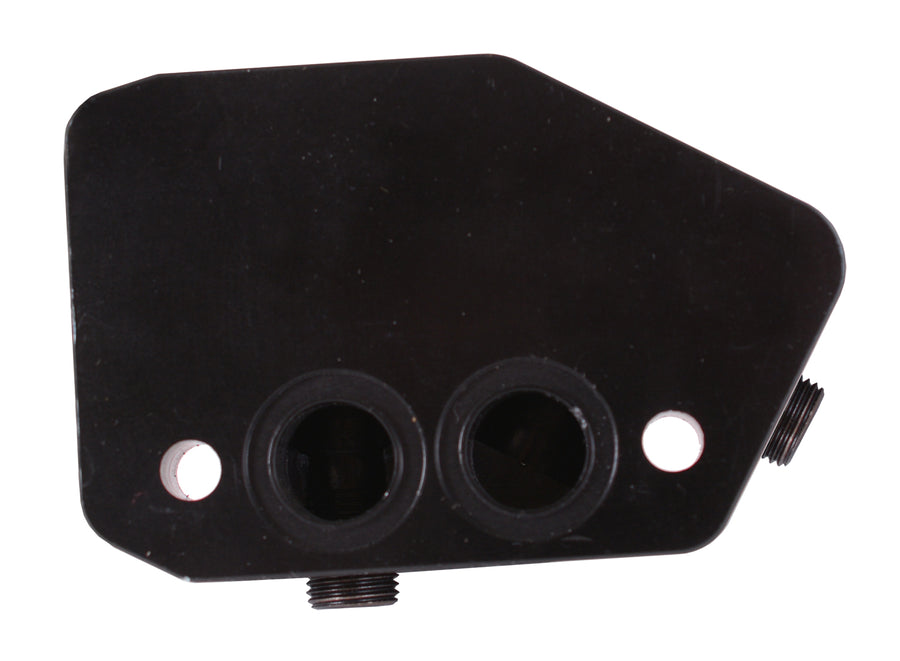

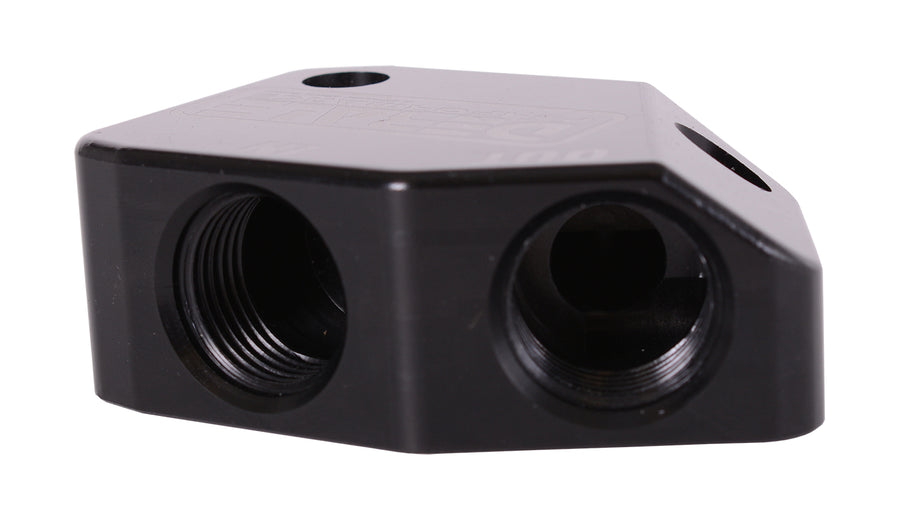

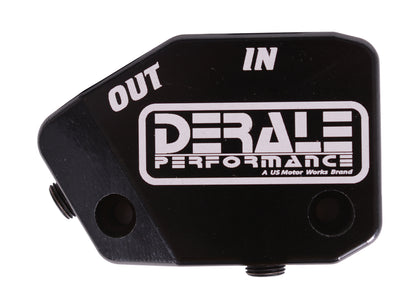

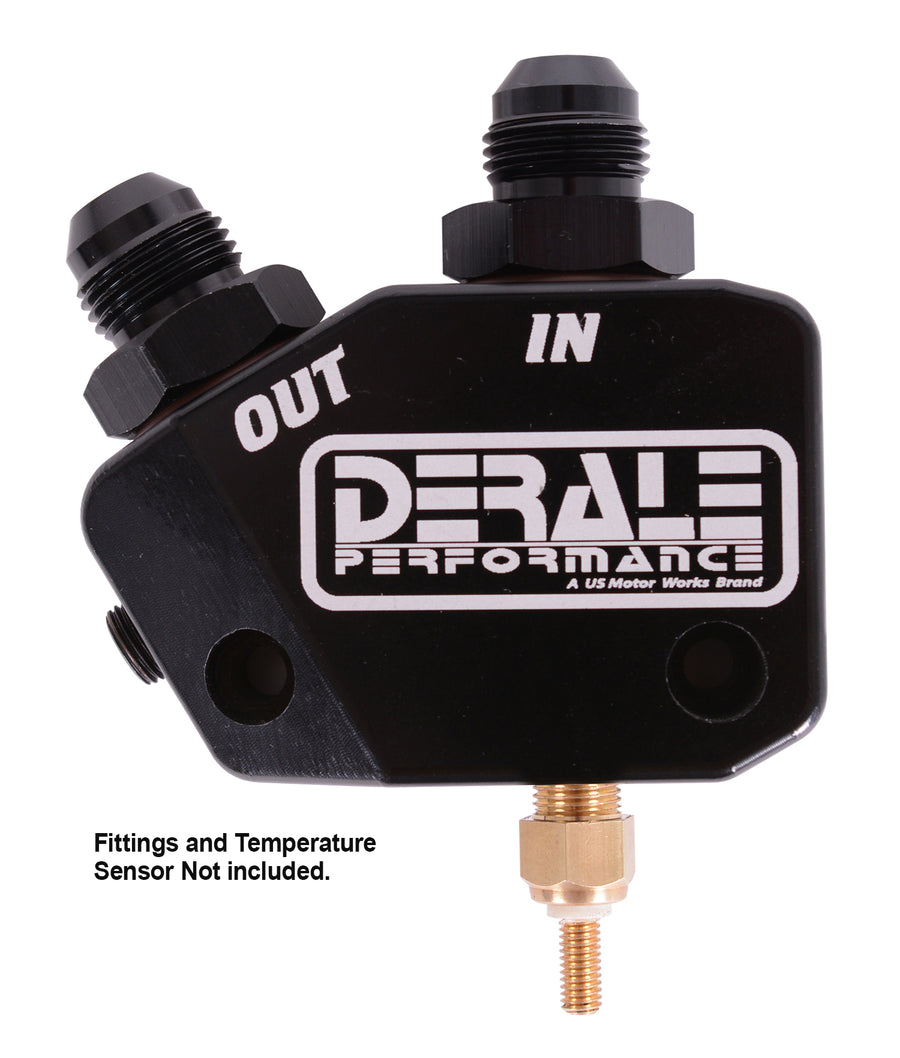

The Derale 35611 is an LS oil cooler bypass adapter kit that adds oil cooler ports to a GM LS engine so an external engine oil cooler can be plumbed in. The adapter installs in the engine oil system, and the cooler lines connect to its IN and OUT ports. These ports must be connected to a cooler or looped together and should never be capped, since that would block oil flow. This is the standard, non-thermostatic version of the adapter; the thermostatic end cap is used only on the companion 35621 kit.
Specifications:
- Type: LS engine oil cooler bypass adapter kit
- Function: adds oil cooler IN/OUT ports to an LS engine
- Control: non-thermostatic (standard version)
- Cooler fittings: accepts -AN fittings (supplied by installer, not included)
- Included: 1 LS bypass adapter, 2 adapter o-rings, 2 1/8" NPT plugs, 2 M6 x 1.0mm bolts
- Application: GM LS family engines
- Part number: 35611
Fitment: GM LS family engines. Confirm your engine and the oil cooler fitting size needed before installation.
FAQ
What is the Derale 35611?
It is an adapter kit that provides oil cooler ports on a GM LS engine, allowing an external engine oil cooler to be connected to the oil system.
Is it thermostatic?
No. The 35611 is the standard, non-thermostatic version. The thermostatic end cap is used only on the companion 35621 kit.
What cooler fittings does it use?
The ports accept -AN fittings. The -AN fittings are supplied by the installer and are not included in the kit. Unused ports are closed with the provided 1/8" NPT plugs.
What is included?
The kit includes one LS bypass adapter, two adapter o-rings, two 1/8" NPT plugs, and two M6 x 1.0mm bolts.
Can the ports be capped off?
No. The IN and OUT ports must connect to an oil cooler or be looped together. Capping them off would block oil flow.
