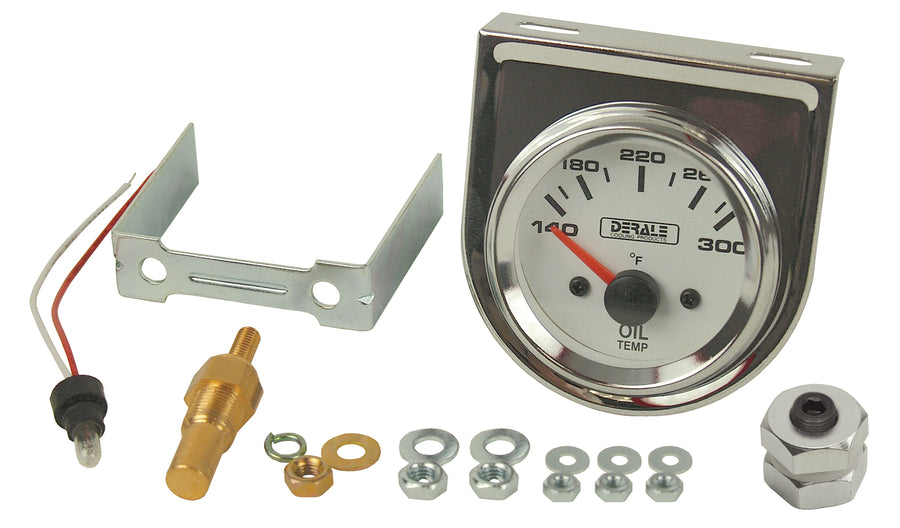

The Derale 13009 is a lighted 2-1/16 inch electric oil temperature gauge kit with a clean black-on-white face that reads from 140 to 300 degrees Fahrenheit. It monitors engine oil or transmission fluid temperature and uses a 1/8 inch NPT sending unit. The kit comes with a mounting bracket, the sensor, and a transmission pan adapter and drain plug so the sensor can be mounted directly in the pan.
Specifications:
- Type: Electric oil/transmission temperature gauge kit
- Gauge size: 2-1/16 inches
- Temperature range: 140 to 300 degrees Fahrenheit
- Face: Lighted, black on white
- Sending unit thread: 1/8 inch NPT

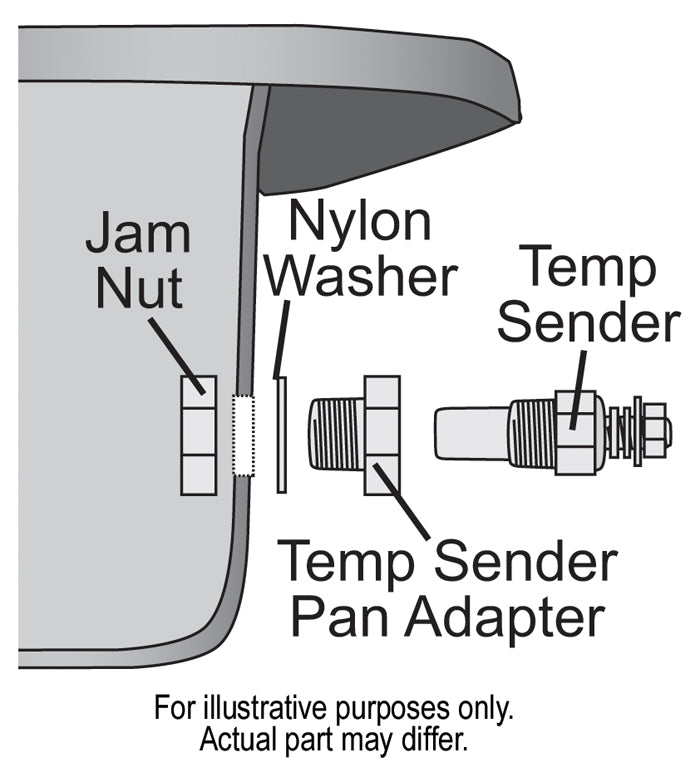

- Included: Mounting bracket, 1/8 inch NPT sensor, transmission pan adapter and drain plug
- Part number: 13009
FAQ
What does the Derale 13009 gauge read?
It is an electric temperature gauge that reads oil or transmission fluid temperature from 140 to 300 degrees Fahrenheit.
What size is the 13009 gauge?
It is a 2-1/16 inch gauge with a lighted black-on-white face.
What sender does the 13009 use?
It uses a 1/8 inch NPT electric sending unit.
What is included with the 13009?
It comes with a mounting bracket, the 1/8 inch NPT sensor, and a transmission pan adapter and drain plug for in-pan mounting.
