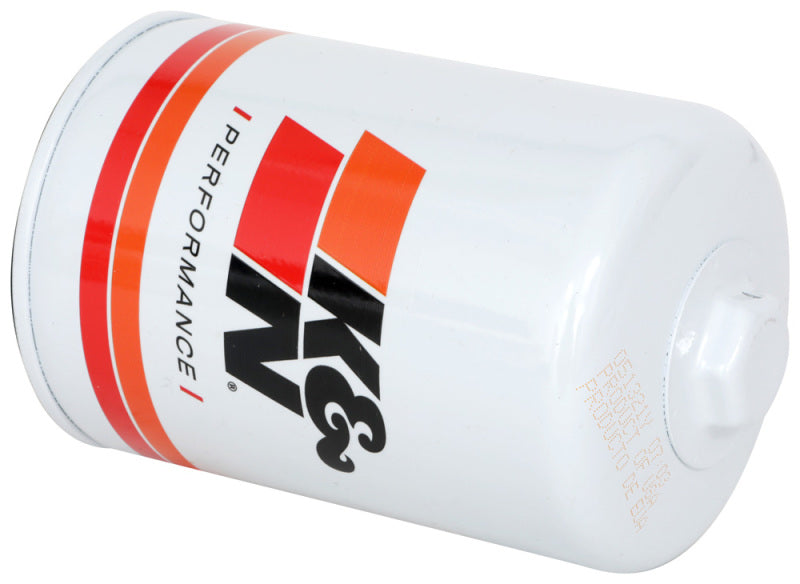

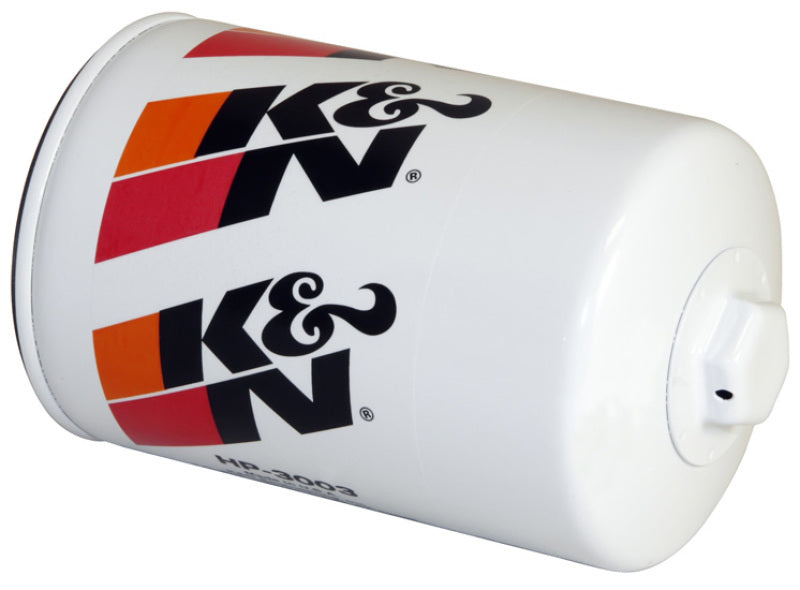

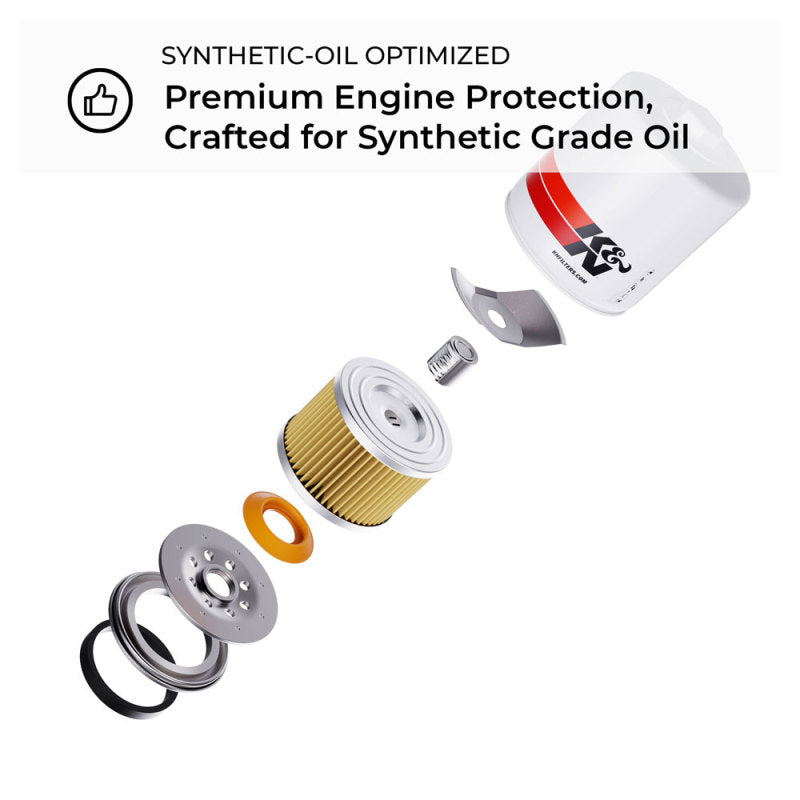

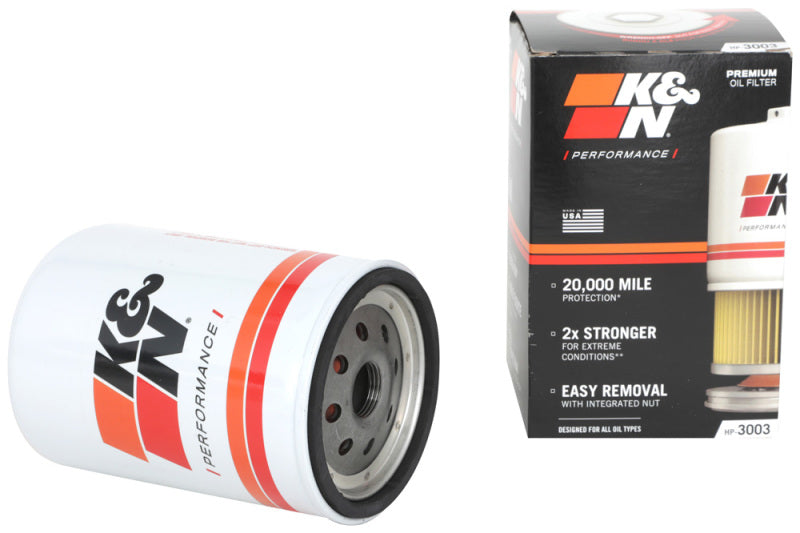

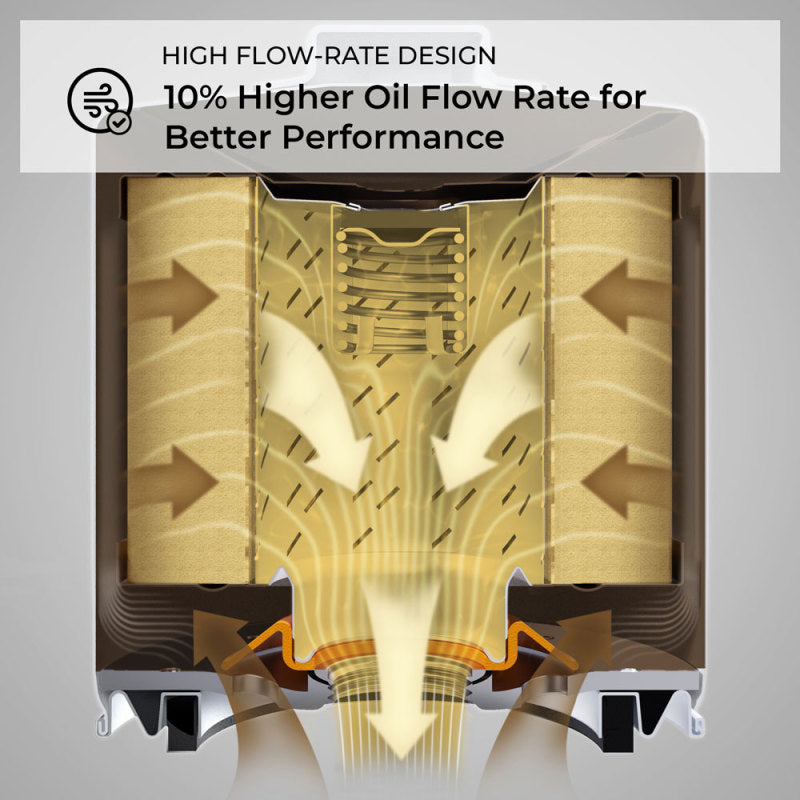

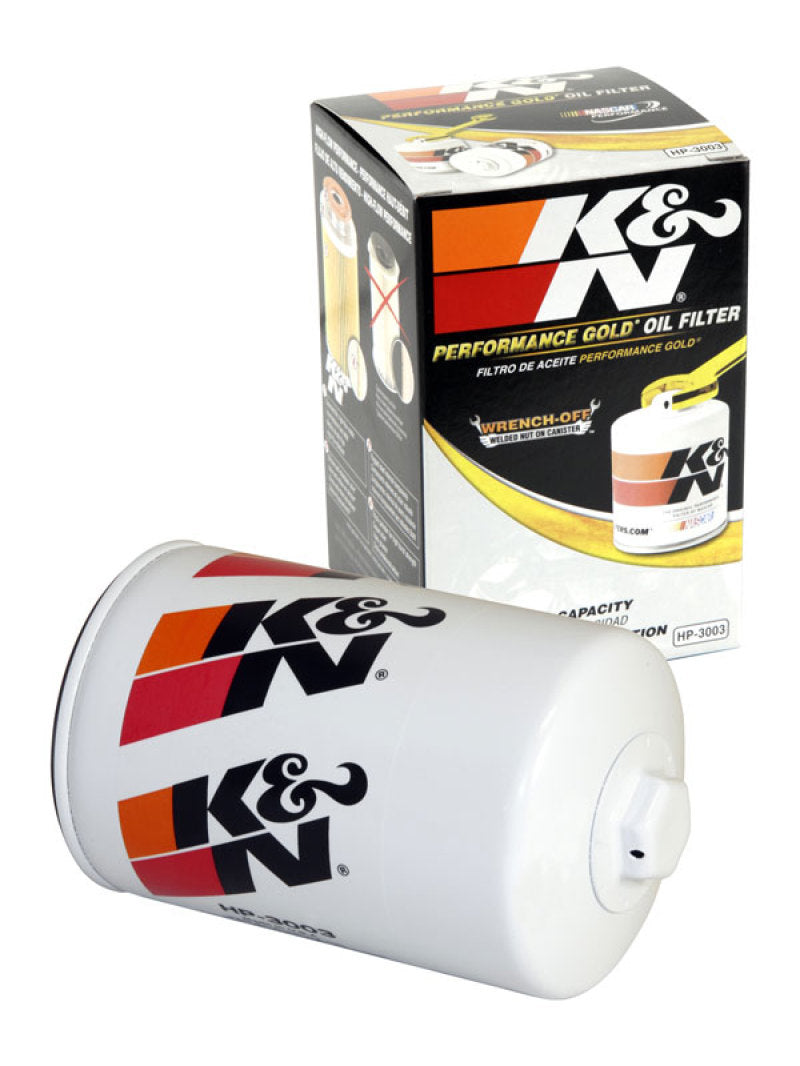

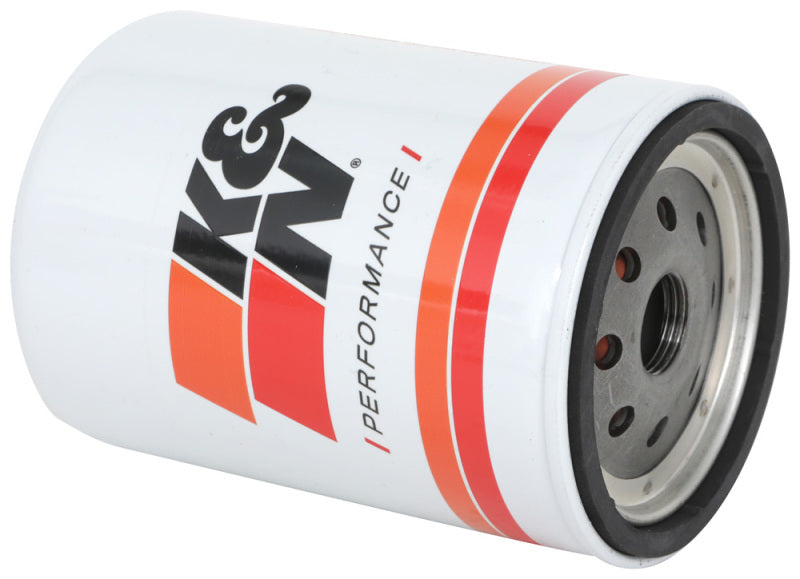

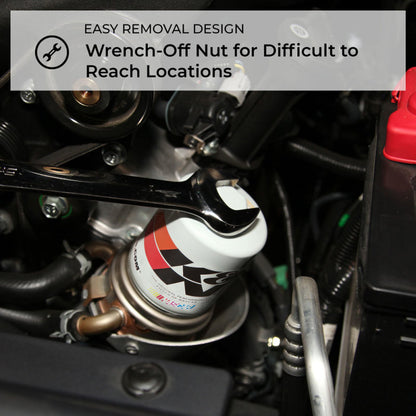

K&N premium oil filters are meticulously engineered to offer outstanding filtration and engine protection. Designed to operate with all synthetic, conventional, and blended motor oils, K&N's pleated synthetic-blend filtration media helps to shield the engine from contaminants and ensure a consistent flow of oil. The heavy-duty canister is engineered to be exceptionally durable, and a one-inch welded hex nut can be used for quick and easy filter removal. Each filter is specifically designed to withstand the service intervals recommended by vehicle manufacturers, and is protected by the K&N 1-Year Limited Warranty.
Specifications:
- Product type: Oil Filter
- Thread: 13/16 In. - 16
- Style: Spin-On
- Outside diameter: 3.688 in (94 mm)
- Height: 5.875 in (149 mm)
- Gasket material: High Temperature Nitrile
- Anti-drain-back valve: Yes
- Bypass valve: Yes
- Relief valve: 11-17
- Removal nut: 1 inch
- Additional O-ring included: No
- Warranty: 1 Year Limited
- Part number: HP-3003
Fits a wide range of IC, Thomas, Chevrolet, GMC, Freightliner and Hummer and other gas applications, 1963-2020. Confirm fitment by matching your OE oil filter part number, thread size, or by contacting us with your year, make, model and engine.
Cross-References (replaces):
- AC Delco PF2232
- AGCO 72515699
- AGCO Allis 72515699
- Bobcat 1992368B
- Bomag 3780204
- Case J908616
- Case J908616A1
- Case J934429
- Case International J908616
- Challenger 72515699
- Champ Labs. LFP2999
- Champion 3903224
- Chevrolet 97214983
- Chevrolet PF2232
- Cummins 3890712
- Cummins 3908616
- Cummins 4378318
- Fiat 151831111
- Ford 3934429
- Fram PH13
- Fram PH5
- Fram PH9100
- Fram TG9100
- Fram XG9100
- Freightliner 3908616
- Gehl 191116
- GMC 97214983
- GMC PF2232
- Gradall 91084001
- Hagie 3908616
- Hesston 3908616
- Hesston 700723392
- Hesston 72515699
- Hitachi 151831111
- Hyundai 11E170110
- Hyundai 3903224
- Ingersoll Rand 35374651
- Kobelco YN50VU0001D9
- Komatsu 161625
- Komatsu 6731525130
Plus additional interchange numbers (65 total). Contact us to confirm a specific cross-reference.
FAQ
Will the K&N HP-3003 fit my vehicle?
Match it to your original equipment oil filter part number, the thread size and gasket dimensions, or the cross-reference list, or contact us with your year, make, model and engine to confirm.
What does the K&N HP-3003 replace?
It cross-references common filters including AC Delco PF2232, AGCO 72515699, AGCO Allis 72515699, Bobcat 1992368B, among others.
Can I use this oil filter with synthetic oil?
Yes. K&N oil filters are designed to work with synthetic, conventional and blended motor oils.
What is the thread size?
The K&N HP-3003 uses a 13/16 In. - 16 thread, 3.688 in (94 mm) outer diameter and 5.875 in (149 mm) height.
What warranty does it carry?
It is backed by the K&N 1 Year Limited Warranty.
