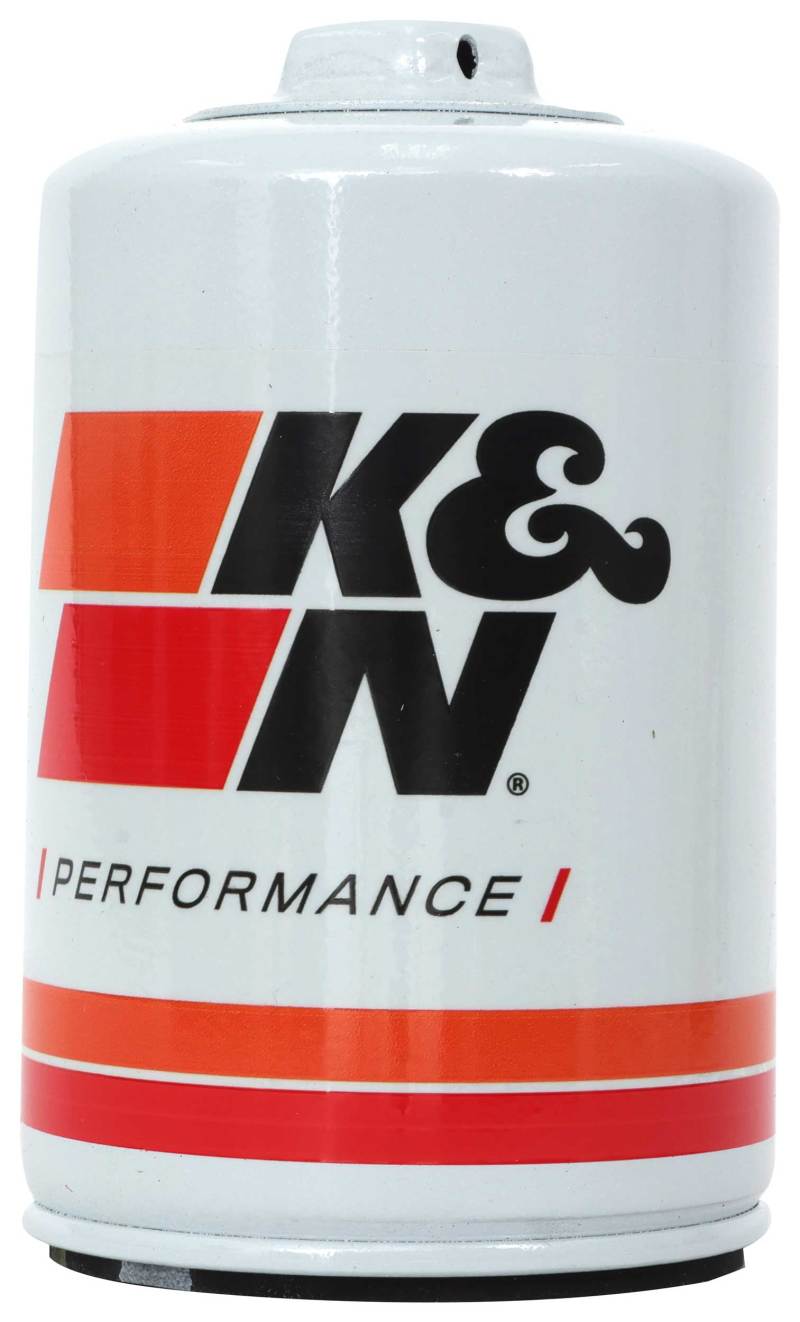

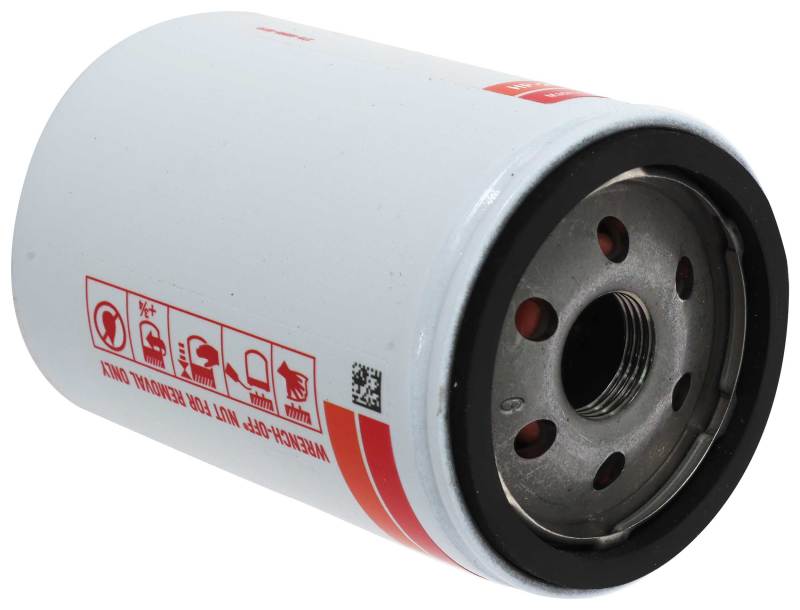

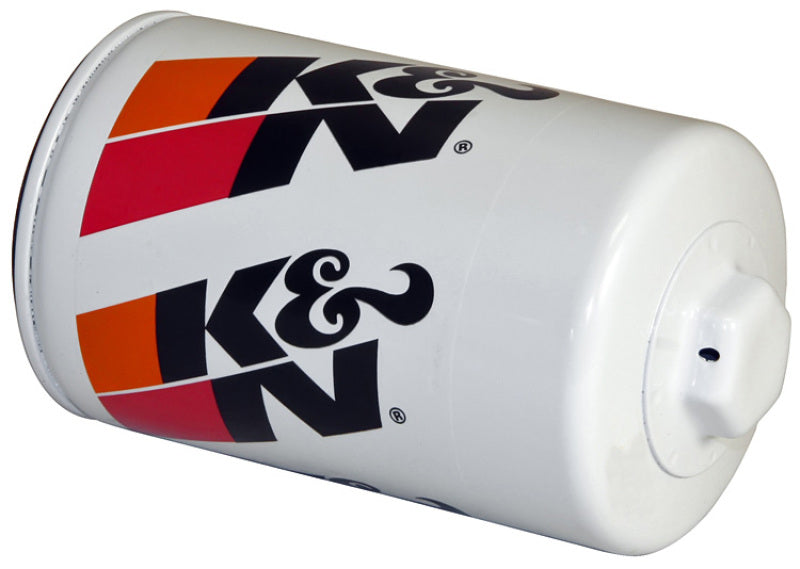

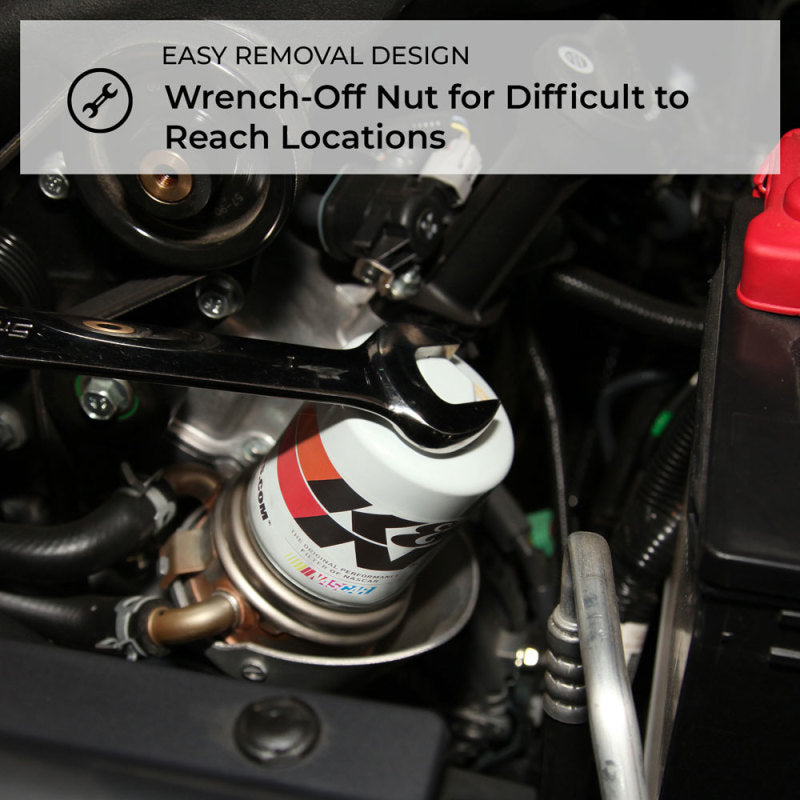

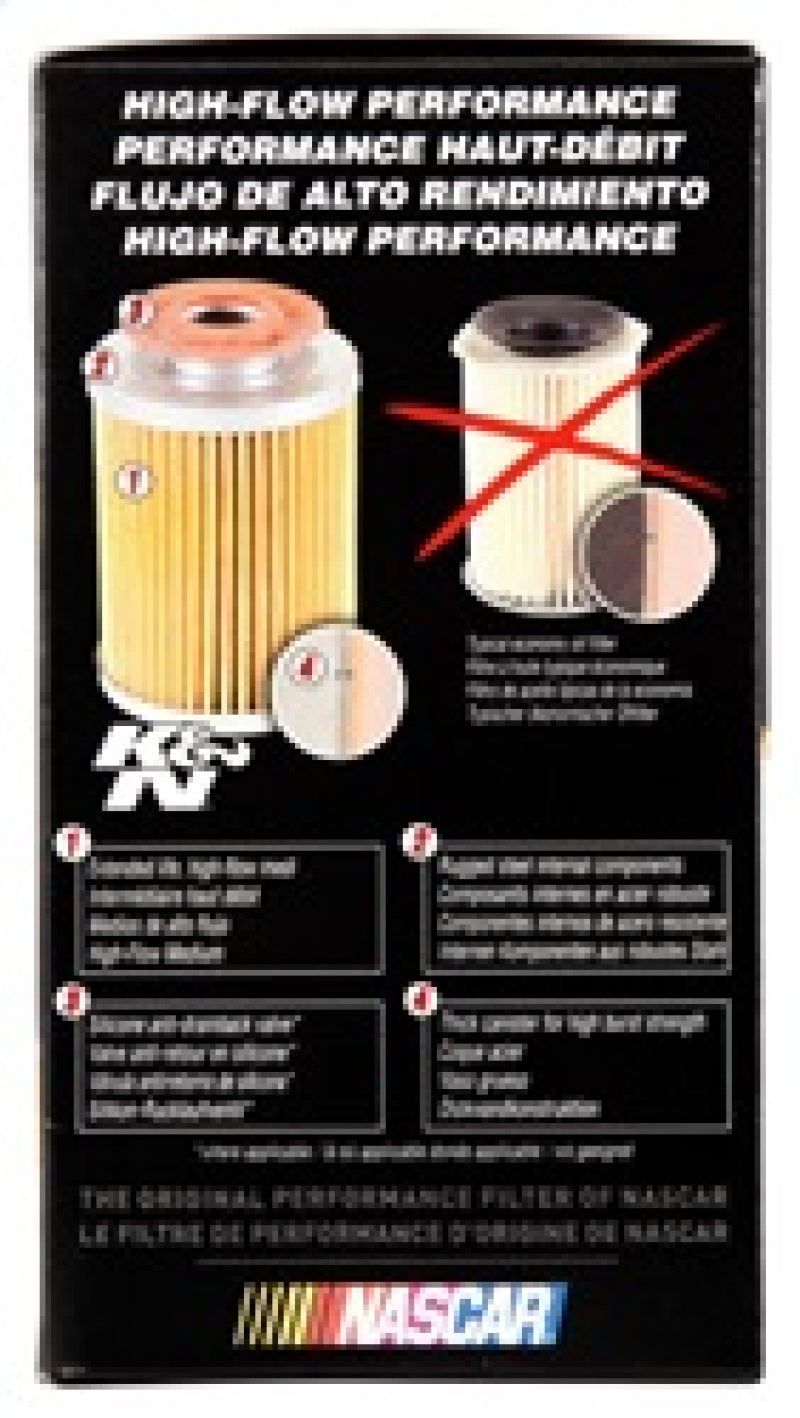

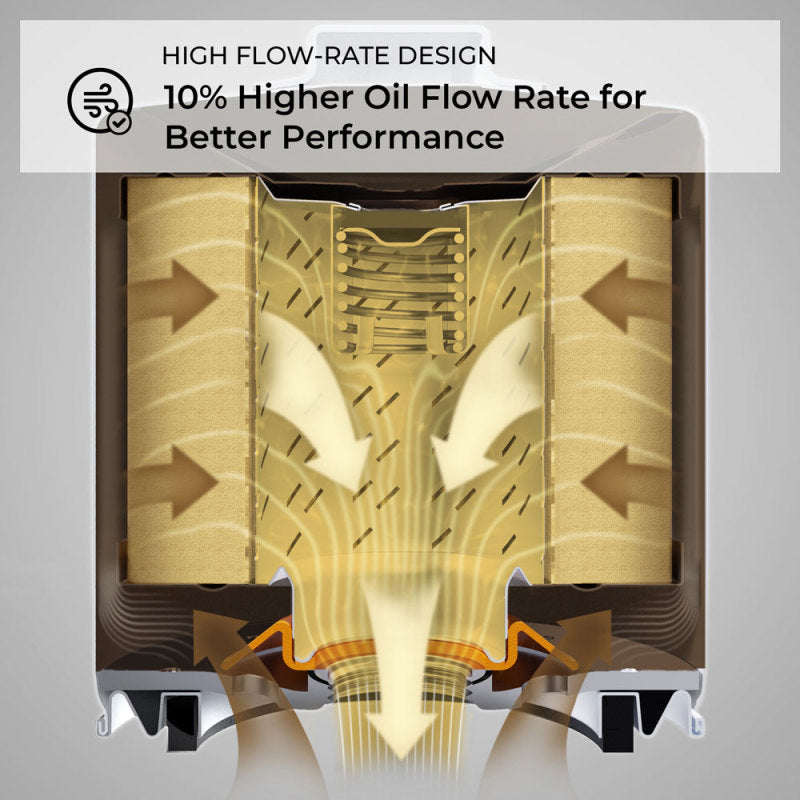

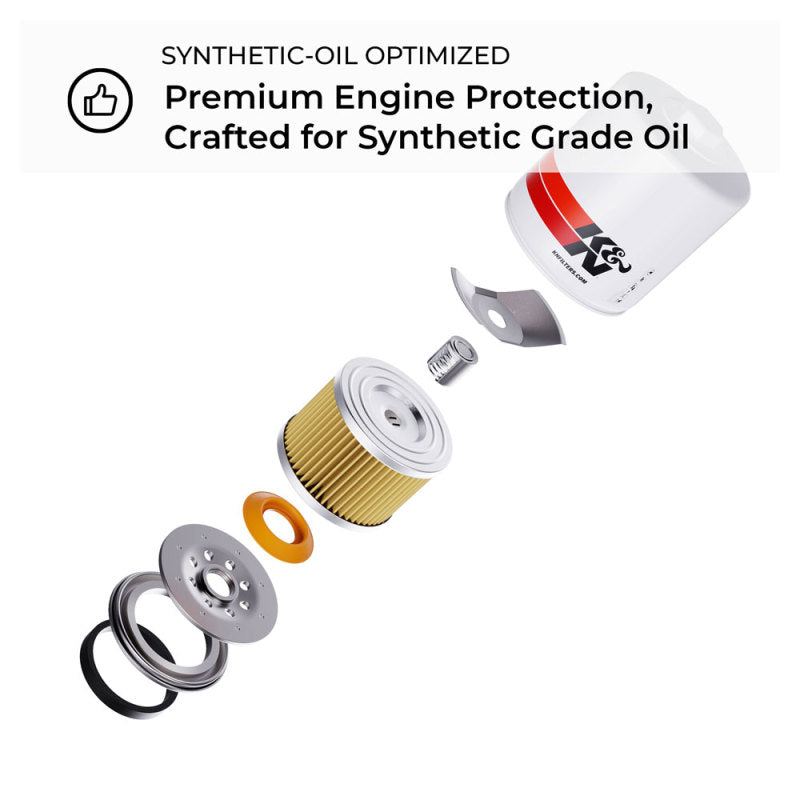

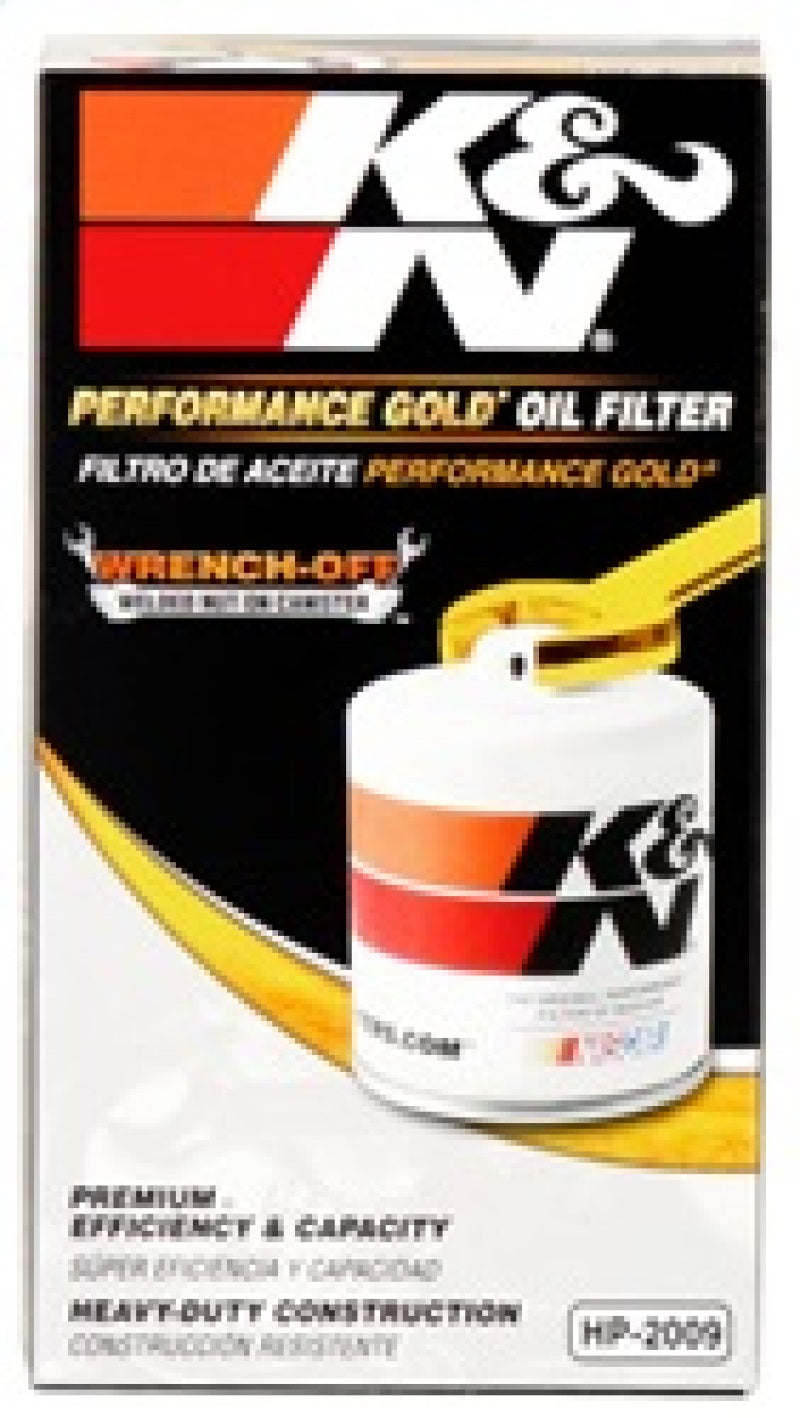

K&N premium oil filters are meticulously engineered to offer outstanding filtration and engine protection. Designed to operate with all synthetic, conventional, and blended motor oils, K&N's pleated synthetic-blend filtration media helps to shield the engine from contaminants and ensure a consistent flow of oil. The heavy-duty canister is engineered to be exceptionally durable, and a one-inch welded hex nut can be used for quick and easy filter removal. Each filter is specifically designed to withstand the service intervals recommended by vehicle manufacturers, and is protected by the K&N 1-Year Limited Warranty.
Specifications:
- Product type: Oil Filter
- Thread: 3/4 In. - 16
- Style: Spin-On
- Outside diameter: 3 in (76 mm)
- Height: 5.063 in (129 mm)
- Gasket material: High Temperature Nitrile
- Anti-drain-back valve: Yes
- Bypass valve: Yes
- Relief valve: 11-14
- Removal nut: 1 inch
- Additional O-ring included: No
- Warranty: 1 Year Limited
- Part number: HP-2009
Fits a wide range of Ford, Mazda, Volkswagen, Seat, Audi and Chrysler and other gas applications, 1963-2015. Confirm fitment by matching your OE oil filter part number, thread size, or by contacting us with your year, make, model and engine.

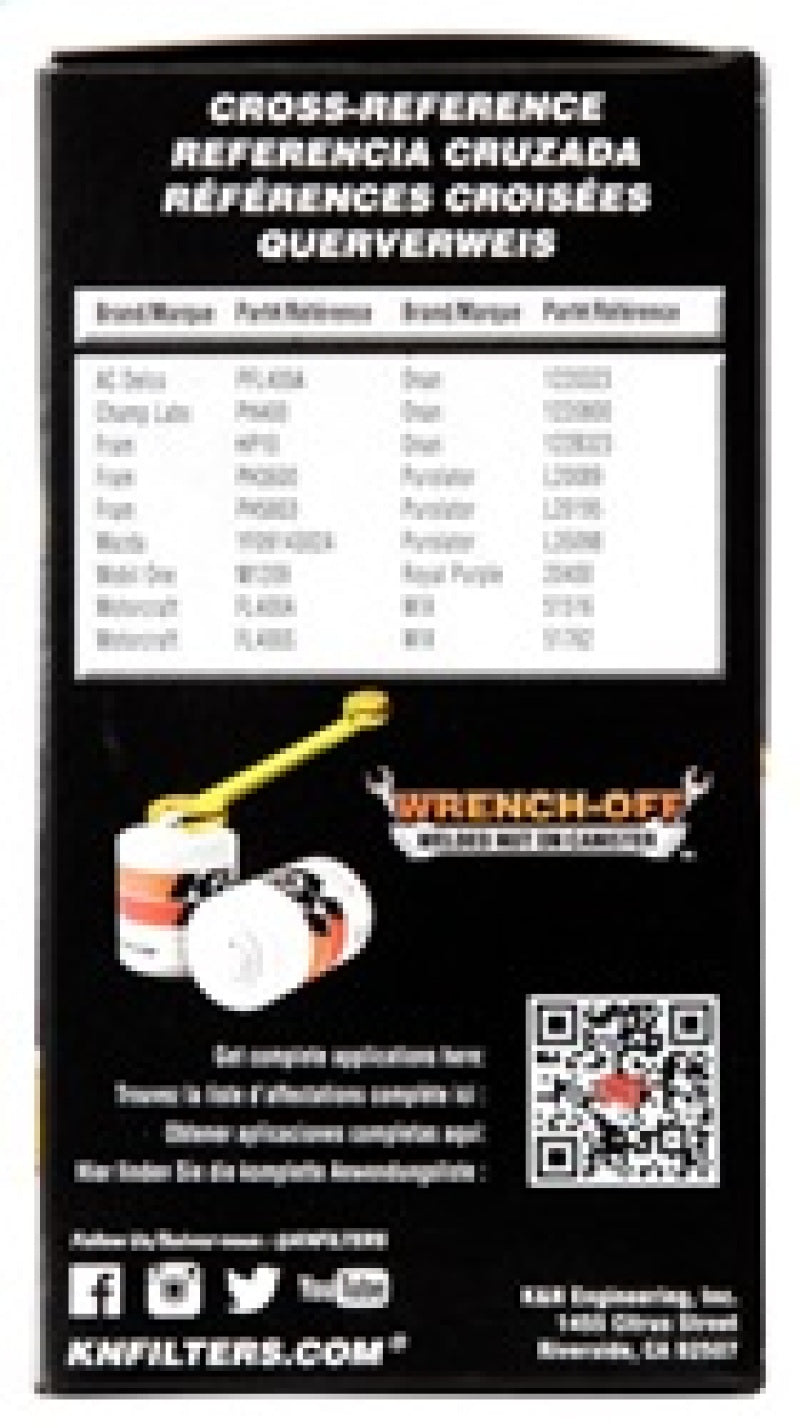

Cross-References (replaces):
- AC Delco PFL400A
- Advance 480704
- Allis Chalmers 122B323
- Ariens 122B323
- Ariens 277233
- Badger Dynamic 122B323
- Basic Equipment 277233
- Bobcat 6512143
- Bobcat 6647672
- Bolens 277233
- Boss 7000032431
- Cab Comfot System 1063696
- Champ Labs. PH400
- Davis 122B323
- Davis 277233
- Flying J 1063696
- Ford 276513
- Ford FL400
- Ford SBA140516180
- Ford XW4E6714EA
- Fram HP10
- Fram PH3600
- Fram PH3614
- Fram PH5803
- Fram PH8316
- Fram TG3600
- Fram TG3614
- Fram XG3600
- Fram XG3614
- Gehl 600287
- Gehl 611990
- Gehl 78852
- Gehl 83715
- Genie FL400A
- Genie FL400S
- Grasshopper 1220406
- Hydra-Mac 4209146
- Idle Buster 7000032431
- Jacobsen 277233
- JLG Industries FL400A
Plus additional interchange numbers (73 total). Contact us to confirm a specific cross-reference.
FAQ
Will the K&N HP-2009 fit my vehicle?
Match it to your original equipment oil filter part number, the thread size and gasket dimensions, or the cross-reference list, or contact us with your year, make, model and engine to confirm.
What does the K&N HP-2009 replace?
It cross-references common filters including AC Delco PFL400A, Advance 480704, Allis Chalmers 122B323, Ariens 122B323, among others.
Can I use this oil filter with synthetic oil?
Yes. K&N oil filters are designed to work with synthetic, conventional and blended motor oils.
What is the thread size?
The K&N HP-2009 uses a 3/4 In. - 16 thread, 3 in (76 mm) outer diameter and 5.063 in (129 mm) height.
What warranty does it carry?
It is backed by the K&N 1 Year Limited Warranty.
