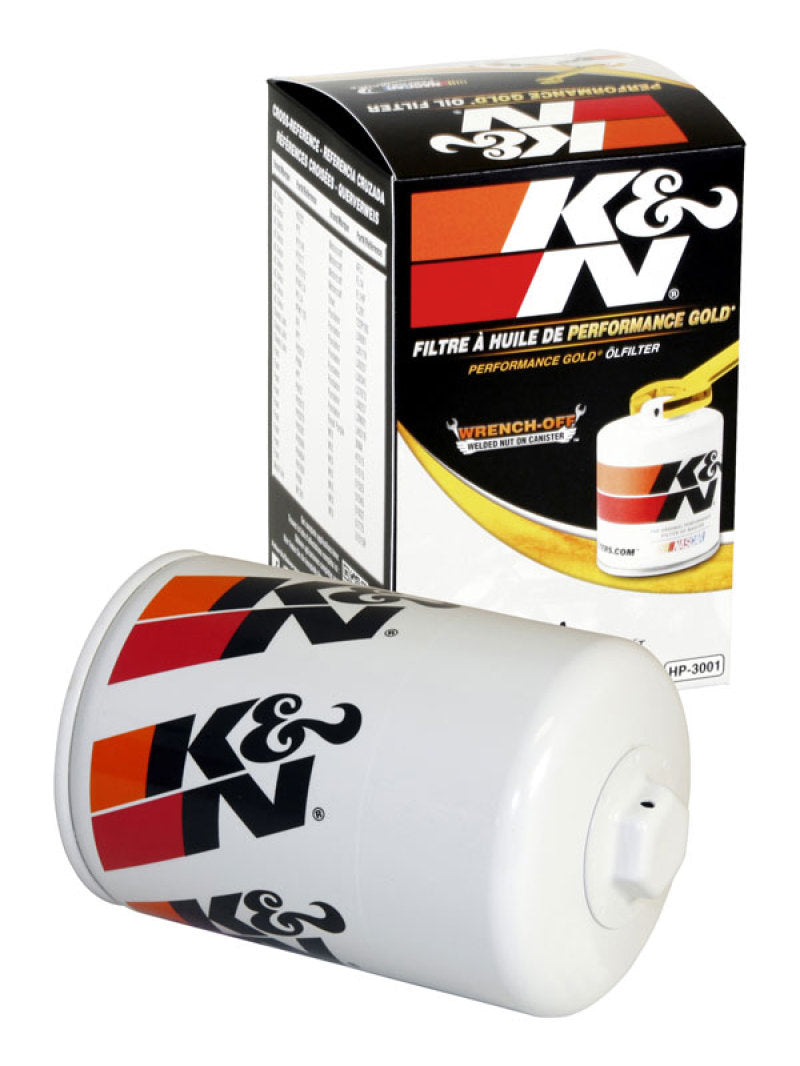

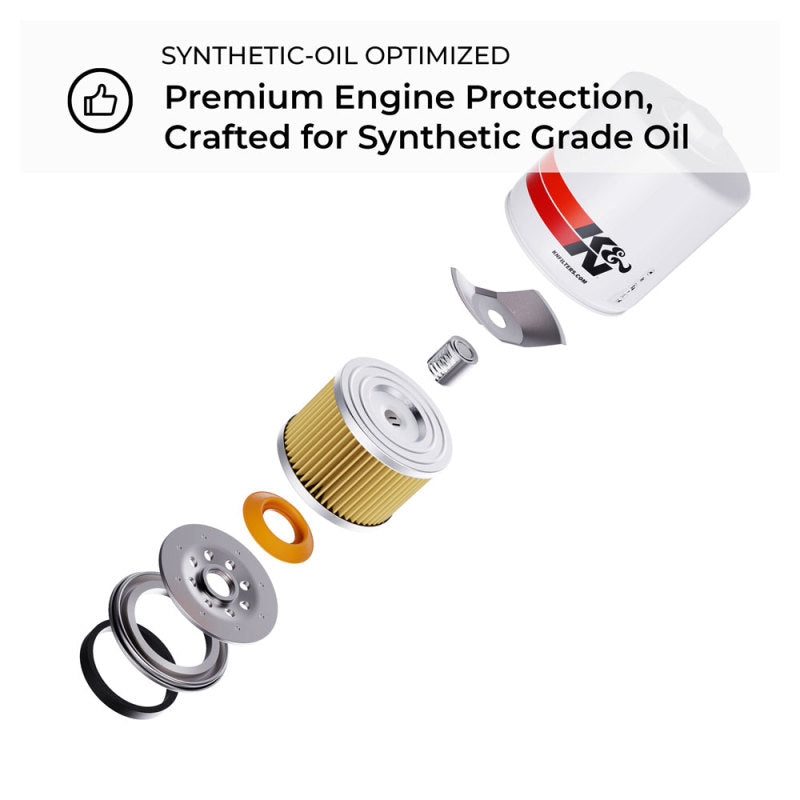

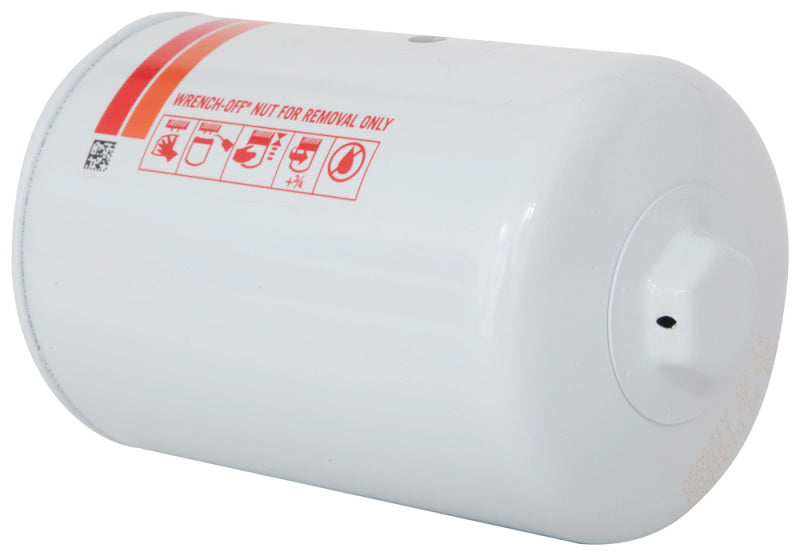

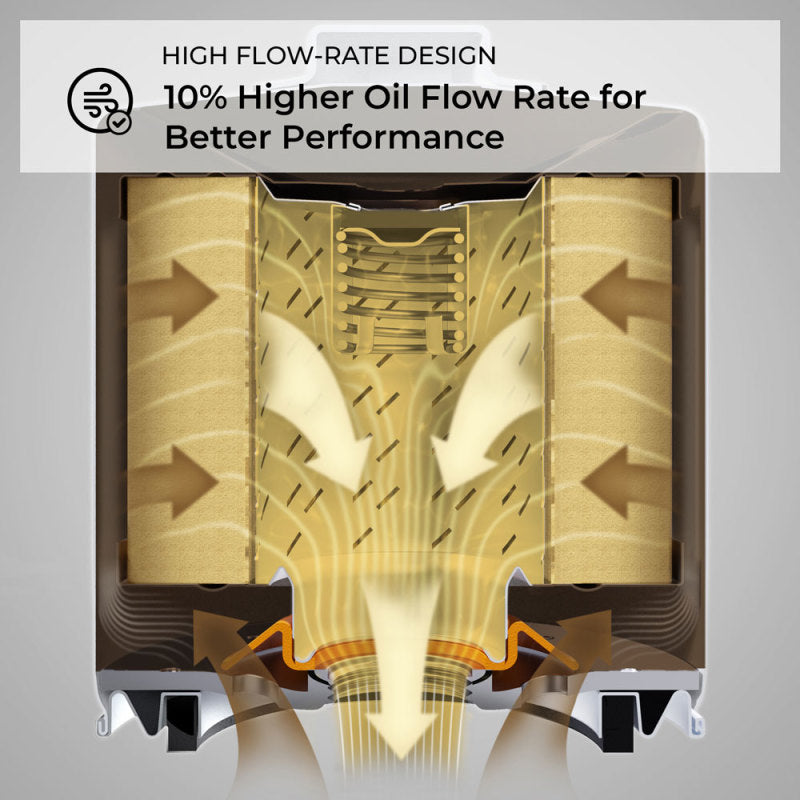

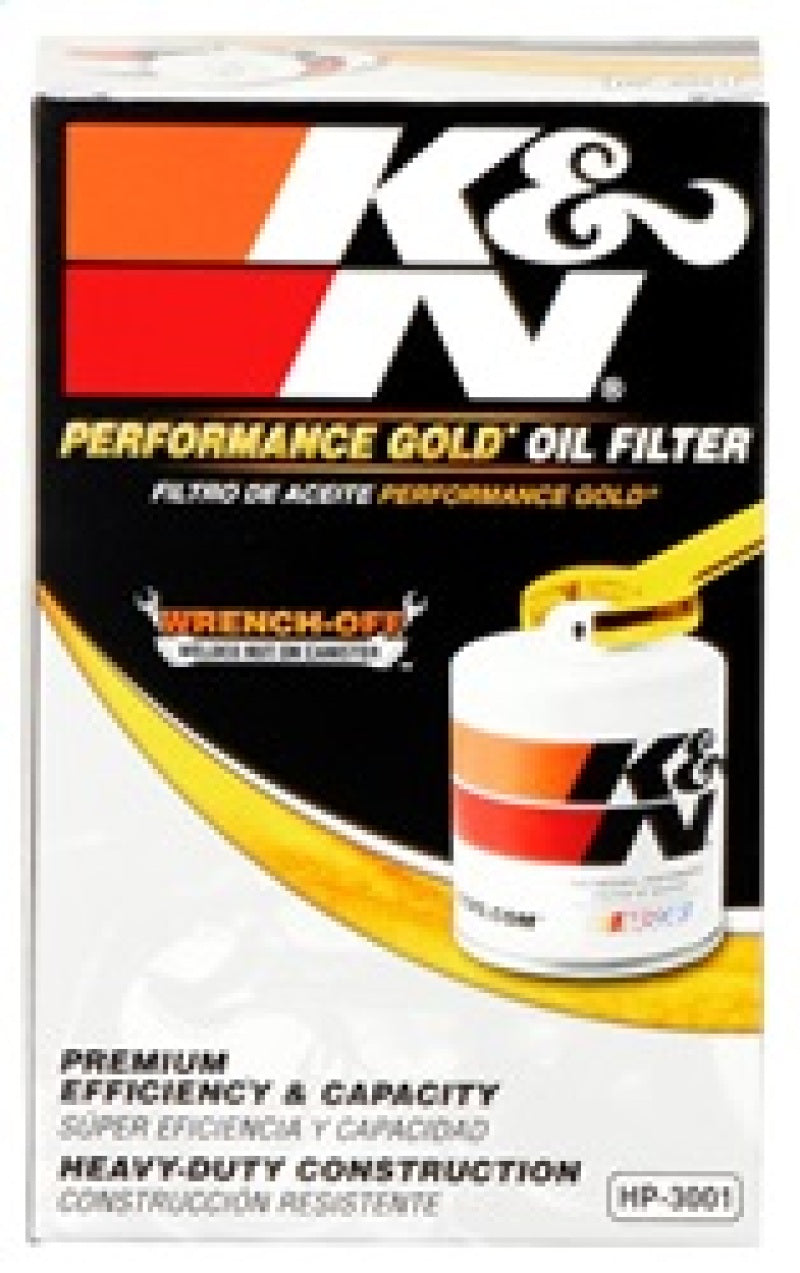

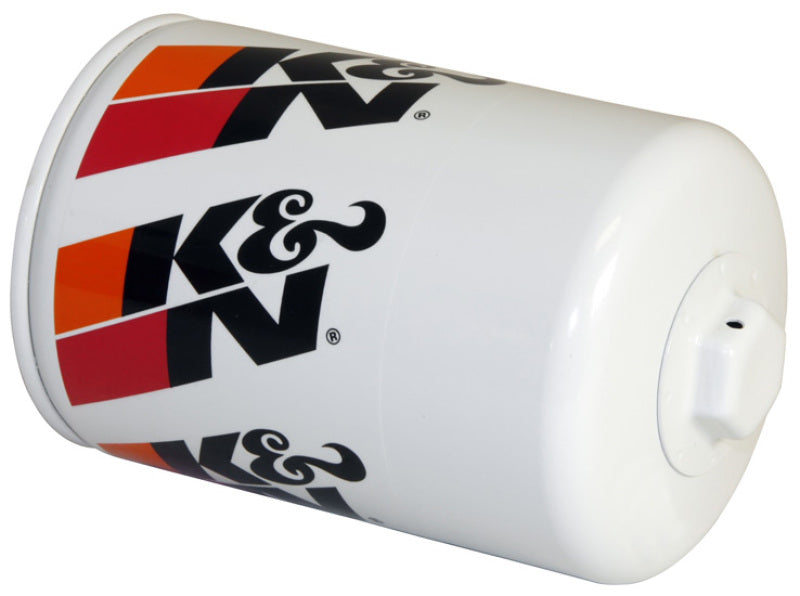

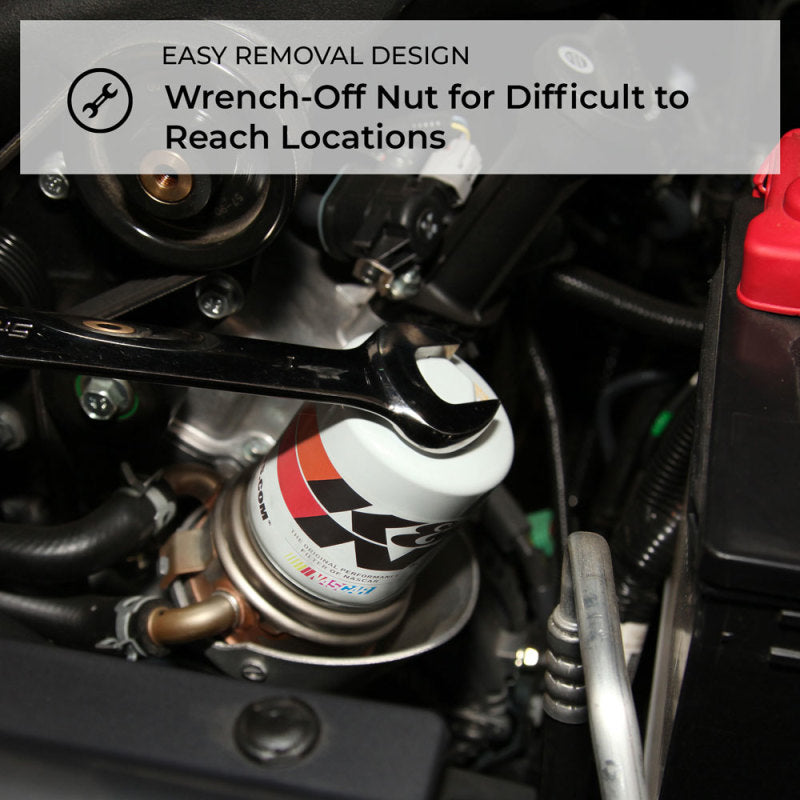

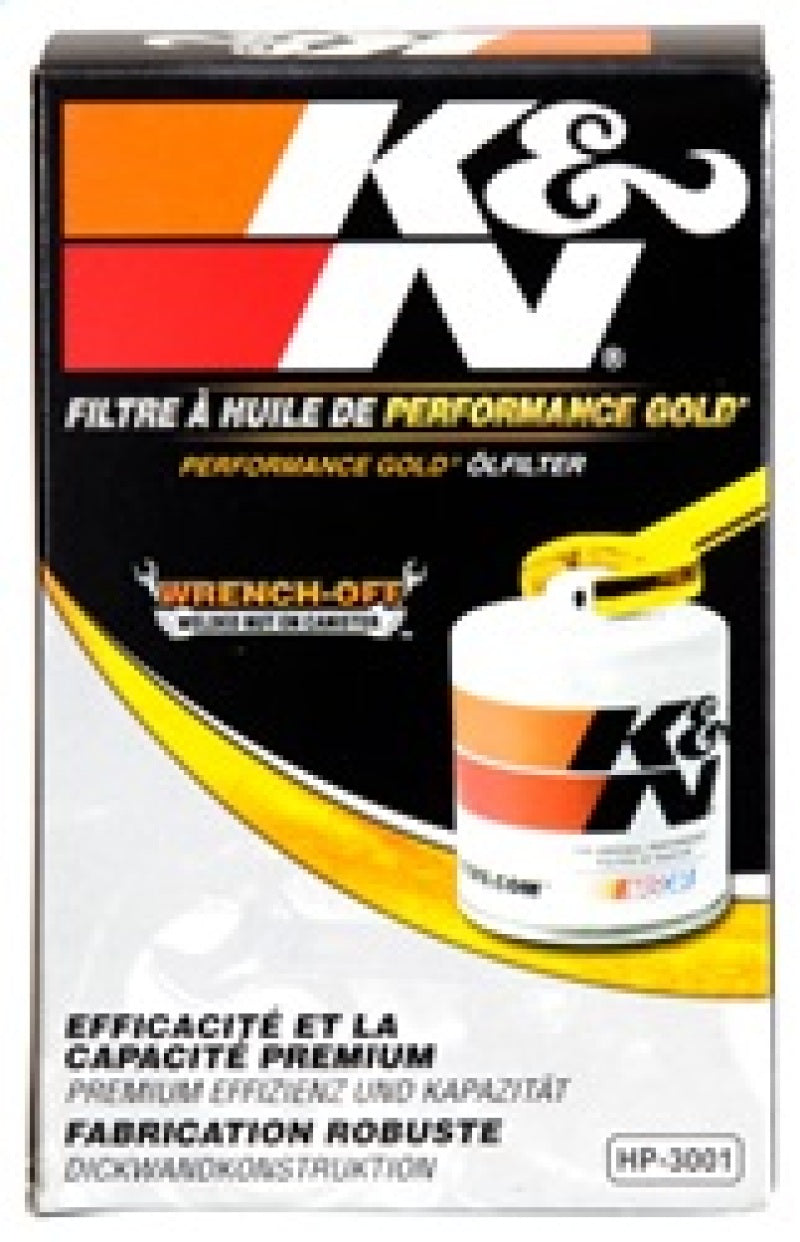

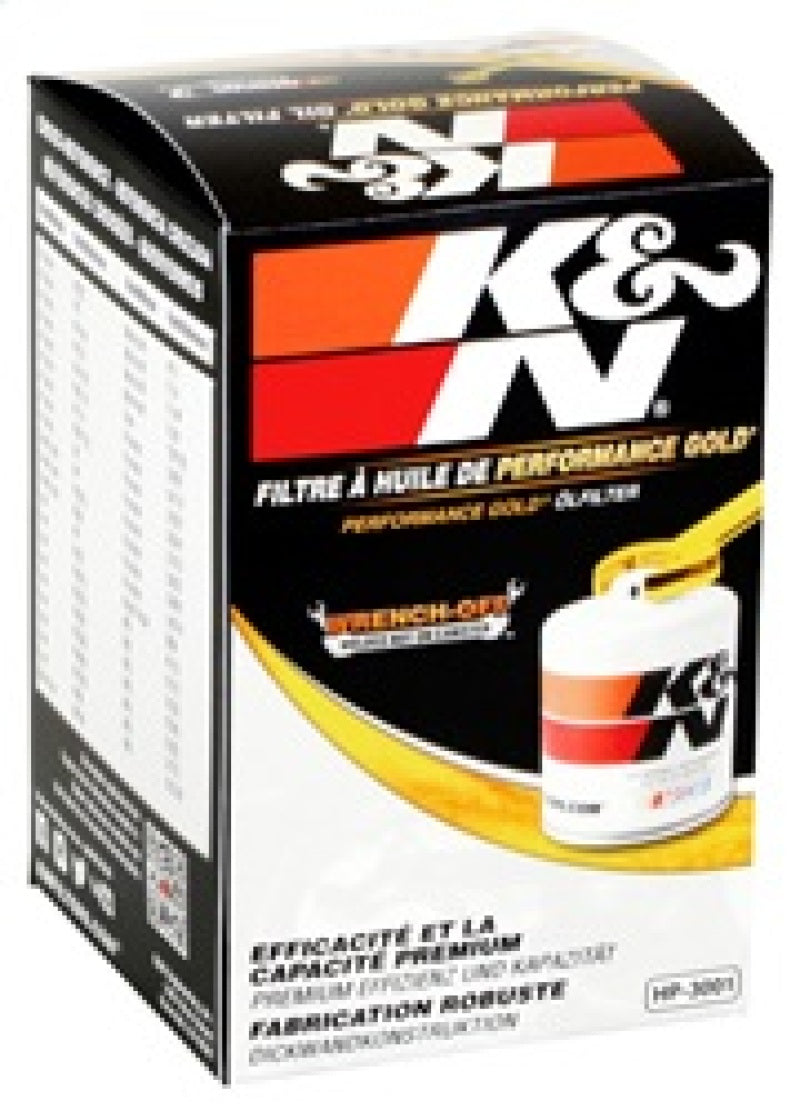

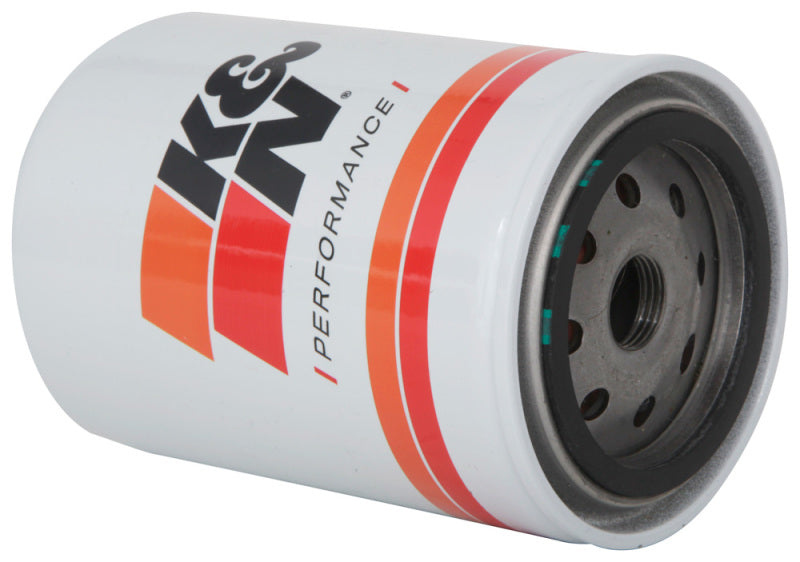

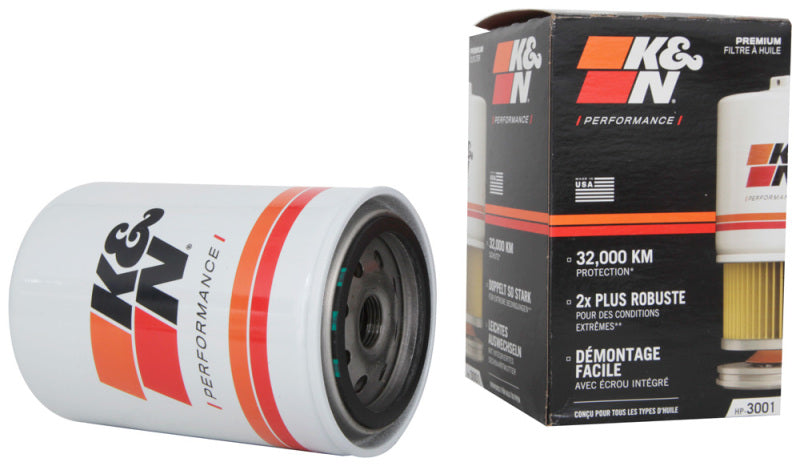

K&N premium oil filters are meticulously engineered to offer outstanding filtration and engine protection. Designed to operate with all synthetic, conventional, and blended motor oils, K&N's pleated synthetic-blend filtration media helps to shield the engine from contaminants and ensure a consistent flow of oil. The heavy-duty canister is engineered to be exceptionally durable, and a one-inch welded hex nut can be used for quick and easy filter removal. Each filter is specifically designed to withstand the service intervals recommended by vehicle manufacturers, and is protected by the K&N 1-Year Limited Warranty.
Specifications:
- Product type: Oil Filter
- Thread: 3/4 In. - 16UNF-2B
- Style: Spin-On
- Outside diameter: 3.656 in (93 mm)
- Height: 5.719 in (145 mm)
- Gasket material: High Temperature Nitrile
- Anti-drain-back valve: Yes
- Bypass valve: Yes
- Relief valve: 8-11
- Removal nut: 1 inch
- Additional O-ring included: No
- Warranty: 1 Year Limited
- Part number: HP-3001
Fits a wide range of Peterbilt, Chevrolet, Freightliner, International, Kenworth and Mack and other gas applications, 1950-2022. Confirm fitment by matching your OE oil filter part number, thread size, or by contacting us with your year, make, model and engine.

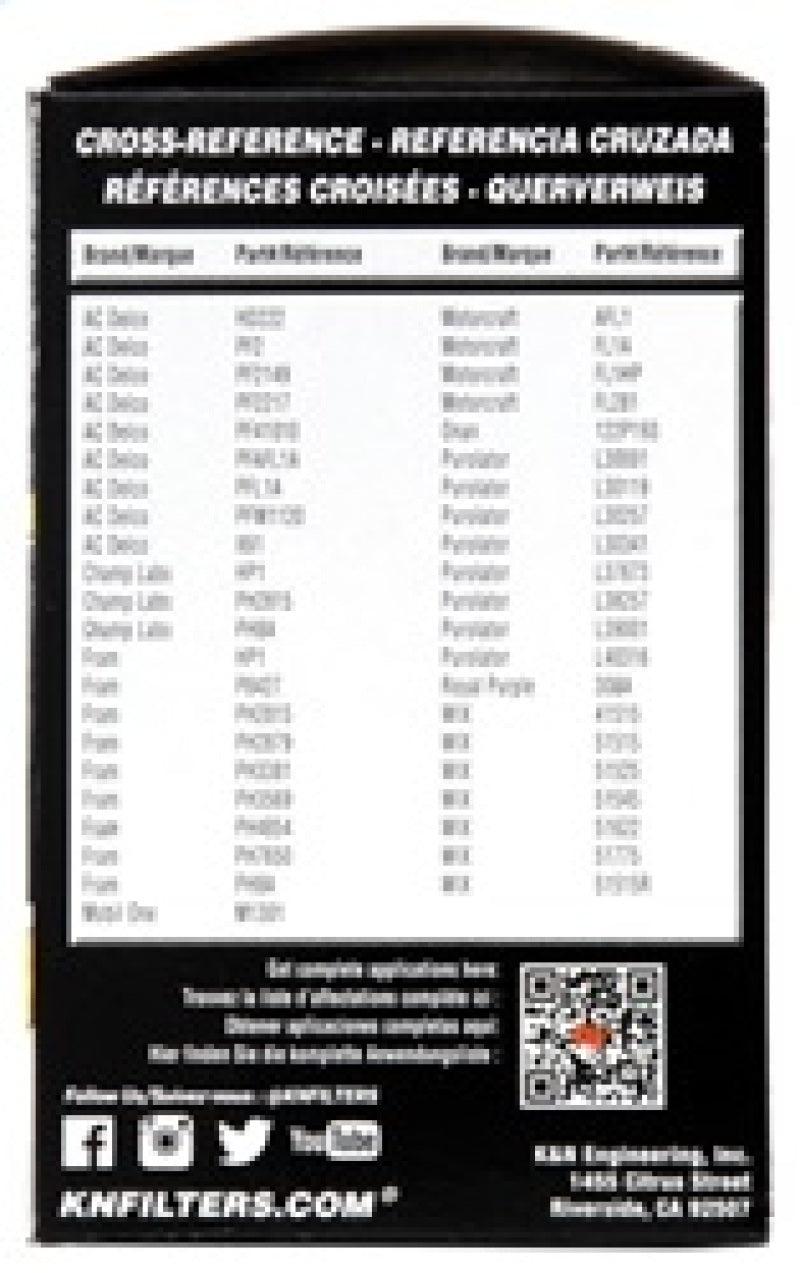

Cross-References (replaces):
- AC Delco HD222
- AC Delco PF2
- AC Delco PF2149
- AC Delco PF2217
- AC Delco PF41010
- AC Delco PFAFL1A
- AC Delco PFL1A
- AC Delco PFW1120
- AC Delco X61
- AG Chem C1AZ6731A
- Alaska Diesel 2405401
- Allis Chalmers 237000
- Allis Chalmers 2370005
- Allis Chalmers 237395
- Allis Chalmers 2513810
- Allis Chalmers 45116290
- Allis Chalmers 4855745
- Allis Chalmers 70237000
- Allis Chalmers 74511629
- Allis Chalmers C1AZ6731A
- Allison Transmission 690348
- Arrow 162709A
- Athey FL1A
- Autocar 690348
- Aveling Barford 9006695
- Avia BC1031
- Basic Equipment 2654342
- Bros E380084
- Case 1959757C1
- Case A146696
- Case A33487
- Case A37189
- Case D29891
- Case G45210
- Caterpillar 364464
- Caterpillar 773673
- Champ Labs. HP1
- Champ Labs. PH2815
- Champ Labs. PH8A
- Chevrolet 97182282
Plus additional interchange numbers (244 total). Contact us to confirm a specific cross-reference.
FAQ
Will the K&N HP-3001 fit my vehicle?
Match it to your original equipment oil filter part number, the thread size and gasket dimensions, or the cross-reference list, or contact us with your year, make, model and engine to confirm.
What does the K&N HP-3001 replace?
It cross-references common filters including AC Delco HD222, AC Delco PF2, AC Delco PF2149, AC Delco PF2217, among others.
Can I use this oil filter with synthetic oil?
Yes. K&N oil filters are designed to work with synthetic, conventional and blended motor oils.
What is the thread size?
The K&N HP-3001 uses a 3/4 In. - 16UNF-2B thread, 3.656 in (93 mm) outer diameter and 5.719 in (145 mm) height.
What warranty does it carry?
It is backed by the K&N 1 Year Limited Warranty.
