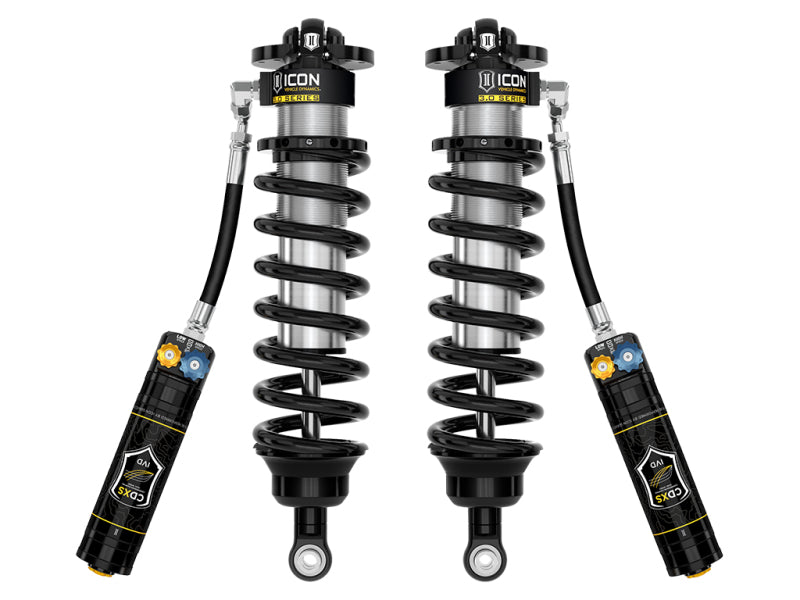

    ICON 22-25 Toyota Tundra 3.0 Series VS RR CDXS Coilover Kit

    Vendor: ICON
    Part Number: 58775X
    Regular Price $3,749.95

    In Stock

    Not sure it fits your vehicle?
    Email sales@berryperformancesales.com with your year, make, model and engine, and we'll help you check fitment before you order.
    Fast Fulfillment: In-stock orders typically ship within 1 to 2 business days.
    Free Shipping on Orders Over $99 | Excludes freight shipments
    International Shipping Available: email sales@berryperformancesales.com for a quote.
    Payment & Security

    Secure, encrypted checkout. Card details go straight to the payment processor and are never stored by us.

    • Amazon
    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Shop Pay
    • Venmo
    • Visa
    Share to:

    3.0 Series shocks boast 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.

    Installation Instructions
    • ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
    • ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
    • Adjustable up to 1.25-3.25" of front lift height over stock on Tundra or 3-4.25" of front lift on Sequoia
    • PTFE lined spherical bearings for extended longevity and minimal deflection
    • Vehicle specific design and tuning for superior shock damping and control
    • 3.0” Body diameter for increased oil volume and larger piston area
    • CNC machined 6061 aluminum components with a black anodized finish
    • 7/8” diameter induction hardened, chrome plated shock shafts
    • 40% increase in front wheel travel over stock
    • Fully Rebuildable and Re-tunable

    This Part Fits:

    Year Make Model Submodel
    2025-2026 Toyota Sequoia 1794 Edition
    2023-2026 Toyota Sequoia Capstone
    2023-2026 Toyota Sequoia Limited
    2023-2026 Toyota Sequoia Platinum
    2023-2026 Toyota Sequoia SR5
    2023-2026 Toyota Sequoia TRD Pro
    2022-2026 Toyota Tundra 1794 Edition
    2022-2026 Toyota Tundra Limited
    2022-2026 Toyota Tundra Platinum
    2022-2026 Toyota Tundra SR
    2022-2026 Toyota Tundra SR5
    2022-2026 Toyota Tundra TRD Pro
