Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
- Quick, precise, on-vehicle adjustment for both caster and camber using ICON's Double Adjuster System
- Patented Delta Joint PRO (U.S. Pat. 10,731,700) allows maximum articulation without binding
- Corrects suspension geometry and allows for proper wheel alignment on lifted vehicles

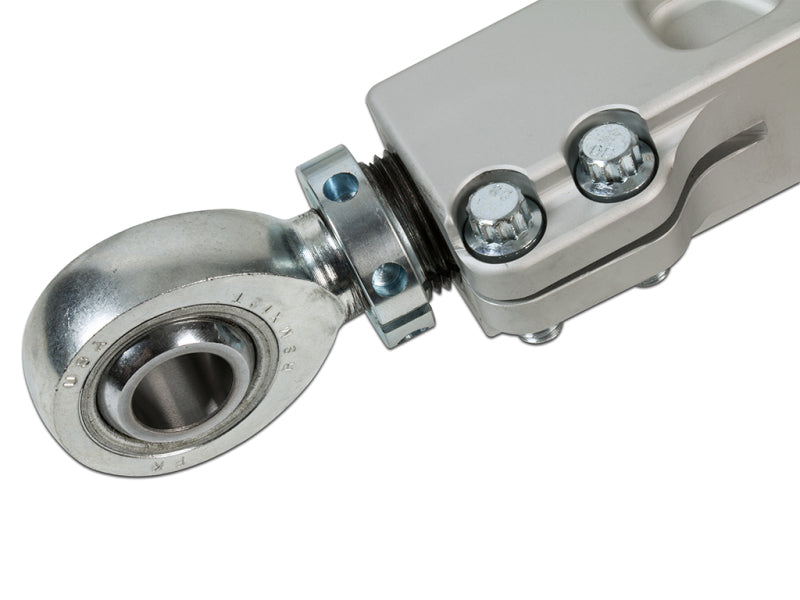

- FK Rod Ends at chassis pivots for strength and precision driving characteristics

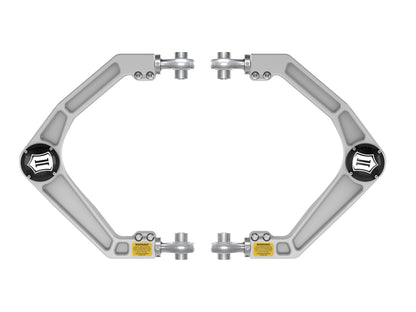

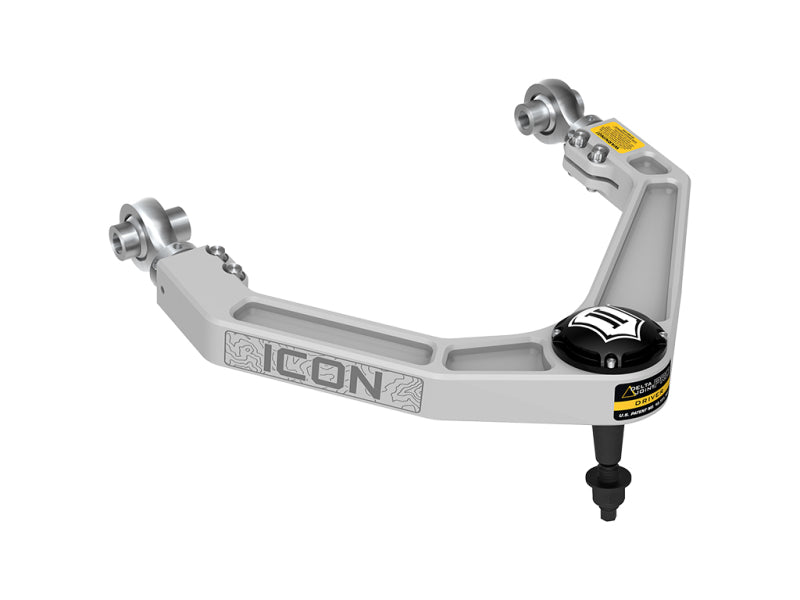

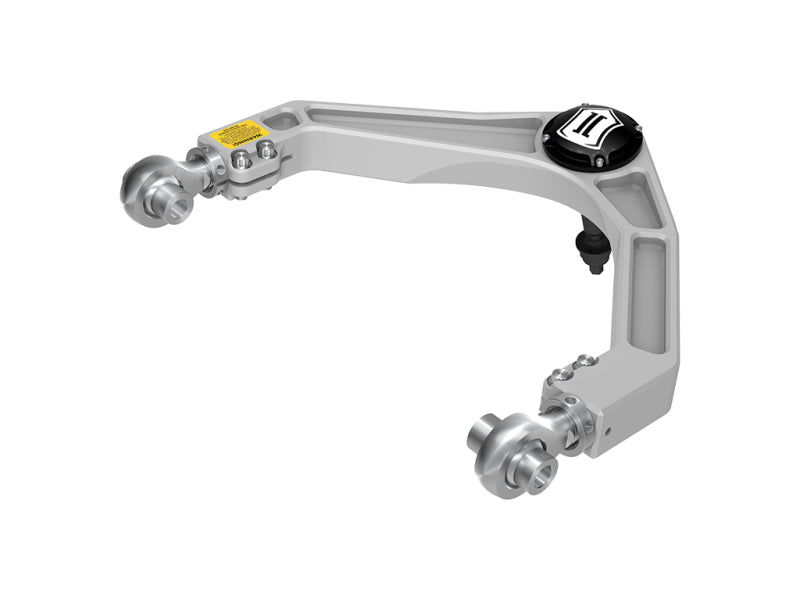

- CNC machined 6061 billet aluminum construction with satin anodized finish
- Delta Joint PRO is 100% serviceable and rebuildable
- Built in O-ring sealed dust cover cap
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2025 | Ram | 1500 | RHO |
| 2021-2024 | Ram | 1500 | TRX |
| 2021 | Ram | 1500 | TRX Launch Edition |
