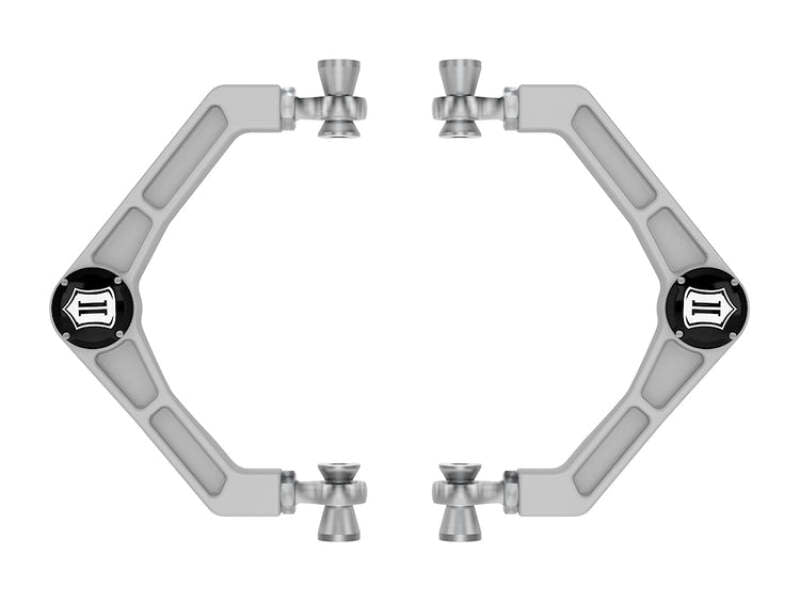

ICON 20-26 GM 2500/3500 HD Billet UCA DJ PRO HD Kit

ICON suspension components with the all-new Delta Joint Pro HD represent the state of the art in off-road performance and durability. Delta Joint Pro HD is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint Pro HD features a rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint Pro, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint Pro HD is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal. Optimized for heavy duty truck applications, the Delta Joint Pro HD differs from a Delta Joint Pro for other applications with its slotted housing that adds additional support to the lower bearing race. This extra support significantly increases pull out strength beyond that of a standard Delta Joint Pro, ensuring the ball joint can handle the extreme loads found at the maximum limits of wheel travel on HD truck applications. All while maintaining the same 90-degree range of motion.

• Delta Joint Pro HD is optimized for HD truck applications, featuring a slotted housing for significantly increased pull strength
• Corrects suspension geometry and allows for proper wheel alignment on trucks with up to 3.5” of lift
• FK Rod Ends at chassis pivots for strength and precision driving characteristics
• CNC machined 6061 billet aluminum construction with satin anodized finish
• Delta Joint Pro HD allows maximum articulation without binding
• Allows for precise adjustment of both caster and camber
• Delta Joint Pro HD is 100% serviceable and rebuildable
• Built in O-ring sealed dust cover cap

This Part Fits:
