The engineers at ICON Vehicle Dynamics took a different approach to position sensitive performance in our 3.0 front coil over shock. Instead of bypassing a small internal piston at the cost of poor control, road holding, and cornering like a traditional internal position sensitive shock, our shock starts with a true 3” main piston that has robust features such as digressive rebound and flutter stack compression. This combination produces outstanding control, great response, and unparalleled ride performance. To achieve even more control for extreme off-road use, we added an additional internal hydraulic system (much like an external mounted hydraulic bump stop) that produces the extreme forces required during the last 40% of travel to achieve maximum bottom out control. These multiple stages of compression and rebound have been tuned independently to maximize overall performance of the Ford SVT Raptor front suspension. For owners who wish to optimize the ride specific to his or her liking, the front coil-over shocks are equipped with an external, “Easy to Adjust” Compression Damping Control Valve, that is effective for the entire stroke of the shock. This compression adjustment valve offers you 10 high resolution settings, each bringing a true feel difference from soft to firm.
Installation InstructionsInstallation Instructions
Installation Instructions
- Special Engineered Dampened Valve Stops for Quiet and Precise Operation without the Standard Bypass Loud “Clicking” Noise you will find with Other Brands
- High Flow CNC Machined Welded Bypass Blocks designed to Increase Fluid Flow for Enhanced Performance & High Definition Tuning
- ICON Engineered Eibach 3 5/8” ID High Quality Chrome Silicon Steel Springs that offer increased travel and performance
- Easy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of Terrains
- Direct Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protection
- Nitrogen Charged 6063-T832 Aluminum 10” Remote Reservoirs that are Precision CNC Honed & Hard Anodized
- High Resolution Bypass Valves Designed for Noticeable Fine Tune Adjustments in Rebound and Compression
- Direct Bolt in to OEM Location with Bypass Adjustment Knobs Easily Accessible for Tuning Adjustment
- Replaceable Bypass Tubes That Can Easy Slide in to Position if you were to Dent or Damage One
- Easy-to-Adjust Detended Adjustment Knobs Offer Quick Adjustability without the Use of Tools
- Internal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40% of Travel

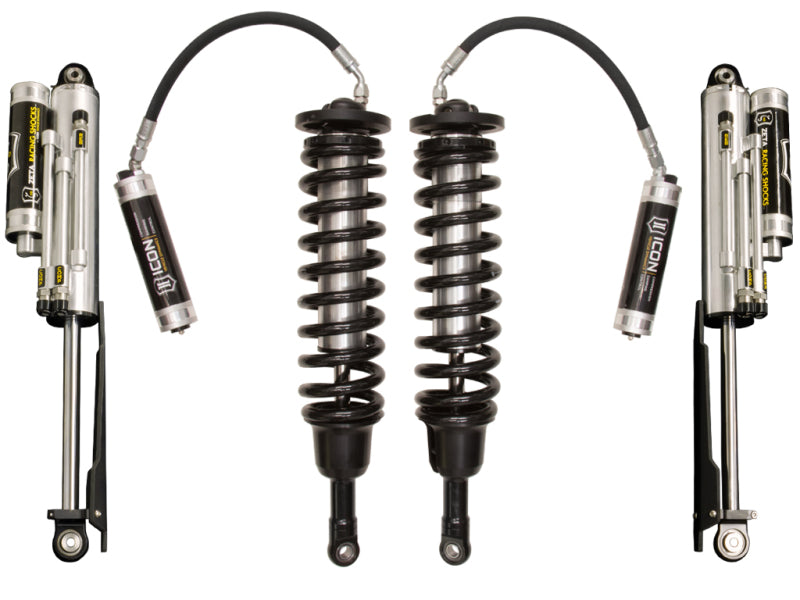

- 3.0 OEM Replacement Remote Reservoir Compression Adjustable Front Coil Over Shocks
- UHMH Machined Shaft & Rod End Protective Shin Guards Standard with Every Kit
- Multi Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod Ends
- Extended Droop Travel and Increased Overall Performance on and off road
- 3.0 OEM Replacement PiggyBack Reservoir Zeta 3 Tube Bypass Rear Shocks
- Com 12 PTFE Lined Bearings Ensure Maximum Strength and Durability
- Key Features of the Raptor Front 3.0 Coil Over Shock:
- Oversized 1” Heavy Duty CNC Machined Shock Shafts
- Key Features of the Raptor Rear 3.0 Bypass Shock:
- Adjustable Ride Height from 1 – 3” of Lift
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2010-2014 | Ford | F-150 | SVT Raptor |
